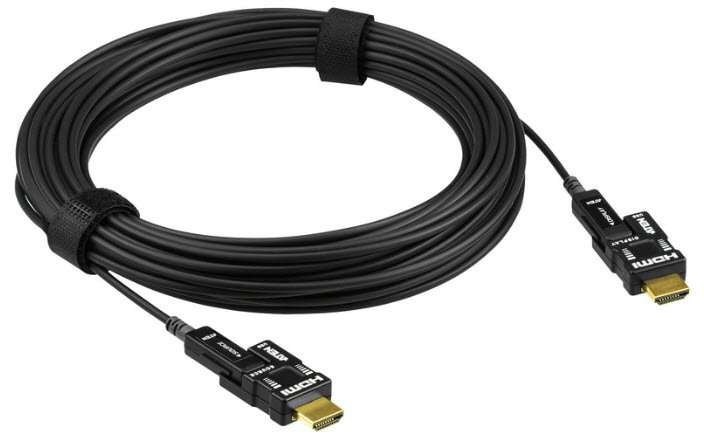

Aten VE7833 30M True 4K HDMI Active Optical Cable (True 4K@30m), Extends True 4K signals (4096 x 2160 @ 60Hz 4:4:4) up to 30 m, Reduced EMI and RFI for lower noise interference, Gold-plated connectors for reliable transmissions, Pluggable gender for easy installation
Overview:
ATEN VE7833 optical cable utilizes AOC technology that enables conversion between input signals and optical signals for optimum high bandwidth data transmissions. The EMI-resistant optical cable is available in 30 m with full support of True 4K resolutions. It is fully compliant with HDCP 2.2 standards and meets HDMI specifications including 3D, deep color, and data rates up to 18 Gbps. Supported Dolby True HD and DTS-HD Master Audio, the optical cable guarantees lossless audio signal transmissions. Engineered to meet the latest trend of integrator-friendly design, the VE7833 optical cable features pluggable gender and gold-plated connectors. Therefore, the cable is an ideal solution for extending the reach of your digital signage in a wide range of settings, such as traffic stations, shopping centers, and hospital facilities.
Features:
HDMI (3D, Deep Color, True 4K); HDCP 2.2 compliant
Extends True 4K signals (4096 x 2160 @ 60Hz 4:4:4) up to 30 m
Supports HDR
Reduced EMI and RFI for lower noise interference
Supports multi audio channel Dolby TrueHD and DTS-HD Master Audio
Robust cable pulling strength (Max.10 kg) and compression load resistance (Max.50 kg)

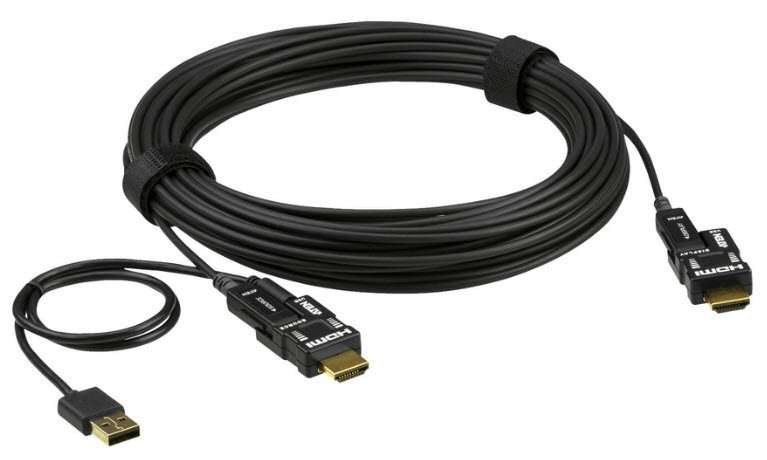

Additional power source is available via Micro USB cable for better compatibility
Gold-plated connectors for reliable transmissions
Compliant with International Flame Retardant Standards : UL CMP-OF (Plenum)

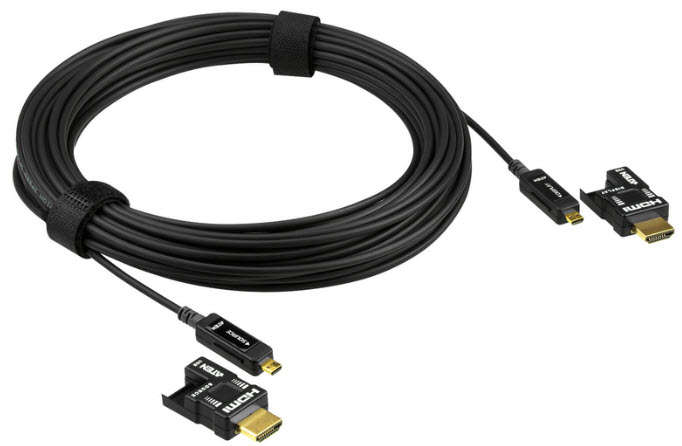

Pluggable gender for easy installation
Plug-and-play
Specifications:
Certifications
Certifications Safety and Emission: CE / FCC / RoHS2 / UL CMP-OF
Notification Bend Radius: 6mm (Min.)
Connector Pull Strength: Max. 10kg (100N)
Compression Load Resistance: Max. 50kg (500N)
Reduced EMI & RFI
Jacketed
Material UL Plenum (CMP-OF)
Conductor
Construction 6 x Insulated Copper wire (28 AWG)
4 x Fiber
Cable Length 30M / 98ft
Communication
Signals TMDS / HDCP 2.2 / EDID / CEC
Power (Optional) Optional power source: Micro USB to USB cable (45cm)
5V, 0.148A
Audio
Input PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio
Output PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio
Cable Type Cable Type: Hybrid optical with fiber and copper wire
HDMI Standards: High Speed HDMI Cable
Video Input
Interfaces 1 x HDMI 19-pin Type-A Male (gold-plated) pluggable (Black)
1 x HDMI Type-D Male (Black)
Video Output
Interfaces 1 x HDMI 19-pin Type-A Male (gold-plated) pluggable (Black)
1 x HDMI Type-D Male (Black)
Video
Max. Data Rate 18 Gbps (6 Gbps per Channel)
Max. Pixel Clock 600 MHz (Max.)
Compliance HDMI (3D, Deep Color, 4K, HDR)
HDCP 2.2
Color sub-sampling: 4:4:4 / 4:2:2 / 4:2:0
Color Depth: 30 / 36 / 48 bit
Max. Resolutions / Distance Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) / 30m
Power Consumption DC5.3V:0.63W:2.15BTU
Environmental
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Humidity 0 - 85% RH, Non-Condensing
Physical Properties
Housing Connector Case: ABS (Acrylonitrile Butadiene Styrene)
Weight 0.50 kg ( 1.1 lb )
Cable Outer Dimension Cable Outer Diameter: 3.4mm (± 0.2mm)
Conductor Gauge Copper wire (28 AWG)
Conductor Material Copper
Unit weight 0.5 kg / 1.1 lb
