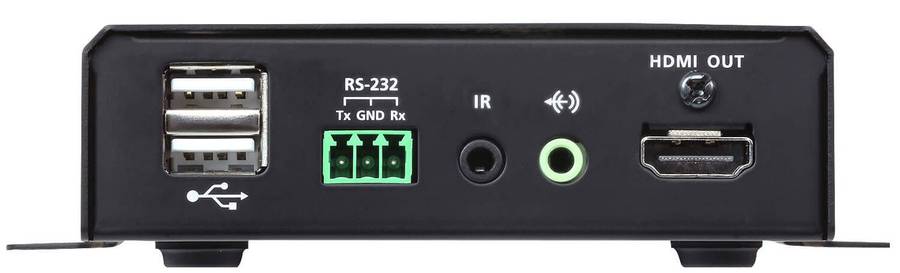

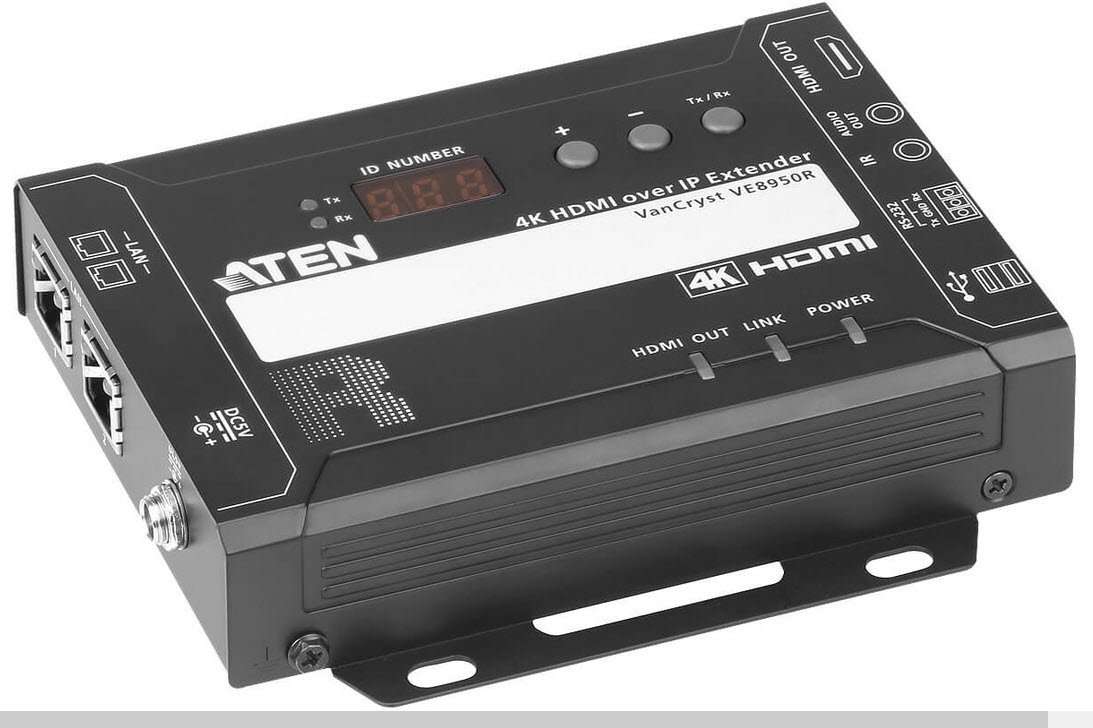

Aten VE8950R 4K HDMI over IP Receiver unit. visually lossless 4K AV signals with low latency over long distance via a local network of standard Gigabit network switch. NOTE: requires transmitter pair.Overview:The ATEN VE8950R Video over IP Receiver delivers visually lossless 4K AV signals with low latency over long distance via a local network of standard Gigabit network switch*.Engineered to meet today's demands of large scale, multi-display, 4K signal transmission, and designed to be easy to set up and operate, the VE8950R Video over IP Receiver is an ideal product for a wide range of environments, such as trade shows, airports, university campuses, conference centers, and shopping centers.Features:Lightweight Compression with Ultra-low LatencyDelivers visually lossless high-quality video up to 4K @ 30 Hz 4:4:4Ensures stunning quality video using ATEN advanced video lossless compression technologyEDID Expert selects the optimum EDID settings for smooth power-up, high-quality display and the best video resolution across different screensOffers different levels of video compression rate including Smooth, Balance, and High Quality for users to choose depending on practical usageLimitless Scalability and FlexibilityExtends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN without distance limitationsOffers multi-functionality in extender, splitter, matrix switch, video wall and daisy chain applicationsMix and match the latest 4K displays and 1080p screens. The built-in scaler automatically scales up incoming video signal to match the maximum resolution of the connected display devices*Collaboration with ATEN Control SystemIntegrated solution Compatible with ATEN Control System, allowing users to directly operate VE8950R via CLI Telnet or RS-232 protocolEffortless operation One click to effectively operate VE Manager, TV, projector, source player, and related equipments via touch panel and keypadSpontaneous Scheduling ManagementOffers an user-friendly scheduling management function for users to pre-plan the display scheduleProvides robust and intuitive scheduling management options to help users to manage all events in the calendar to as detailed as to setting events to minute intervalsIntegrates all VE89 units to arrange the profile by grouping individual receiver or video wallMultiple profiles can be arranged to play in any order over a selected period of timeNo Complicated IP SetupSimple configuration that requires no extensive IT experience or extra learningEffortlessly switches among input sources via top panel pushbuttonsWeb GUI-Based Management, No Additional Server PCs or Software RequiredSimple Access Without typing IP address on Chrome browser, users are allowed to directly link to VE Manager via one click on "Find My VE" Chrome based free toolGo Further For Less with Daisy Chaining*Connects multiple displays through a single port to utilize every port of the network switch and maximize their valueEasily expandable cabling and system deployment is easy with no huge network switches and fewer cables neededPerfect for large-scale deployment covering hundreds of meters, such as hotel facilities, airports, university campuses, stations, shopping malls, and exhibition centers* Depending on your network architecture, we recommend daisy chaining up to 30 units. Please contact ATEN representatives for more details.Video Wall SupportSupports up to 8 x 8 video wall (64 displays)*Supports horizontal or vertical (90° and 270° rotation) display orientationEasily switches layout profiles, preview and drag-and-drop video sources via the intuitive web GUI*Depends on your network architecture, please contact ATEN representatives for more details.Embedded / De-embedded Audio Supportaudio stream can be extracted from the HDMI stream and delivered as a separate audio signalMultiple Control ChannelsMultiple control methods the system can be managed via Ethernet or top-panel pushbuttonsUSB Connectivity USB port (USB 2.0) allows for connection of devices such as keyboard, mouse, flash drive, printer, and other USB peripherals*Bi-directional IR Channel IR transmission is processed one way at a timeRS-232 Channel bi-directional RS-232 serial port allows for connection of peripherals such as touch screens and bar code scannersNote: *Each VE8950T transmitter can be controlled by a total of 4 USB touch screens installed to VE8950R receivers.Specifications:Video OutputInterfaces 1 x HDMI Type A Female (Black)Impedance 100 Max. Distance 3 mVideoMax. Data Rate Average: 150 ~ 500MbpsCompliance HDMIHDCP CompatibleMax. Resolutions / Distance Up to 4K@100m (Cat 5e/6, point to point)*4K supported:4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)AudioOutput 1 x HDMI Type A Female (Black)1 x Mini Stereo Jack Female (Green)ConnectorsUnit To Unit 2 x RJ-45 FemalePower 1 x DC Jack (Black) with lockingControlIR 1 x Mini Stereo Jack Female (Black)RS-232 Connector: 1 x Terminal Block, 3 poleBaud Rate: 19200, Data Bits:8Stop Bits:1, no parity and flow controlUSB 2 x USB Type A Female (Black)PushbuttonsID Number Selection 3 x Push buttonsPower Consumption DC5V:4.53W:43BTUEnvironmentalOperating Temperature 0 - 40°CStorage Temperature -20 - 60°CHumidity 0 - 80% RH, Non-CondensingPhysical PropertiesHousing MetalWeight 0.49 kg ( 1.08 lb )Dimensions (L x W x H) with bracket 14.02 x 12.30 x 3.06 cm(5.52 x 4.84 x 1.2 in.)Dimensions (L x W x H) without bracket 13.60 x 10.10 x 2.96 cm(5.35 x 3.98 x 1.17 in.)Input Resolutions 640x480p @ 59.94/60Hz (4:3)720x480p @ 59.94/60/119.88/120/239.76/240Hz (4:3)/(16:9)1280x720p @ 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120 Hz (16:9)1280x720p @ 29.97/30/50/59.94/60/100/119.88/120Hz1920x1080i @ 50/59.94/60/100/119.88/120Hz (16:9)1920x1080p @ 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120Hz (16:9)720 (1440)x576i @ 50/100/200Hz (4:3)/(16:9)720 (1440)x480i @ 59.94/60Hz (4:3)/(16:9)720 (1440)x288p @ 50Hz (4:3)/(16:9)720 (1440)x240p @ 59.94/60/119.88/120/239.76/ 240Hz (4:3)/(16:9)720x576p @ 50/200Hz (4:3)/(16:9)720x576p @ 100Hz (16:9)1440x480p @ 59.94/60Hz (4:3)/(16:9)1440x576p @ 50Hz (4:3)/(16:9)(2880)x480p @ 59.94/60Hz (4:3)/(16:9)1680x720p @ 23.98/24/25/29.97/30/50/59.94/ 60/100/119.88/120 Hz2560x1080p @ 23.98/ 24/25/29.97/30/50/59.94/60Hz3840x2160p @ 23.98/24/25/29.97/30Hz (16:9)4096x2160p @ 23.98/24/25/29.97/30Hz
