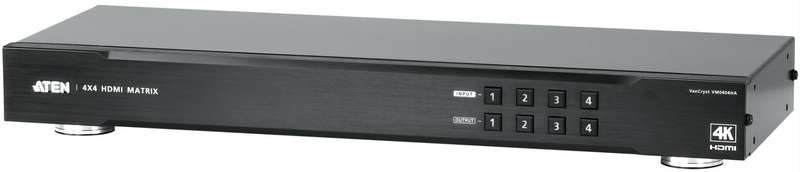

Aten VM0404HA 4x4 4K HDMI Matrix Switch
Overview:
The ATEN VM0404HA 4x4 4K HDMI Matrix Switch supports 4K resolutions of UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0). Ready for the future of highdefinition video switching, the VM0404HA is ideal for applications where the routing of 4K digital signals is required, such as in classrooms, auditoriums, department stores and more.
The VM0404HA matrix switch offers an easy and affordable way to route any of 4 HDMI video sources to any of 4 HDMI displays and can be operated through front-panel pushbuttons, IR remote and RS-232 control, ensuring optimum viewing and control of high-definition video.
Features:
Connects any of 4 HDMI sources to any of 4 HDMI displays
Supports 4K resolutions up to UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0)
EDID Expert selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens
Multiple Control Methods system management via front-panel pushbuttons, IR remote and RS-232 control
Supports Dolby True HD and DTS HD Master audio
Signaling rates up to 3.4 Gbits for fl awless 4K output
HDMI (3D, Deep Color, 4K) and HDCP 1.4 compatible
Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to a single remote control
Supports ATEN's LockPro HDMI cable lock for secure HDMI cable connections
ESD protection for HDMI
Firmware upgradeable
Rack Mountable (1U design)
Specifications:
Video Input
Interfaces 4 x HDMI Type A Female (Black)
Impedance 100
Max. Distance 1.8 m
Video Output
Interfaces 4 x HDMI Type A Female (Black)
Impedance 100
Max. Distance 15 m
Video
Max. Data Rate 10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock 340 MHz
Compliance HDMI (3D, 4K, Deep Color)
HDCP 1.4 Compatible
Consumer Electronics Control (CEC)
Max. Resolution Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Max. Distance Up to 15 m
EDID Settings EDID Mode: Default / Port1 / Remix
Control
USB 1 x Micro USB
F/W upgrade
RS-232 Connector: 1 x DB-9 Female (Black)
Baud rate and protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR 1 x Mini Stereo Jack Female (Black)
Physical Properties
Housing Metal
Weight 2.02 kg ( 4.45 lb )
Dimensions (L x W x H) 43.72 x 16.29 x 4.40 cm
(17.21 x 6.41 x 1.73 in.)
Connectors
Power 1 x DC Jack (Black)
Power Consumption DC5V:9.62W:45BTU
Environmental
Operating Temperature 0-40°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
