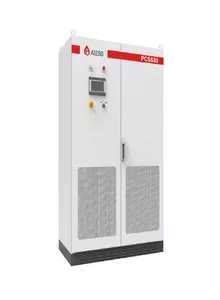

ATESS PCS 630kW Bi-directional battery inverter

Product Features:

• Bidirectional battery inverter.
• Flexible configuration with solar charger controller, bypass cabinet, rectifier cabinet or stand alone.
• AC coupling capabilities with PV inverters.
• Programmable working modes.
• Scalable allowing deployments in MW level system by paralleling multiple units.
• Parallel up to 4 PCS units.
• Touchscreen LCD for convenient parameter setting and maintenance.
• Overload capability of 110% for 10 minutes.
• 5-year product warranty.

External isolation transformer required for the system deployment.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Shumata Online Store will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Important

Please note that any loads with motors exceeding 7% of the selected inverter's power rating must be fitted with a VSD. The total connected inductive load without VSD's may not comprise more than 15% of the inverter's rated power.

Documents:

• Application Note DC Coupling System Model
• Application Note Inductive Loads Instructions
• Application Note Wiring diagram-Model
• Application Note Working mode of DC Coupled System
• CE Declaration of Conformity Atess
• CE Declaration of Conformity Atess Certificate of Conformity
• Data Sheet PCS100-1000
• IEC Certificate 2014/35/EU
• Installation Manual PCS100 - 630
• NRS-2017 Atess PCS
• Warranty Atess updated warranty card
