Magnification6-24
Objective Lens Diameter50mm

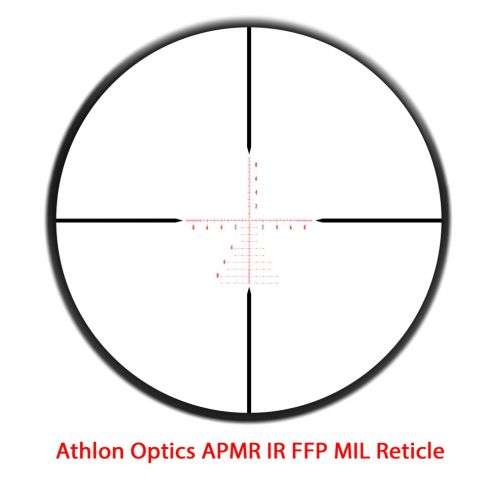

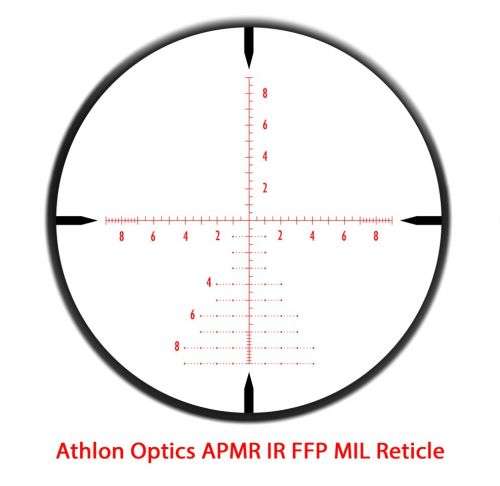

Reticle APMR FFP IR MIL, Glass Etched
Surface FinishMatte
Lens CoatingWide Band Fully Multicoated
Extra CoatingXtra Protective Coating
Tube Material6061 Aluminium
Tube Diameter30 mm
Exit Pupil 8.2-2.1 mm
Eye Relief3.3 inches
Field of View @100 yards16.7-4.5 feet
Click Value0.1MIL
Adjustment range per rotation5MIL
Total Elevation Adjustment18 MIL
Total Windage Adjustment18 MIL
Turret StyleExposed
Parallax AdjustmentSide Focus – 10 yards to infinity
Purging MaterialArgon
Length14.1 inches
Weight29.6 ounces
First Focal Plane ReticleFirst focal plane design allows you to fully utilize specially designed reticles that shrink or grow along with your target as you zoom in or out. These reticles offer quick target engagement at low power while offering precise holdover positions with finer details.
Illuminated ReticleThe illuminated reticle provides greater visibility during dusk and dawn and other low ambient light environment.
Etched Glass ReticleReticle etched on the glass that provides excellent backing support for complex reticle design and offers great durability and much higher shock resistance to recoil
Fully MulticoatedFully Multicoated optics effectively reduces reflected light and increases the transmission of light giving you a brighter image than normal single coated lenses
6061 T6 AluminumThe 6061T6 aircraft grade aluminum tube that has exceptional strength and superior mechanical integrity will protect these world class optics no matter what punishment you throw at it.
Heat Treated One Piece Tube ConstructionHeat treated one piece tube gives the scope extra strength over multi-piece tubes. A one piece tube also is better at keeping moisture out thus keeping your scope fog proof for the life of the product
WaterproofWaterproof to protect the scope in the harshest weather conditions or if accidentally submerged underwater
Fog proofFog proof to allow you to immediately engage your target when you take your rifle to cold ambient temperature from warm inside
ShockproofRobust mechanical system with special designs on both control and erector system that give you the ultimate recoil resistance to withstand 1000G recoil for 1000 times.
Argon PurgedArgon Purging uses the inertia gas with bigger size molecules to purge any moisture out of the tube giving you better waterproofing and thermal stability .
ATHLON LIFE TIME WARRANTY
Your Athlon product is not only warranted to be free of defects in materials and workmanship for the lifetime of the product. Athlon will also repair or replace, at no charge to you, your product if you should damage it through normal use. No receipt needed, no registration required. This is a commitment that Athlon will be the best product you can buy for your money.
*This warranty does not cover damages caused by deliberate damage, misuse, theft or maintenance provided by someone other than the Athlon Authorized Service Department.
* Please note that any altering of the products, such as cerakote coatings or spray painting, will void the warranty.
