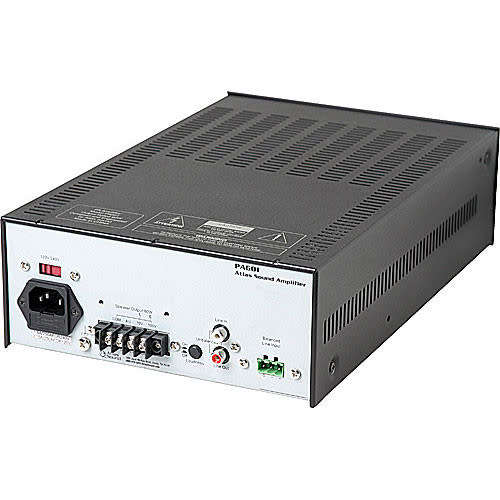

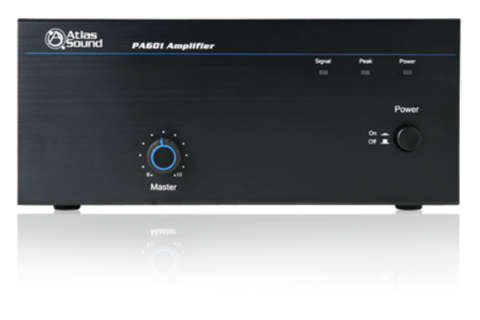

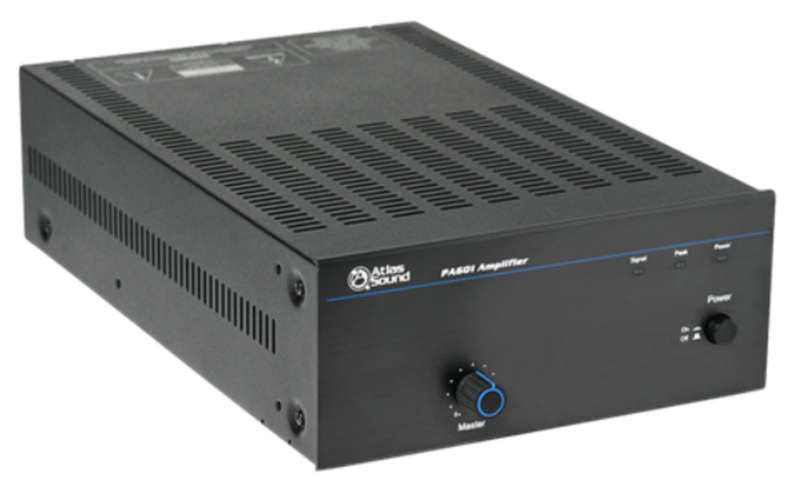

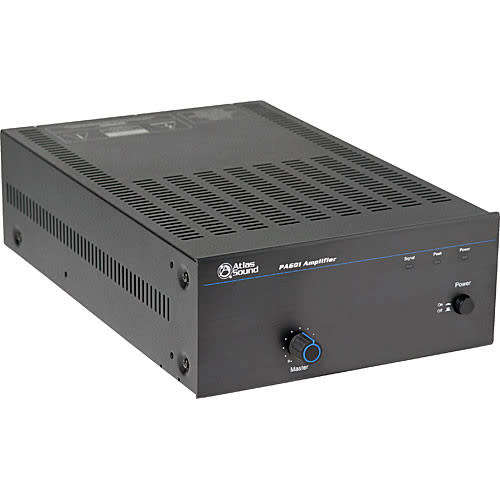

Atlas Sound PA601 60 Watt

Single Channel Power Amplifier

Atlas Sound's PA601 is a single-channel 1x1 power amplifier.

This device features 1 balanced or unbalanced input and 1 unbalanced line output as well as a terminal block speaker output.

The PA601 is a perfect fit in professional AV systems that require distributed business paging capabilities as well as those that use background music systems.

Specifications:

    4Ohms: 60W RMS
    70V: 60W RMS
    100V: 60W RMS
    Frequency Response
    50Hz-20kHz THD+N
    0.5% or less, at 1kHz, rated output
    0.1% or less, at 1kHz, 5W output
    Sensitivity
    Balanced Line (Phoenix): 500mV ( 6dBV) 20kOhms
    Unbalanced (RCA): 500mV ( 6dBV) 20kOhms
    Outputs

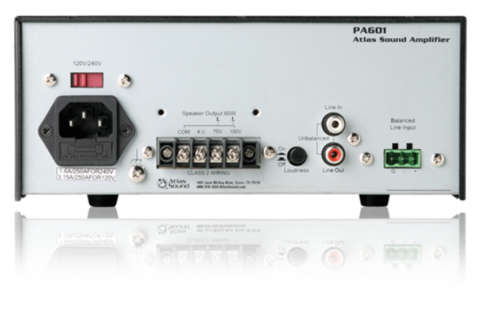

    Main: Transformer coupled, balanced, 4Ohms, 70.7V, and 100V
    Line Out: Unbalanced 600Ohms
    Output Regulation
    Less than 2dB, no load to full load
    Signal to Noise Ratio
    Balanced Line: >55dB
    Unbalanced: >75dB
    EQ Loudness Contour
    Bass: +4dB @ 100Hz
    Treble: +4dB @ 8kHz
    Indicators: Power, signal, peak
    Power Consumption: 120VA
    Dimensions: 210mm x 93mm x 357mm
    Weight: 6.58kg

This was a shop display model and comes without original box or instruction manual

Please Note:  I will be going on leave on Tuesday so please make payment as soon as possible after winning the bid in order for me to send your parcel on Monday morning

PLEASE DO NOT BID IF YOU DO NOT INTEND PAYING.  IF YOU DO NOT PAY  I WILL RELIST THE ITEM, FILE AN SNC AND GIVE YOU A NEGATIVE RATING.
