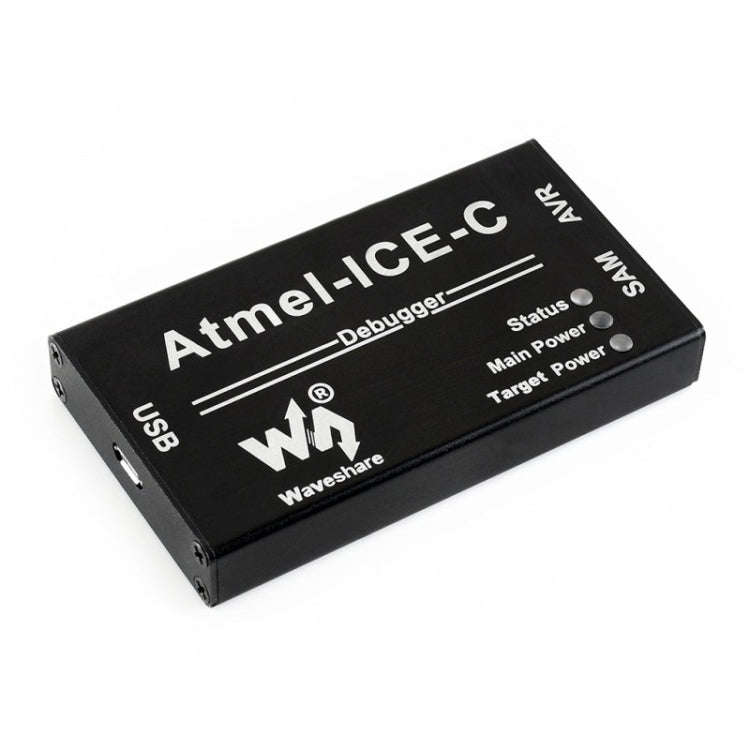

Atmel-ICE-C Kit Original PCBA Inside Full Functionality Cost Effective Development Tool for Atmel...
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
ZY23192100
Bob Shop ID
603965368
Overview

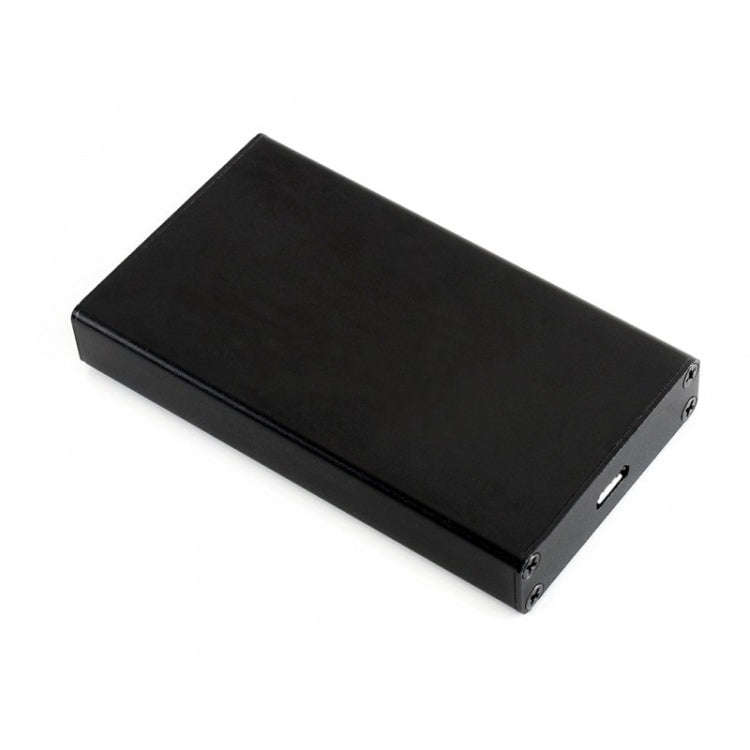

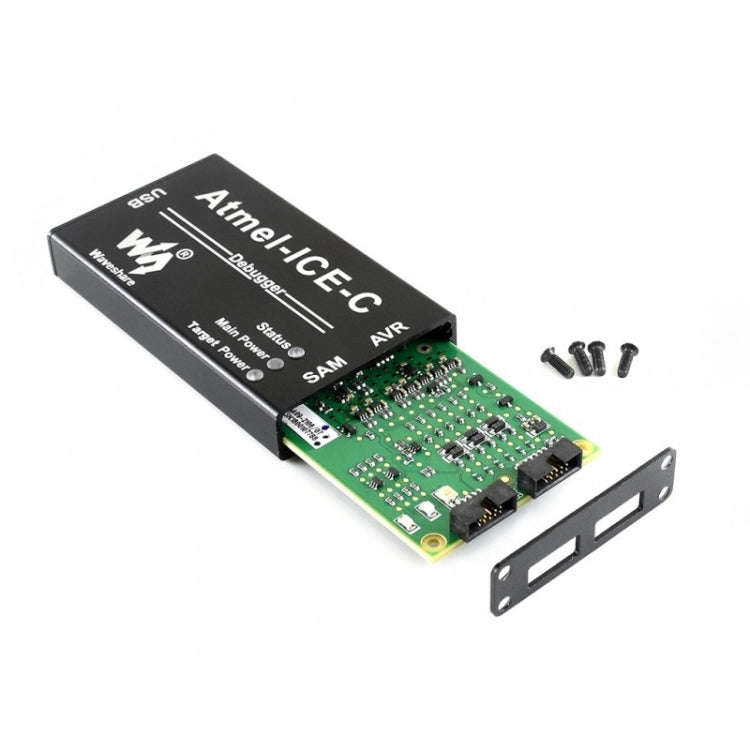

1. Atmel-ICE-C is the cost effective solution for the powerful Atmel-ICE, it adopts the original ATMEL-ICE-PCBA and comes with a durable aluminium alloy enclosure.
2. Atmel-ICE-C delivers the same functionality and usability just as the ATMEL-ICE Full Kit, it is capable of debugging and programming Atmel ARM Cortex -M based Atmel SAM and AVR microcontrollers with on-chip debug capability.
Key Features
1. Support JTAG, SWD, PDI, TPI, aWire, SPI and debugWIRE interfaces
2. Full source-level debugging in Atmel Studio
3. Support all built-in hardware breakpoints in the target microcontroller (number depends on the OCD module in the target)
4. Up to 128 software breakpoints
5. 1.62 to 5.5V target operation
6. USB powered
7. Provides both ARM Cortex Debug Connector (10-pin) pin-out and AVR JTAG connector pin-out
Supported Software
1. Support Atmel Studio 6.2 or higher version
2. Directly supports ICC8AVR or higher version
3. Support programming HEX files generated by ICCAVR, CVAVR, IAR, etc.
Supported Devices
1. Programming and on-chip debugging of all Atmel AVR 32-bit MCUs on both JTAG and aWire interfaces
2. Programming and on-chip debugging of all Atmel AVR XMEGA family devices on both JTAG and PDI 2-wire interfaces
3. JTAG and SPI programming and debugging of all Atmel AVR 8-bit MCUs with OCD support on either JTAG or debugWIRE interfaces
4. Programming and debugging of all Atmel SAM ARM Cortex-M based MCUs on both SWD and JTAG interfaces
5. Programming of all Atmel tinyAVR 8-bit MCUs with support for the TPI interface
6. For more details, please visit UC3, Mega, SAM , Tiny, Xmega
Specifications
1. INTERFACE VOLTAGE: 1.62V ~ 5.5V
2. JTAG CLOCK: 32kHz ~ 7.5MHz
3. PDI CLOCK: 32kHz ~ 7.5MHz
4. DEBUGWIRE BAUDRATE: 4kbit/s ~ 0.5Mbit/s
5. AWIRE BAUDRATE: 7.5kbit/s ~ 7Mbit/s
6. SPI CLOCK: 8kHz ~ 5MHz
7. SWD CLOCK: 32kHz ~ 2MHz
8. PC INTERFACE: USB 2.0 high speed

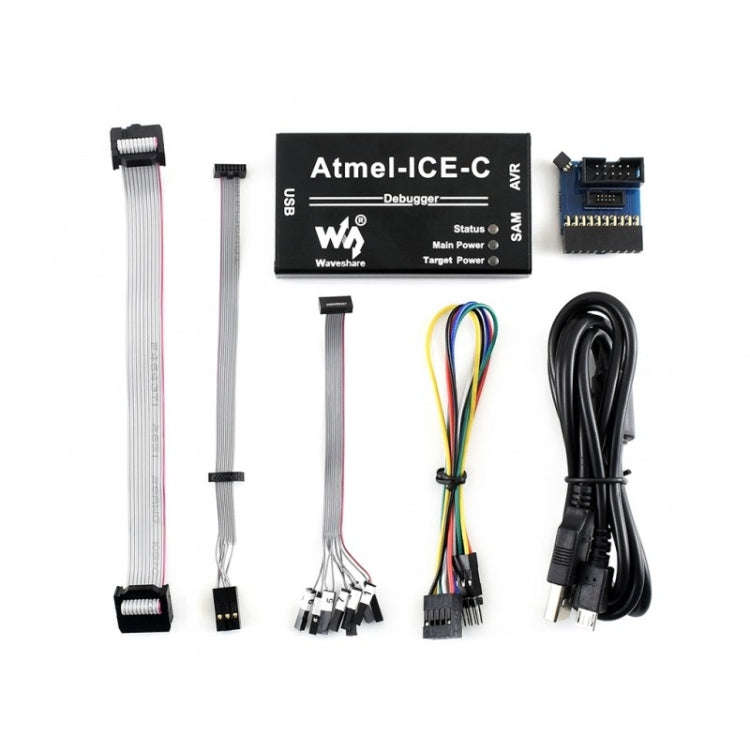

Package list
1. Atmel-ICE-C unit x1
2. USB type A plug to micro B plug cable x1
3. IDC flat cable with 10-pin 50-mil connector and 6-pin 100-mil connector x1
4. Multi-functional adapter board x1
5. 10pin flat cable x1
6. 10pin 100mil squid cable x1
7. 6-pin to 10-pin ISP cable x1
