Atomos AtomX CAST for Ninja V

The Atomos AtomX CAST for Ninja V is a modular companion for the Atomos Ninja V monitor-recorder that uses the AtomX expansion port on the Ninja V.

The Atomos AtomX CAST for Ninja V is a modular companion for the Atomos Ninja V monitor-recorder that uses the AtomX expansion port on the Ninja V to transform it into an advanced multi-input switcher.

The Atomos AtomX CAST for Ninja V takes its name from "broadcast", and it allows you to switch up to four HDMI video sources and output it to a variety of destinations such as an external monitor, a recorder, a separate switcher, or to a live streaming computer. Applications include corporate, house of worship, event, family, or studio production environments. Ninja V+ compatibility is expected by the end of 2021.

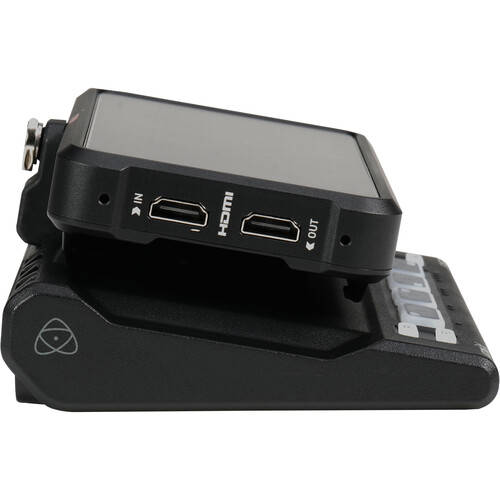

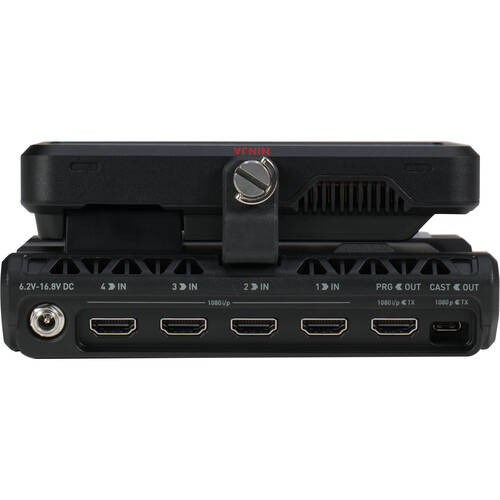

The Atomos AtomX CAST for Ninja V is specially designed to mount onto the back of the Ninja V monitor, and it provides four HDMI inputs that support a mix of different resolutions up to 1080p60. The touchscreen monitor can view a single image, Picture-in-Picture, or 4-Up modes, and you can also add logos and graphic overlays. It can send Program, Preview, Picture-in-Picture, and 4-Up displays to the HDMI output. You can select the source for monitor/output using the four source buttons, and you can also select the source using the monitor touchscreen. There are also four programmable function buttons to perform specific shortcuts.

The monitor allows you to preview your broadcast while simultaneously outputting to a recorder, a monitor, a projector, or when using the optional AtomX Connect for live streaming using a computer. It also supports recording output to ProRes and Avid DNx formats. It is compatible with most streaming platforms such as Skype, Zoom, Teams, and more using UVC with the included USB Type-C cable. The Atomos AtomX CAST for Ninja V is powered using the power adapter included with your Ninja V, and it passes the power onto the monitor through the battery mount.

Note:

This unit is not yet compatible with the Ninja V+ model.

Key Features

• Docking station that mounts onto the back of Atomos Ninja V monitor
• Switches up to four HDMI inputs to one HDMI output
• Switch progressive and/or interlaced video sources of mixed resolutions and frame rates up to 1080p60
• Overlay logos, lower thirds, graphics
• Can be used with the Atomos Connect module for live streaming with UVC

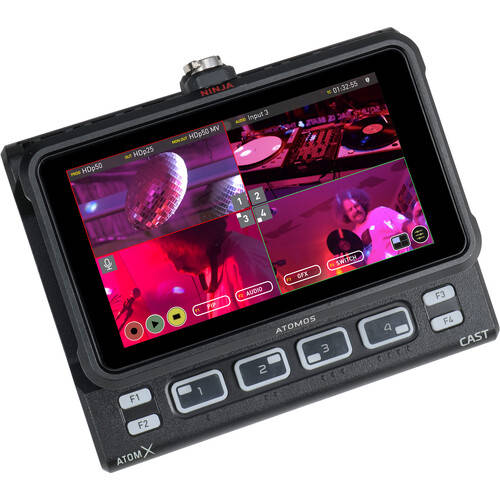

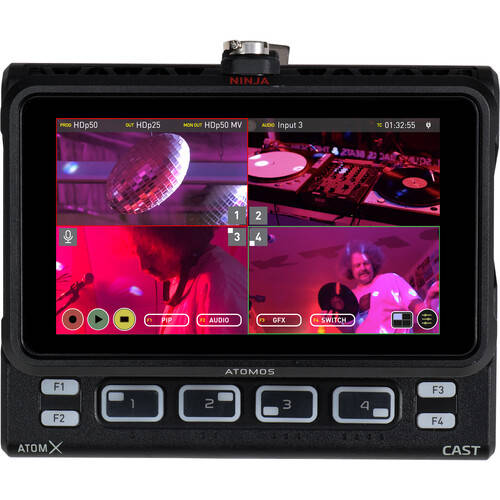

• View single image, Picture-in-Picture, or 4-Up display on Ninja V monitor
• Can output mirror, Preview, Program, Picture-in-Picture, or 4-Up via HDMI
• Simultaneously record, stream, and monitor
• Source select buttons or can use the monitor's touchscreen to select source
• Applications
• Live streaming
• Simultaneously recording live events
• Multi-camera productions
• Corporate events and meetings
• Music, awards, and performance events
• Weddings and family events
• Compact Quad HDMI Docking Station
• Converts Ninja V Monitor into Switch
• 4 x HDMI Inputs, Source Select Buttons
• Graphic Overlays, PiP, Streaming Output
• Mixed Resoultion Output up to 1080p60
• Convert Progressive & Interlaced
• Mirror, Program, Preview, 4-Up Display
• UVC/Live Streaming with AtomX Connect
• Can Also Select with Monitor Touchscreen
• Output to Recording Device Supported

In the Box

• Atomos AtomX CAST for Ninja V
• USB Type-C Cable
• AtomX SSD Mini Handle
• Limited 1-Year Warranty
