The Atomos Ninja 5.2" 4K HDMI Recording Monitor features an updated operating system featuring HDR monitoring and RAW recording capabilities.
The Atomos Ninja 5.2" 4K HDMI Recording Monitor features an updated operating system featuring HDR monitoring, and RAW recording capabilities, can record ProRes RAW up to 6K, and supports DCI 4K HDMI, with compatible cameras.
The Atomos Ninja 5.2" 4K HDMI Recording Monitor can easily be integrated into your existing setup as it is compatible with most Atomos Monitor accessories.
AtomOS 11 Operating System
The AtomOS 11 Operating System was built for the Atomos Ninja 5.2" 4K HDMI Recording Monitor, offering new features, and an improved icon interface.
Focus Peaking, Zoom, Atomos, ARRI False Colour, EL Zone colourized exposure, Safe Areas, RecordAssit, PlayBackAssist, SegmentPro, and Cine Guides are among the many Monitor assist functions available.
The AtomHDR processing engine allows for real-time Log to PQ/HLG previewing.

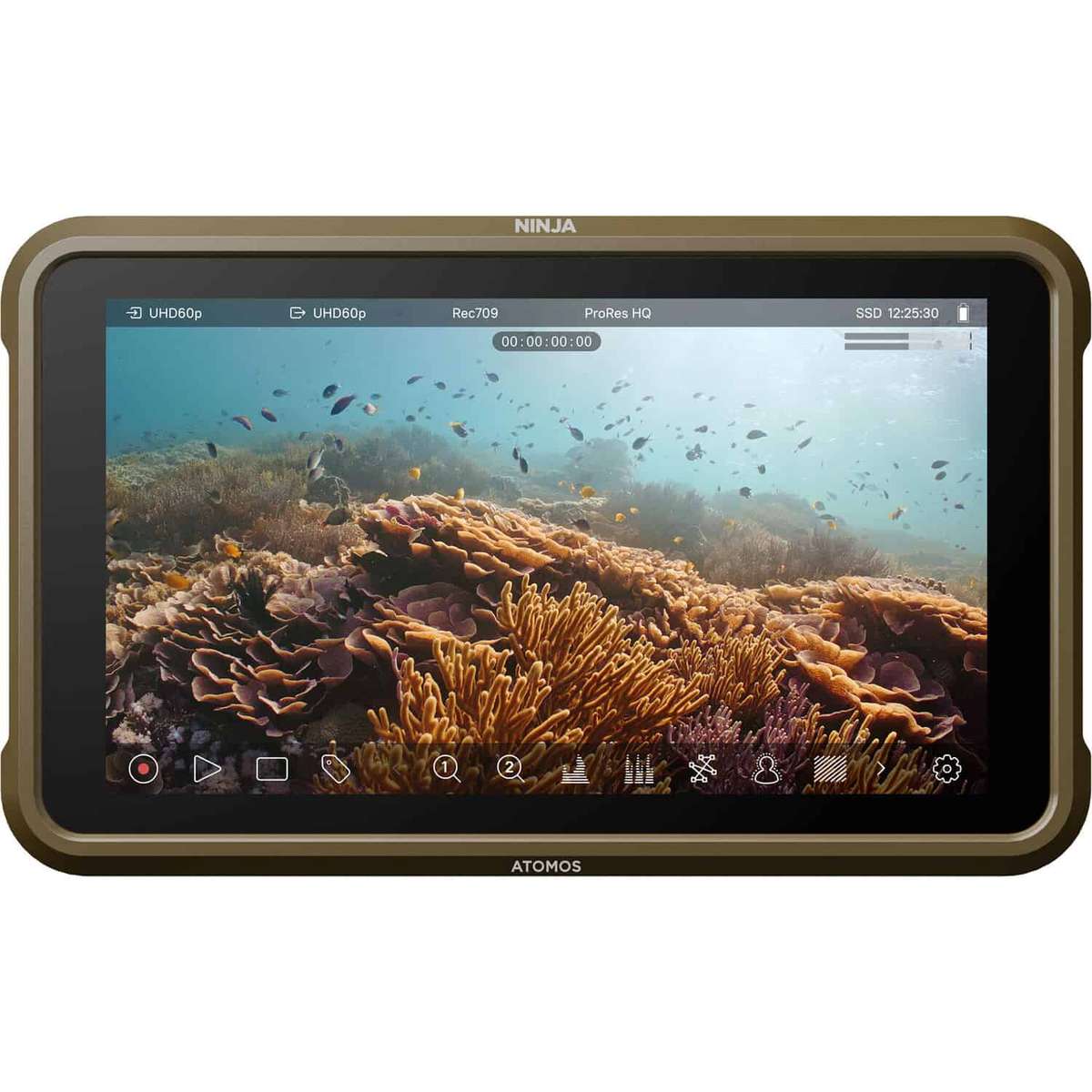

5.2" Touchscreen Display
The 5.2" IPS screen provides you with 1920 x 1080 resolution, with 1000 cd/m2 that allows you to operate the screen in daylight.
For high-quality monitoring of your footage, 10-bit colour processing, Rec.709 colour gamut, and Calibrite Display Plus/Pro support are offered.
Comprehensive Colour
The Monitor supports select log formats from all major brands, these include Sony, Canon, ARRI, RED, Nikon, and Fujifilm. Additionally, custom 3D LUTs can be uploaded and output HDR conversion to Log, HLG, PQ, or Dolby Vision formats.

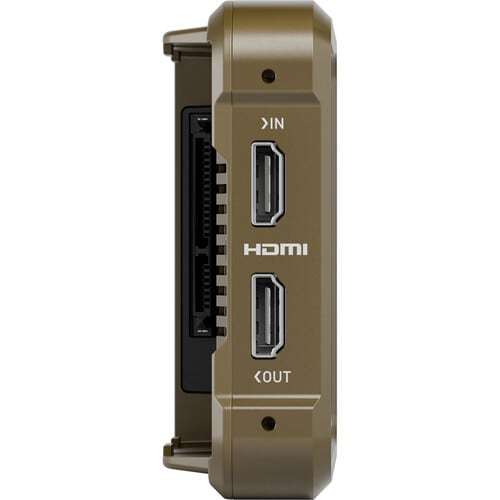

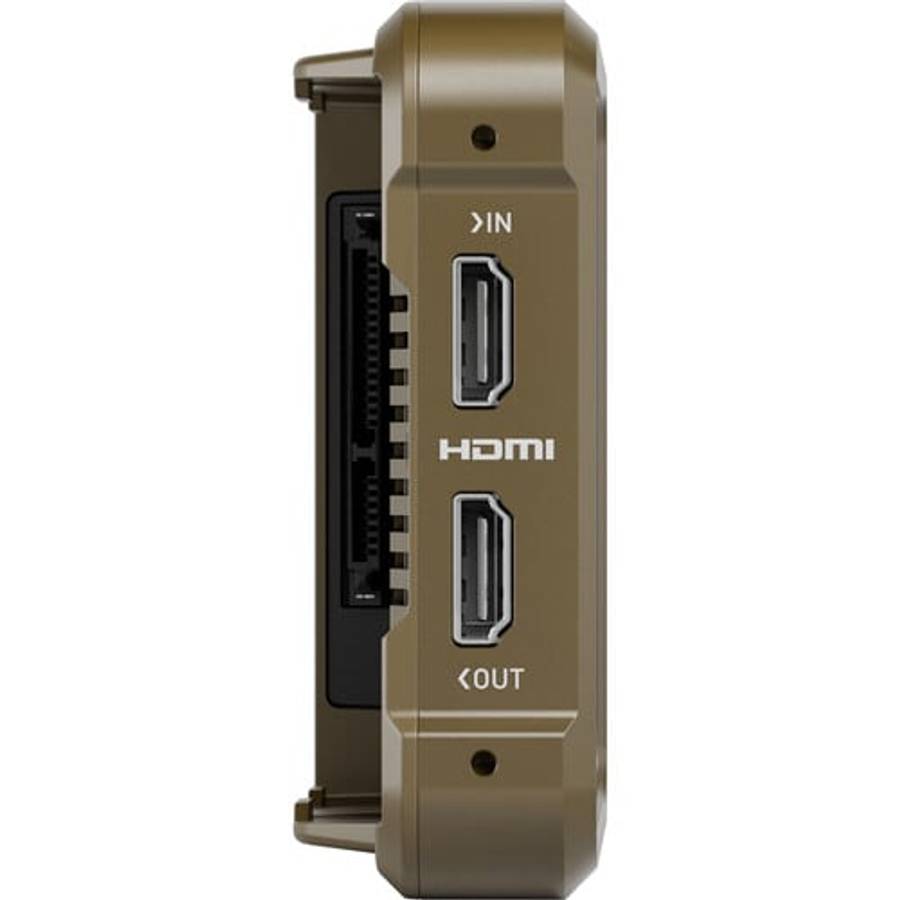

HDMI Interface, ProRes RAW Recording
Both the input and output ports support up to DCI 4K video at 60 fps in all modes. 3.5K RAW at 60 fps footage is supported with select cameras.
Over 55 different cameras support RAW recording over HDMI with the Ninja up to 6K at 30 fps.
Power Options

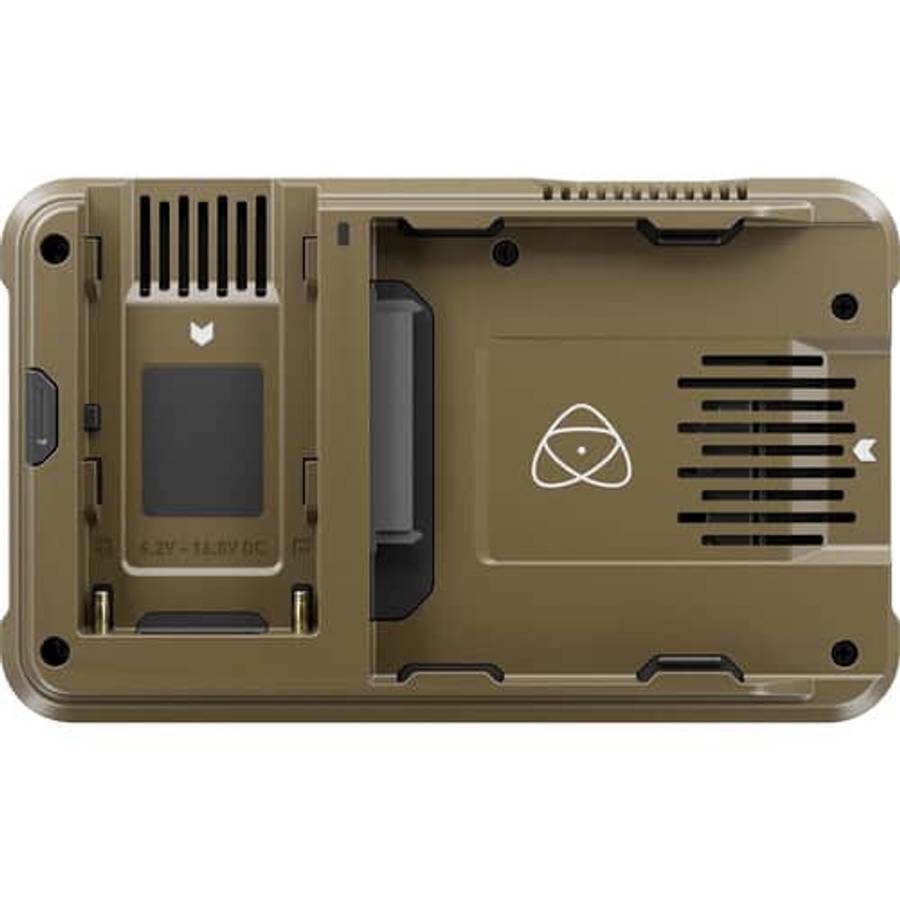

It features an L-Series battery plate at the back of the Monitor that supports NP-F L-series batteries outputting 5.8 to 7.2V.
A USB-C port can also be found that supports 30W PD power delivery with the included cable.
DC power sources can also be used with the included dummy eliminator.
Control Options
Intuitive onboard control is made possible with multifunctional control buttons on the touchscreen interface.
With Atomos Open Standard, an auto HDMI camera trigger is supported by Canon and Sony cameras.
Features
- 1920 x 1080 Touchscreen Display
- 10-Bit Exterior Viewable Monitor
- 4K HDMI 2.0 Input/Output
- 6K30 ProRes RAW with Select Cameras
- AtomOS 11 Operating System
- 1000 cd/m² Brightness
- Supports Multiple Log Formats
- ProRes and DNxHR/HD Recording
- Record to Master Caddy II/III Hard Drive
- L-Series Battery Slot, USB-C Port
In the box
- Atomos Ninja 5.2" 4K HDMI Recording Monitor
- Battery Eliminator
- USB-C PD to 2.1mm DC Power Cable
