Images are for illustrative purposes and camera shown is not included.

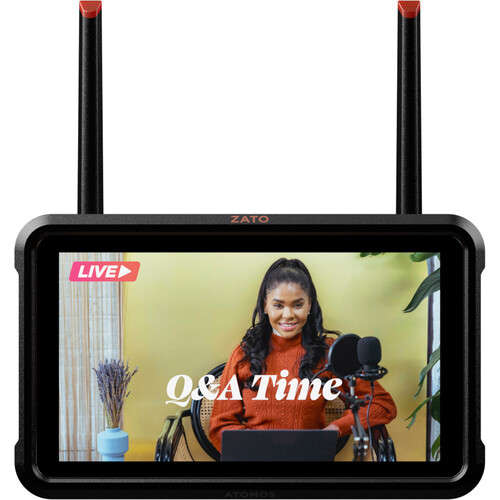

The Atomos ZATO CONNECT 5.2" Video Monitor & Recorder has a 5.2" 1920 x 1080 Touchscreen Display that works as a gateway to the ATOMOS Cloud Studio.
The Atomos ZATO CONNECT 5.2" Video Monitor & Recorder has a 5.2", 1920 x 1080 Touchscreen Display that works as a gateway to the ATOMOS Cloud Studio.
The Atomos ZATO CONNECT 5.2" Video Monitor & Recorder simultaneously Streams and Records HDMI and USB Video.
Key Features
- 5.2", 1920 x 1080 Touchscreen Display
- 1000 cd/m² Brightness
- 2 x HDMI, 2 x USB Type-C
- Record up to 1080p60 HDMI Video, 1080p30 USB Video
- Wi-Fi 5, Gigabit Ethernet
- Simultaneous Record and Stream Video
- Audio Mixing Capabilities
- ATOMOS Cloud Studio, AtomOS Lite
- Power via L-Series Battery or USB Input
The Atomos ZATO CONNECT 5.2" Video Monitor & Recorder has a 1920 x 1080 resolution, and the 5.2" Touchscreen Display works as a gateway to the ATOMOS Cloud Studio software thanks to its Wi-Fi 5, Gigabit Ethernet, and cellular hotspot connectivity.
This allows you to fully customize your Live Streaming experience by switching between Video sources and Mixing different Audio sourcesall with a single, compact device small enough to mount on a DSLR camera rig.
6 Months FREE Camera-to-Cloud Paid Plan
By purchasing and registering this Atomos product between 22 February until 31 March 2024, you will receive a complimentary six-month Camera-to-Cloud Paid Plan on Atomos Cloud Studio.
This plan grants access to a range of premium features, including selectable proxy and Stream resolutions (720p, 1080p & 4K), customizable bit depth and bitrate settings, and seamless uploading of C2C files during recording, optimizing workflow efficiency.
Users can choose between Atomos Edit, Frame.io, and Sony Ci Media Cloud as their preferred destination, ensuring seamless compatibility with existing workflows and collaboration tools.
Don't miss outseize this opportunity to receive the best in Ninja technology today!
Camera to Cloud Machine
Stream directly to the Cloud and edit Video for posting later, thanks to the Adobe Camera to Cloud integration powered by Frame.io.
Upload local H.264 backup to an SD card up to 128GB or to the Cloud for real-time collaboration.
The Atomos ZATO CONNECT 5.2" Video Monitor & Recorder supports HDMI and USB UVC cameras and Video sources and can convert them into formats compatible with Microsoft Teams, like Slack, Zoom, and other conferencing software.
Stream from Anywhere
Equipped with Wi-Fi 5 and Gigabit Ethernet via USB-C, the Atomos ZATO CONNECT 5.2" Video Monitor & Recorder can easily connect to your home/work network or cellular hotspot for Live Stream connectivity virtually anywhere.
Stream to Facebook Live, Twitch, or YouTube with ATOMOS Cloud Studio and combine recorded sources with Live content.

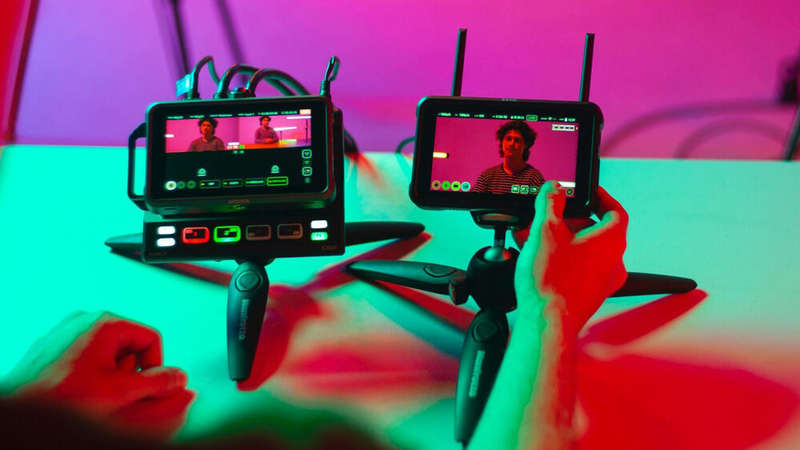

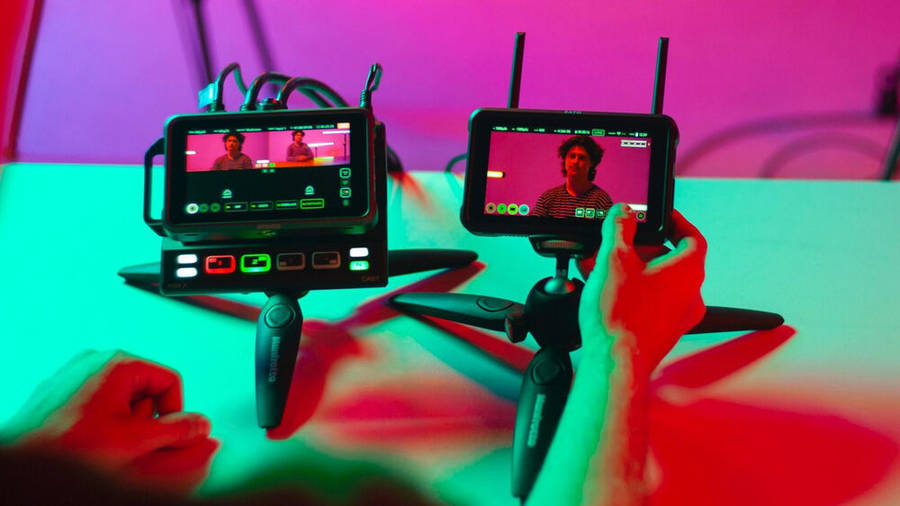

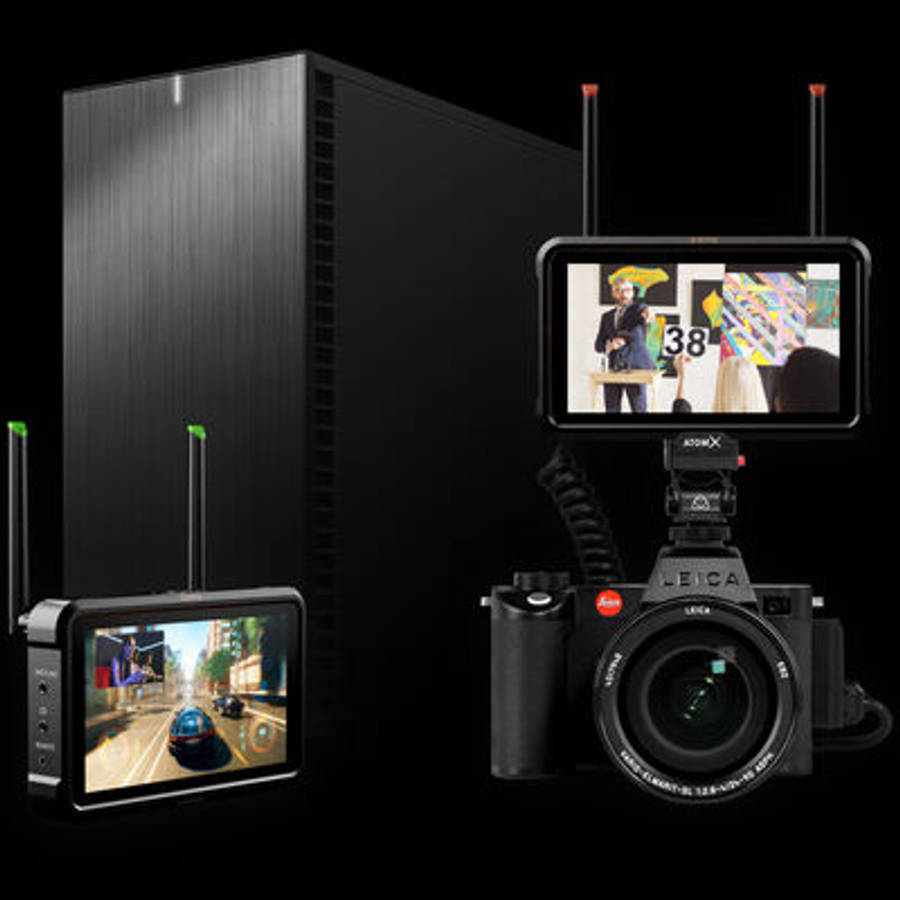

Mount it on top of your camera or integrate it into your switcher configuration.

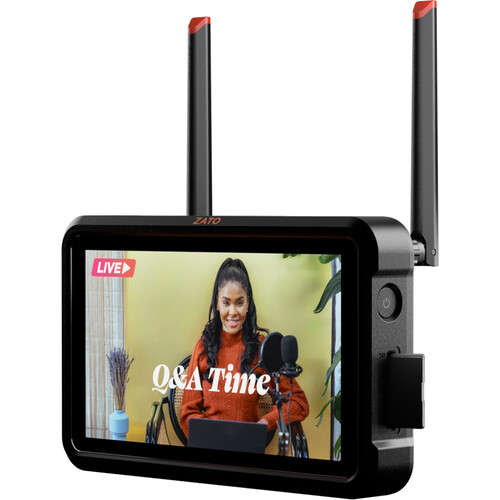

The monitor features a 5.2" SuperAtom IPS LCD panel with capacitive touch.
Footage remains visible in both indoor and outdoor applications with the 178° viewing angle and 1000 cd/m² Brightness.
Comprehensive I/O

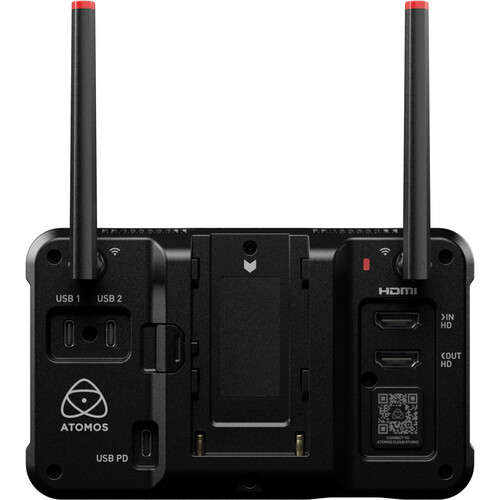

One HDMI input, one HDMI output, and two corresponding USB Type-C ports can transform various Video equipment into Live Stream or webcam sources.
The Atomos ZATO CONNECT 5.2" Video Monitor & Recorder can record up to 1080p60 HDMI Video and up to 1080p30 USB Video.
An L-series battery plate at the back of the Monitor is compatible with batteries up to 7.6V.
Power can also be delivered via USB-C PD input, DC input via locking DC jack on a separately available battery eliminator, or D-Tap via a separately available cable.

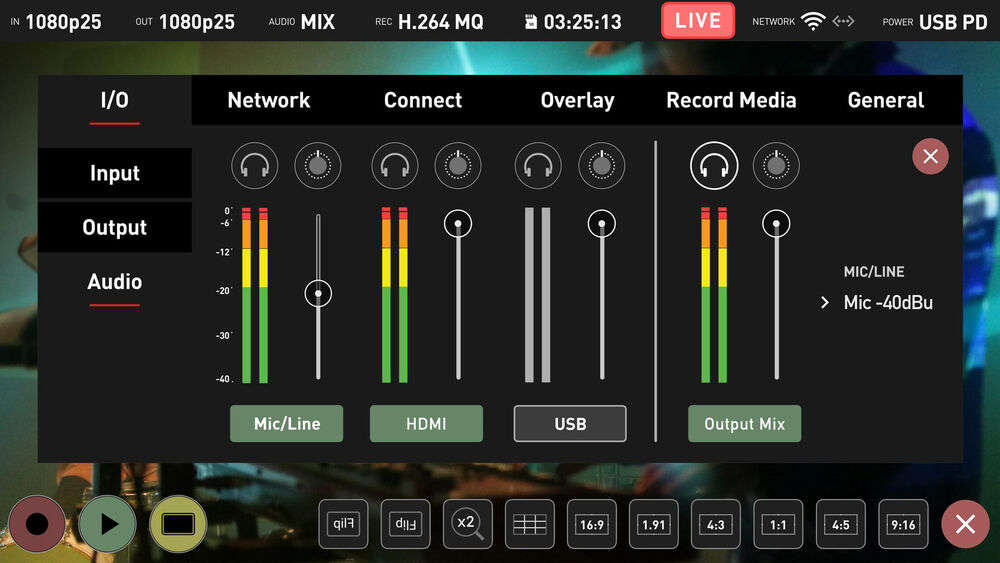

Built-In Audio Mixer

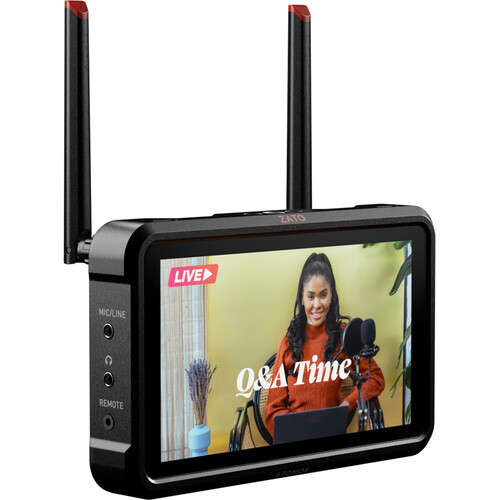

One 3.5mm Audio input integrates a microphone or line source, which can be easily mixed with the embedded HDMI or USB signals thanks to ZATO's Audio Mixer.
Play back Audio from recordings on the inserted SD card with these inputs into a single stereo track.
Volume is adjusted independently and monitored via headphone output.

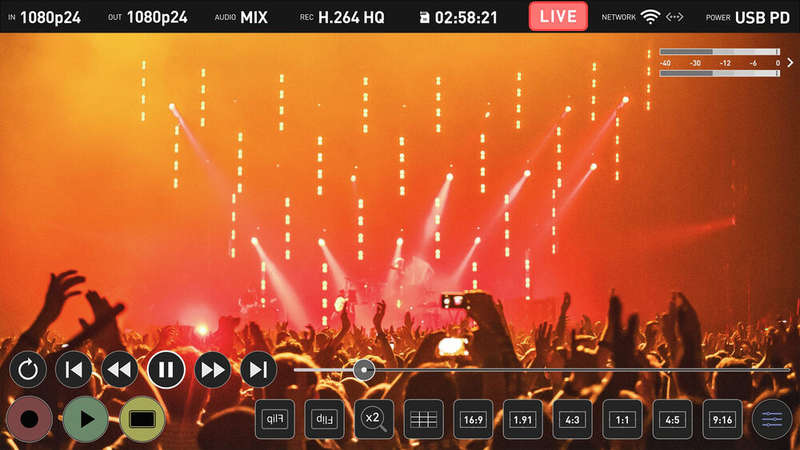

AtomOS Lite Software
- Configure Streams, switch between sources, record and playback Video, mix Audio, and add effects
- Key tools like overlay effects, image zoom, and frame guides

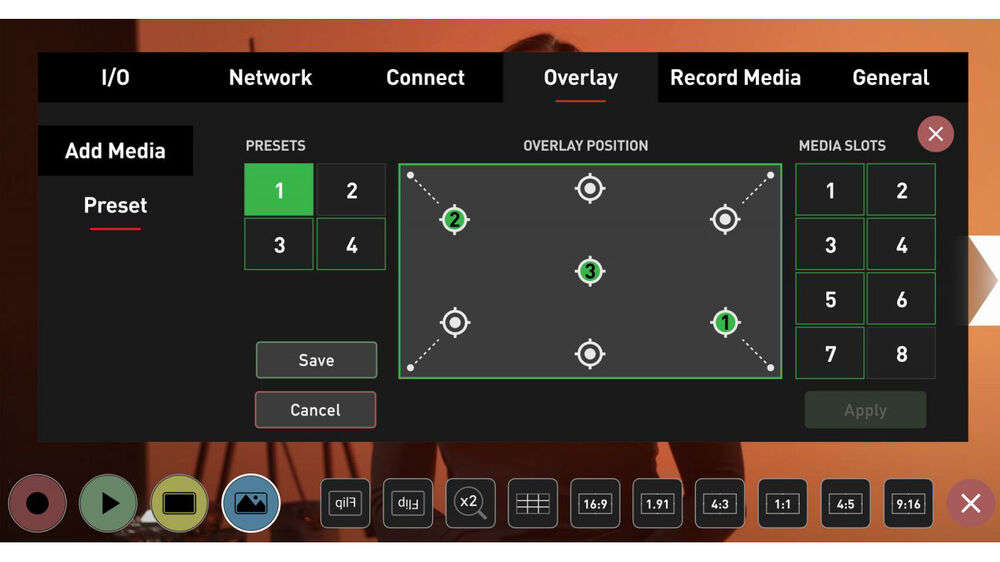

- Add graphic overlays to Streams or watermark recorded content
Monitor Assist Functions
- Display flip (vertical and horizontal)
- Frame guides (1:1, 4:3, 4:5, 9:26, 16:9, 1.91)
- Grid markers (9 grid)
- Zoom (tap to zoom)
In the Box
- Atomos ZATO CONNECT 5.2" Video Monitor & Recorder
- 2 x Wi-Fi Antenna
- White Antenna Cap
- Red Antenna Cap
- Yellow Antenna Cap
- Black Antenna Cap
- Green Antenna Cap
- 2 x Antenna Top Cap
- 2 x Antenna Mount Cover
- USB Type-C to USB Type-C Cable
- Antenna Storage Pouch
- Screen Cloth
- Limited 1-Year Manufacturer Warranty
Not in the Box
- Essential Recording Media (Not Included)
- User Manual
