Description:

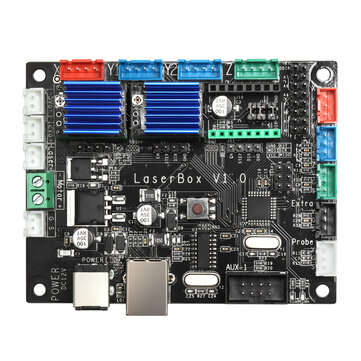

The Laser Box motherboard is suitable for DIY machines such as laser engraving machines, CNCs, and writing robots. It has the advantages of complete interfaces, strong scalability, and compatibility with GRBL open source firmware. It is very suitable for DIY players.
?
Feature:
1. Support GRBL open source firmware, suitable for laser engraving machine, CNC, writing robot.
2. Connect to a computer via a USB cable and engrave online. It can also be extended to connect to the serial port screen to realize offline engraving.
3.3-axis drive interface, support A4988, TMC2225, TMC2208 and other drive chips, can drive 2-phase 4-wire stepper motors.
4. Reserve multiple IO ports, free to expand more functions.
?
Specification:
General specifications | |
Brand | Atomstack |
Product name | Laser Box |
Model | LaserBox V1.0 |
Product size | 90mm*70mm |
Technical Parameters | |
Input voltage | 12V 5A |
Power interface | DC5.5-2.1 |
Operating system | WIN7/8/10 |
Drive type | A4988 |
Maximum drive current | 2A |
Motor type | |
