Features:
￢ﾖﾶ Strong Compatibility:ￂﾠThe M100 laser module can be installed on any engraving machine model of Atomstackￂﾠ5Wￂﾠseries and 10W series (A10Pro/S10Pro/X7Pro), just use the corresponding adapter board, and it can be used without any additional settings. Comes with aￂﾠ free adapter in the box, the las er module is compatible withￂﾠOrtur, NEJE, Two-Trees engraver as well.
￢ﾖﾶ High Energy and Faster Speed: 20W laser power engraver. The laser output power soars up with the latest generation of four 6W laser coupling technology, which is able to cut off 12-15mm thick tungsten board as well as the 8mm thick black acrylic board with only one pass, and even cut the 0.05mm thick stainless steel sheet.
￢ﾖﾶ Upgraded Laser: No need to adjust the focus before engraving. The focusing spot area is only 1/3 of other ordinary lasers. Combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.
￢ﾖﾶ Air Assist Kit: 10-30L/min adjustable airflow, can effectively remove the smoke and dust generated in the process of laser cutting/engraving, prevent the smoke and dust from causing laser energy attenuation, ensure the stability of laser energy, and make your engraving / engraving Cut pieces for best results.
￢ﾖﾶ Great Quiet Working Performance: Only 60dB noise is generated during the working process, which is similar to the volume of household electric fans when working, giving you a quiet laser engraving and cutting environment. Easy to install and use, no need to buy additional accessories, just two steps to install and use.
￢ﾖﾶ Various Material to Cut and Engrave: Engravable materials are including wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplating layer and lacquered metal, after blackening Utility knife. Cuttable materials are includingￂﾠcardboard, non-woven fabric, veneer, acrylic, some thin plastic board.
Specification:

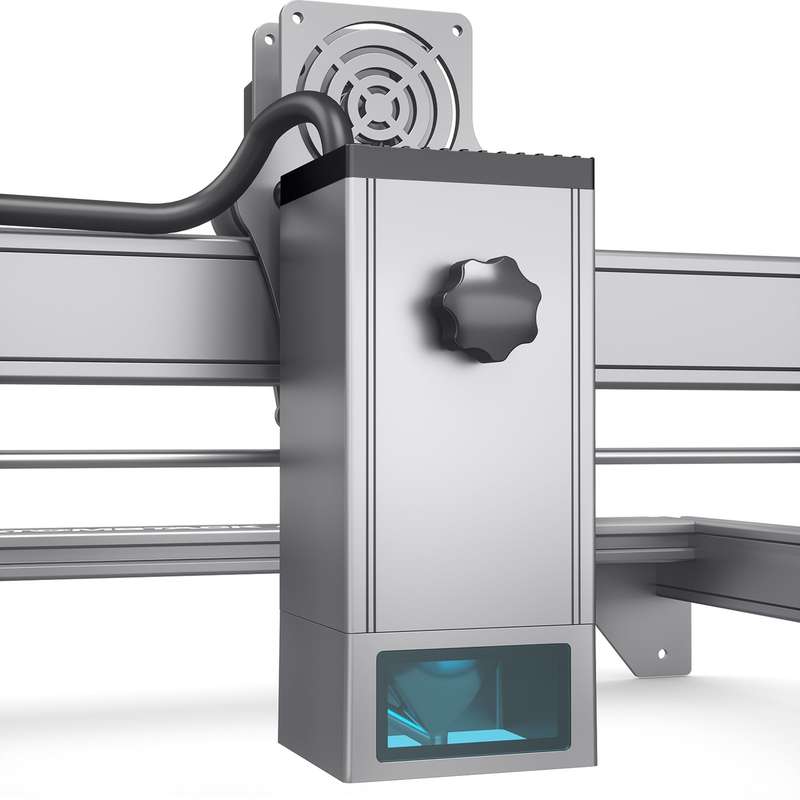

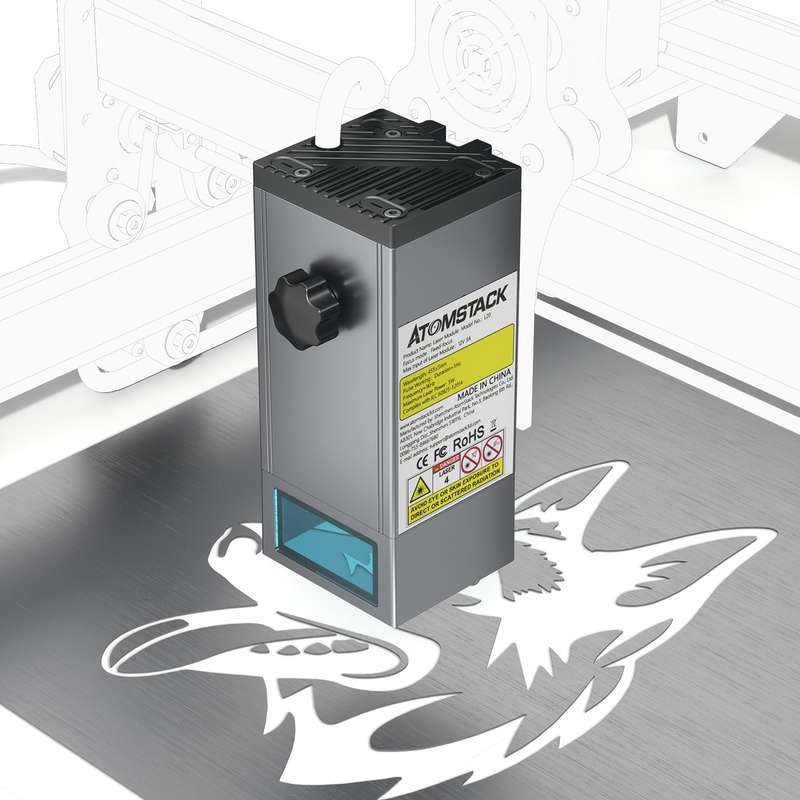

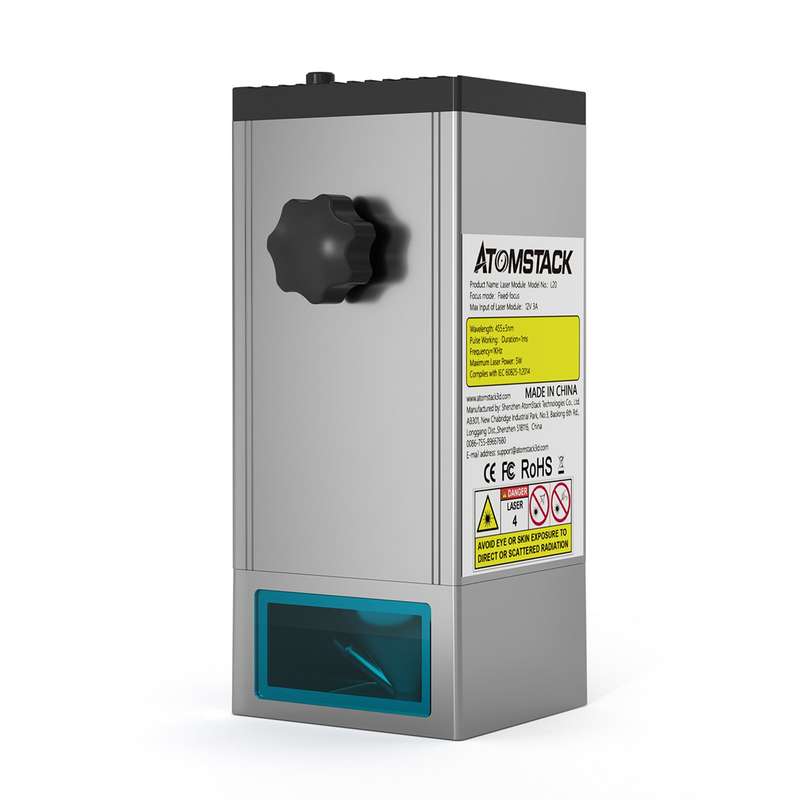

Module Model: M100
Optical Output Power: 20-21W
Product Material:ￂﾠAluminum 6061 Anode
Housing Size:ￂﾠ140*65*60mm
Circuit Board Size:ￂﾠ44*52mm
Circuit Board:ￂﾠV/PWM Modulation Board
Wire Rod:ￂﾠ22# 2P2.54 Terminal Reverse Wire 80mm
Optical Lens:ￂﾠￏﾆ6/
Fan: 24V
Laser Beam Mode:ￂﾠSpot
Working Mode:ￂﾠPulse Work
Light Spot Size:ￂﾠ0.08*0.1mm
Wavelength: 445ￂﾱ5nm
Engraving Accuracy: 0.01mm
Working Timeￂﾠ10000H
Working Temperature: 0￢ﾄﾃ~70￢ﾄﾃ
Storage Temperature: ￤ﾸﾀ40￢ﾄﾃ~85￢ﾄﾃ
Sintering Temperature: 2000~2400￢ﾄﾃ
Product Net Weight: 715g

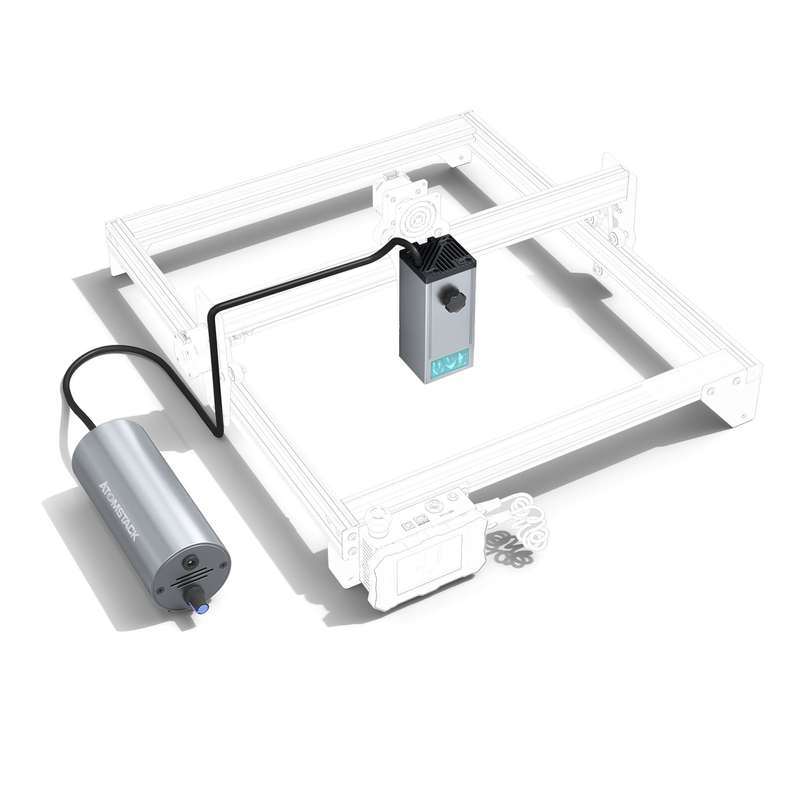

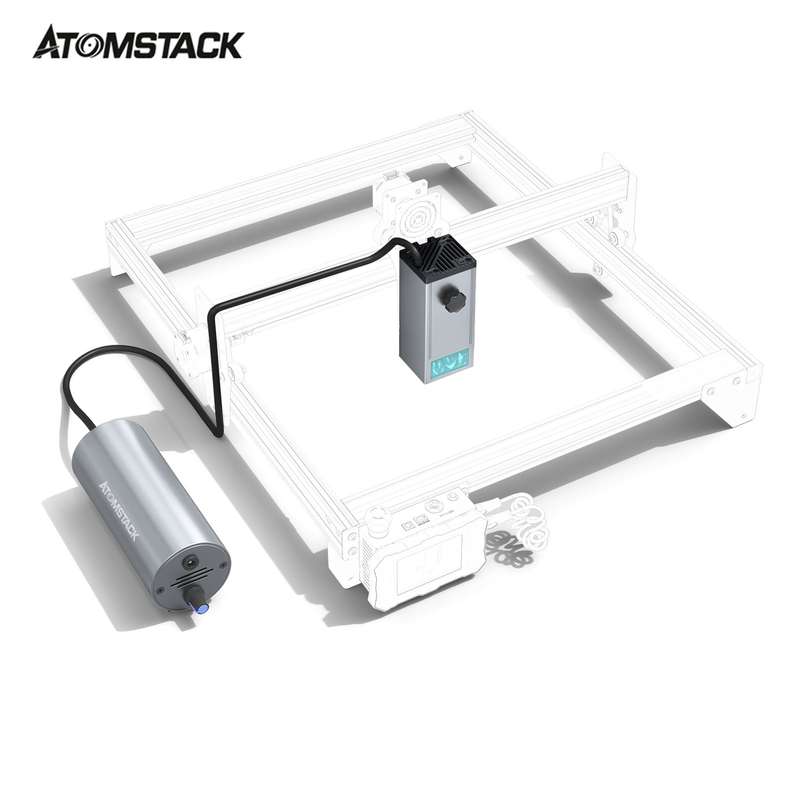

Air Assist Kit
Model: F30
Parameter: 10-30L/Min (Adjustable airflow speed)
Noise decibel: 60dB
Package weight:2700g/5.9lb
Packing List:
1 x M100 Laser Module
1 x PCB Circuit Board
1 x Compatible Plate (A5 series and 10W series use different adapter boards, please pay attention to the distinction)
1 x Fixed Focus Plate
1 x Connection Line
1 x Wrench
1 x Screws
1 x Power Supply
1 x Air assist kit
