Features:
￢ﾙﾦￂﾠSuper High Power: The world's first 33W optical power laser engraving machine. With the latest six 6W laser coupling technology, it can cut 18-20mm paulownia board, 10mm black acrylic board, and even 0.1mm stainless steel sheet at one time. The high-density laser can easily cut 30mm thick wood and 40mm thick black acrylic with multiple operations; it can directly engrave mirror stainless steel, ceramics, opaque glass and other materials.
￢ﾙﾦￂﾠUpgraded 32-Bit Air-Assisted Motherboard: Equipped with self-developed 32-bit motherboard which built-in 256-bit color scale, achieving the finer engraving result and higher contrast effect. Use with F30 Pro upgraded air assist kit as standard, while the cutting ability has been greatly improved, the cutting accuracy and cutting quality can also be greatly optimized.
￢ﾙﾦￂﾠHigh work efficiency: Compared with 10W laser engraving machine, the cutting speed is increased by 200%, and the cutting depth is increased by 150%. Compared with 20W laser engraving machine, the cutting speed is increased by 50%, and the cutting depth is increased by 25%.
￢ﾙﾦￂﾠUpgraded Fixed-focus Laser Module: it can be engraved without focus adjustment; the 0.08*0.1mm focal spot area of the new laser is only 1/3 of the spot area of other ordinary lasers, which can take into account both precision engraving and high-energy cutting. At the same time, the laser power of the fixed-focus laser is more stable than that of the zoom laser. Design with a knob that convenient and quick to adjust the height of the laser.
￢ﾙﾦￂﾠStrong Compatibility:ￂﾠThe machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MAC system (LightBurn), self-developed mobile phone APP is now available in major Android application markets and Apple APPstore (The APP is downloadable via scanning the QR code from the manual as well). Mini size and multi-function, bringing you a fresh control experience, come and have a try!
￢ﾙﾦￂﾠEye Protection: The panoramic filter glass protective cover plays a very good role in protecting your eyes, filtering 97% of the ultraviolet light, without the goggle, you can also watch laser engraving. Save money and reduce the inconvenience of wearing goggles.
￢ﾙﾦￂﾠSolid and Easy Installation Structure Design: The all-aluminum alloy anodized structure design makes the machine more durable, and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 20-30 minutes.
￢ﾙﾦ Excellent Design: The machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable. The laser sintering temperature is up to 3000￢ﾄﾃ.ￂﾠThere are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 400x400mm large area engraving interval can meet your various engraving needs.
Specification:

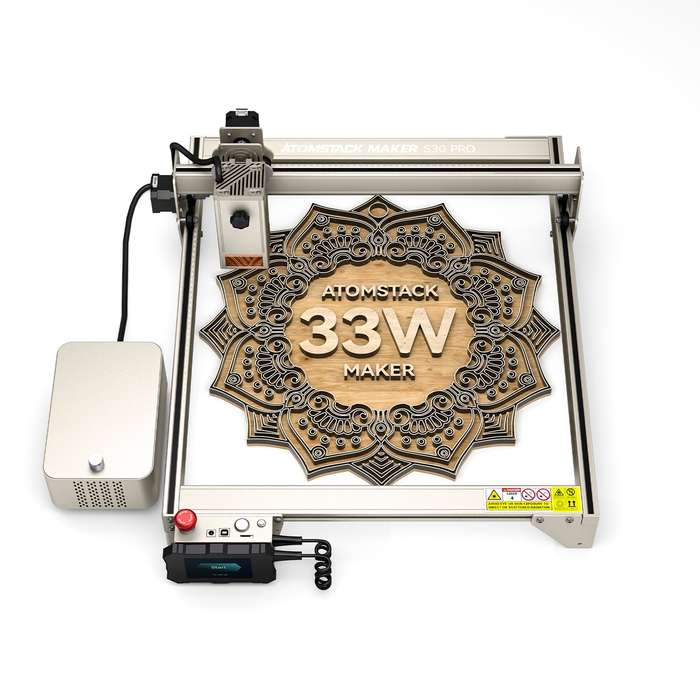

Item model: ATOMSTACK S30 PRO
Engraving size: 400*400mm
Engraving material: Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplating layer and paint surface layer metal, 304 mirror stainless steel, glass, ceramics, cotton cloth, slate;
Cutting material: Cardboard, non-woven fabric, wood board, acrylic, some thin plastic board, sponge;
Machine Electric Power: 160W
Laser Power: 120W
Laser output power: 33-36W
Wave Length: 445 ￂﾱ 5nm
Engraving accuracy: 0.01mm
Focusing method: fixed focus laser, no need to focus
Laser protective cover: Protect the user's eyes and prevent pets from grabbing the laser spot.
Operating software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system.
Input Format: NC, BMP, JPG, PNG, DXF, etc.
Data transmission method: USB connection.
Input Voltage: AC100-240V, 50/60Hz
Output Voltage: DC12V, 6A
Package Size:ￂﾠ57x52x18cm/22.4x20.4x7in
Package Weight:ￂﾠ11500g/25.3lb
