Featuresﾼﾚ

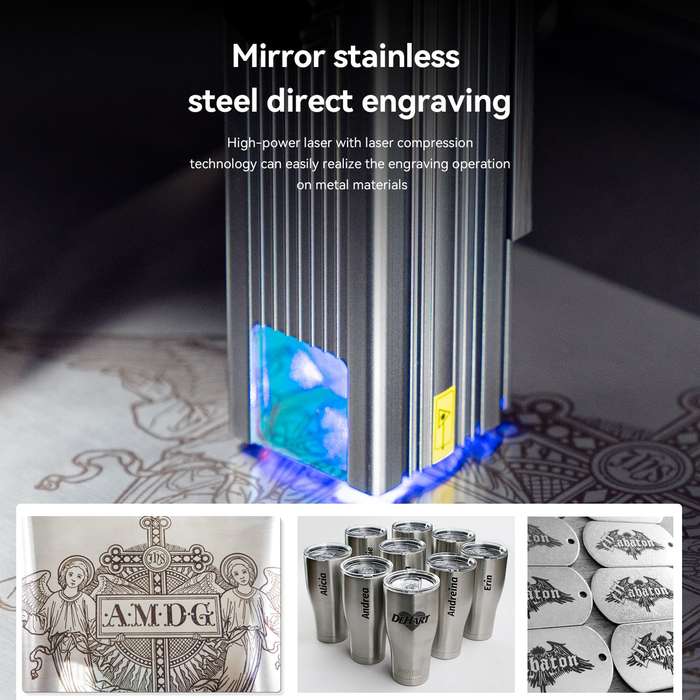

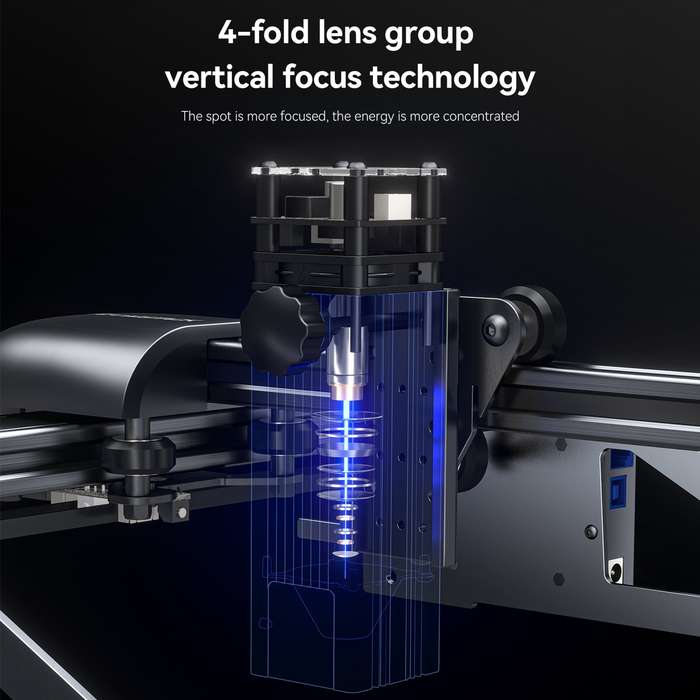

Newly Upgraded Ultra-fine Compression Laser:the laser adopts 4-fold lens group collimation and focus technology, the optical power is 4.5~5.5W, the laser focus area is reduced to 0.02mmￂﾲ, the high-density laser can easily cut 10mm thick wood boards and 6-8mm black acrylic ; Can directly engrave mirror stainless steel metal and ceramics.ￂﾠ
Upgraded Version of High-performance Fixed-focus Laser:Engraving can be done without adjusting the focal length; the newly upgraded compressed spot increases the energy concentration by 200%, and the spot size is only 0.02mmￂﾲ, which can take into account both precision engraving and high-energy cutting. At the same time, the laser power of fixed-focus laser is more stable than that of zoom laser.
Easy Installation: The all-aluminum alloy anodized structure design makes the machine more durable and improves the accuracy of engraving. The portable all-metal structure, 85% pre-assembly, can be installed in 5 minutes.
Eye-protection Flame-retardant Filter Panoramic :The flame-retardant filter panoramic can filter 97% of the ultraviolet light, which plays a very good role in protecting your eyes. You and the people around you do not need to wear goggles, you can also clearly Watch laser engraving. Reduce the cost of your goggles and the inconvenience of wearing goggles. The is flame retardant and safer to use.
More Humanized & Safe Design:ￂﾠith knob for easier to adjust the height of the laser and a horizontal gyroscope auto stop working when it is tilted.
Wide Compatibility:The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MAc system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.
Specifications:

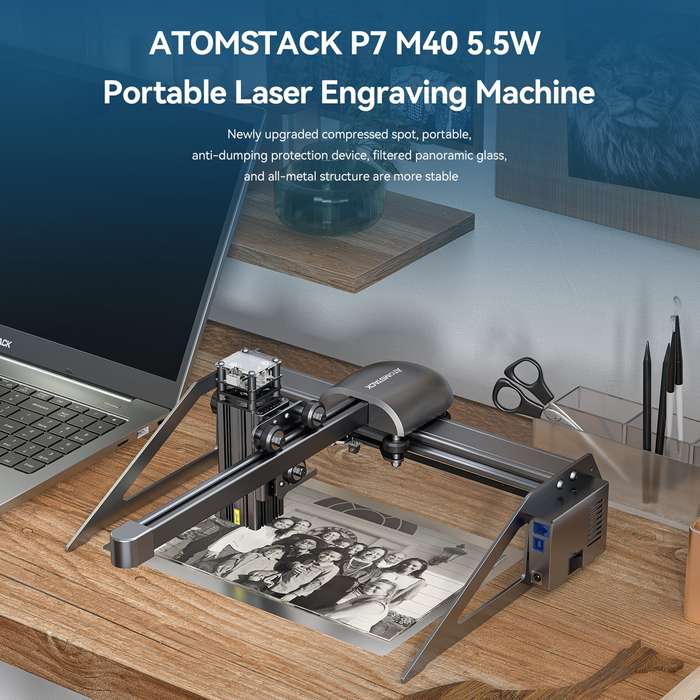

Model:ATOMSTACK P7 M40
Frame Material:Aluminum alloy
Input Voltage:AC100-240V, 50/60Hz
Output Voltage:DC12V, 3A
Engraving Size:Recommend Print Size 200*200mm
Engraving Materials:wood, bamboo, cardboard, plastic, leather, MDF, slate, lacquered metal, mirror stainless steel;
Cutting Material:cardboard, non-woven fabric, veneer, acrylic, some thin plastic board, sponge, MDF, leather;
Spot Size:0.02￣ﾎﾡ
Laser Power:40W
Laser Output power:4.5-5.5W
Wave Length:445 ￂﾱ 5nm
Engraving Accuracy:0.01mm
Focusing Method:fixed focus laser, no need to focus
Laser Protective Cover:Protect the user's eyes and prevent pets from grabbing the laser spot.
Operating Software:Compatible wiith LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system.
Input Format:NC, BMP, JPG, PNG, DXF, etc.
Data transmission Method:USB connection.
Machine Size:382*420*146mm/ 15*16.5*5.7n
Machine Weight:3kg/ 6.6lb
Package Size:490*275*135mm/ 19.2*10.8*0.5in
Package Weight:4656g/164.2oz
Packing List:
Assembly block*4
Laser Module*1
Laser Slide*1
Foot Pad Foam*4
USB Cable*1
Open Wrench*1
Y-axis Belt Assembly*1
Marker *1
Cable Tie*5
Screw*4
Hexagonal Wrench*2
Wood Chips*3
Fixed Focus Film*1
Acrylic Sheet*3
Cutting Pad *1
Lower Support Foot*1
Upper Support Foot*1
Control Box*1
X Axis Assembly*1
Y Axis Assembly*1
Power Adapter*1
Power Cord*1
Note:
When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
Please do not touch the laser emitter with your hand, or it may burn your hand.
Please avoid strong impact on the machine.
Children under 14 are not allowed to use this product and children over 14 need adult supervision.
The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
ￂﾠ
