Features:
Eye Protection Design:The panoramic filter protective cover plays a very good role in protecting your eyes, filtering 97% of the ultraviolet light, you can also watch laser engraving without wear goggles. Reduce the cost of your goggles and the inconvenience of wearing goggles.
Easy Installation:The all-aluminum alloy anodized structure design makes the machine more durable, and the assembly can generally be completed within 20-30 minutes.

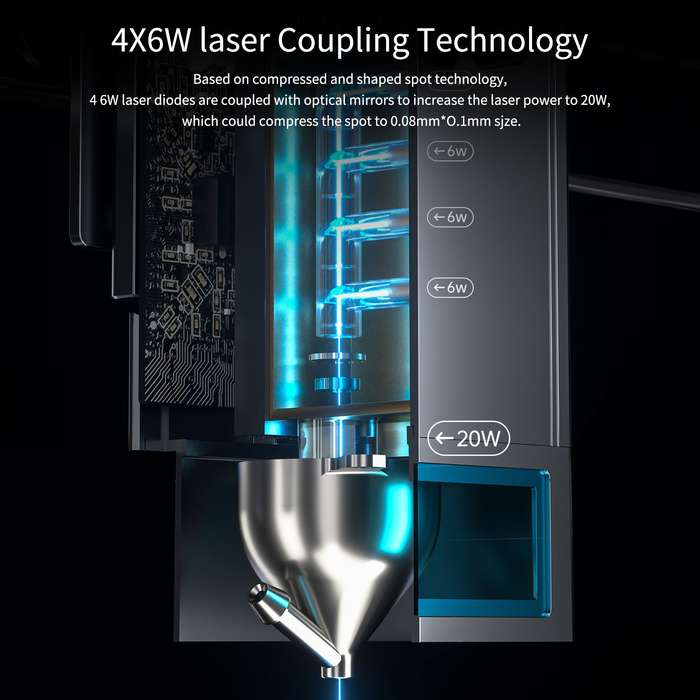

Super High Power:World's first 20W optical power laser engraver. The laser output power soars up with the latest generation of four 6W laser coupling technology, is able to cut off 12-15mm thick tungsten board as well as the 8mm thick black acrylic board with only one pass, and even cut the 0.05mm thick stainless steel sheet.
Upgrade Air Assist Kit:The cutting capacity is greatly improved, as well as the cutting accuracy and quality is optimized to a considerable extent.
Upgraded Laser:No need to adjust the focus before engraving. The focusing spot area of the new laser is only 1/3 of other ordinary lasers. Combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.
Precise Scale Lines Axis:There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 400x400mm large area engraving interval can meet your various engraving needs.
Wide Compatibility:The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP/ 7 /8 / XP / 10, and also support MAc system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.
More Function:Uses an integrated screw rod which makes the movement of the laser more precise and the coupling more durable. Support offline engraving; In the event of an unexpected situation, stop the machine at any time to make the engraving safer. The laser sintering temperature is up to 2400￢ﾄﾃ.
Specification:ￂﾠ

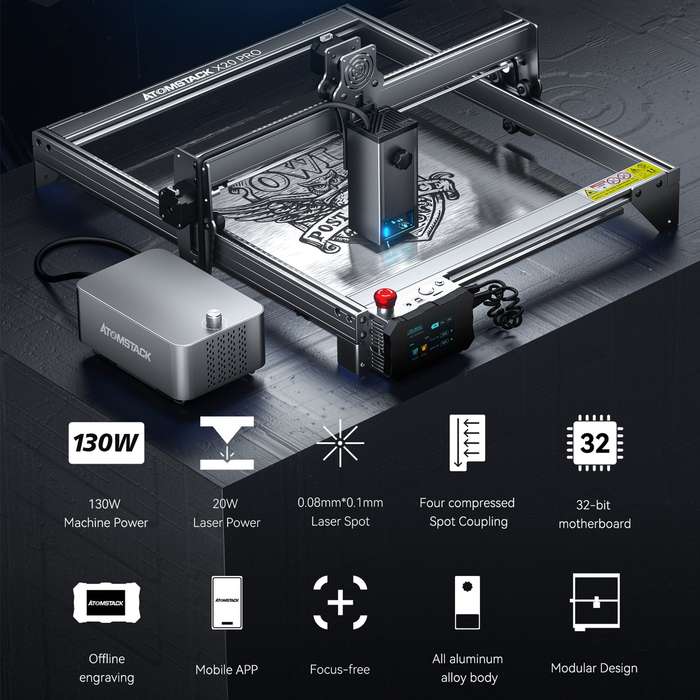

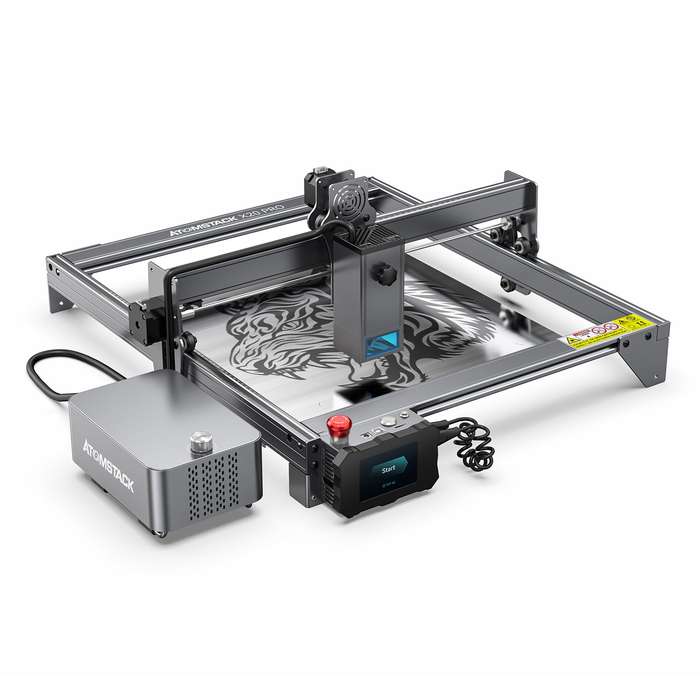

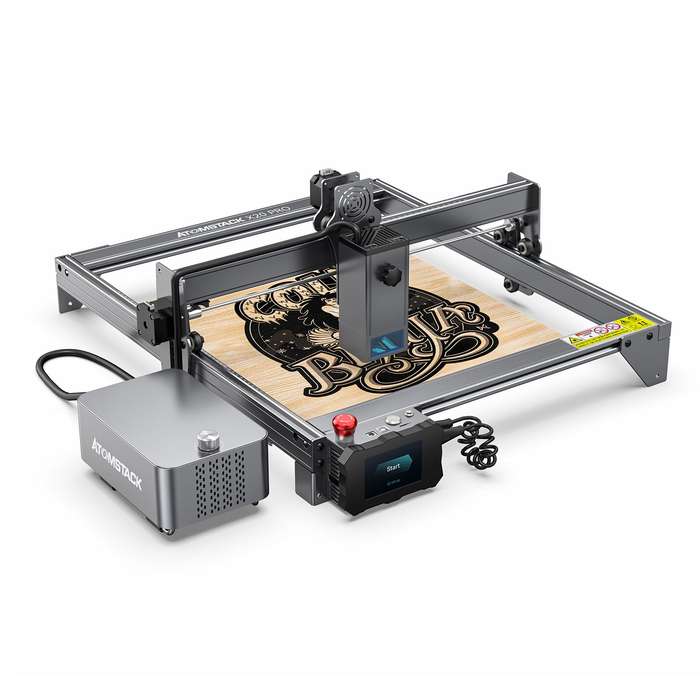

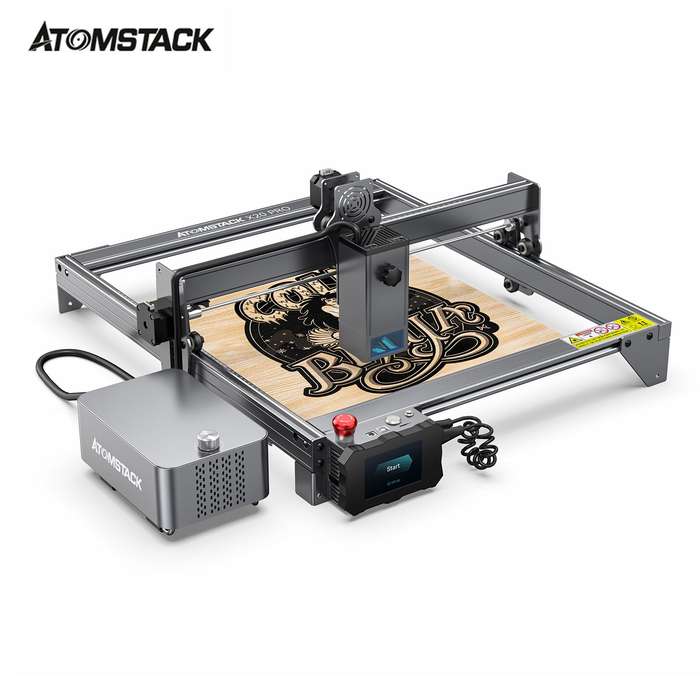

Model: ATOMSTACK X20 PROￂﾠ
Recommend Print Size: 400x400mm
Carving Objects:Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective, Electroplating layer and paint surface layer metal, 304 mirror stainless steel, , ceramics, cotton cloth, slate;
Cutting Objects:Cardboard, non-woven fabric, wood board, acrylic, some thin plastic board, sponge;
Machine Power: 130W
Laser electric power: 90W
Laser output power: 20-21W
Wave Length: 445 ￂﾱ 5nm
Engraving accuracy: 0.01mm
Focusing method: fixed focus laser, no need to focus
Laser protective cover: Protect the user's eyes and prevent pets from grabbing the laser spot.
Operating software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system.
Input Format: NC, BMP, JPG, PNG, DXF, etc.
Data transmission method: USB connection.
Input Voltage: AC100-240V, 50/60Hz
Output Voltage: DC12V, 5A
Package Size: 57 x 52 x 18cm/22 x 20.4 x 7in
Package Weight: 10.6kg/23.3lb
Packing List:
1 x Air Assist Accessory
1 x Mounting Screw
1 x Tool Kit
4 x Foot Pad Foam
1 x Film
3 x Acrylic Sheet
3 x Wood Chips
10 x Wire Tie
1 x Desiccant
1 x Brush
1 x Clean Cloth
1 x Card Reader
1 x TF Card
1 x Power Adapter
1 x Instruction
1 x Data Line
1 x Touch Screen Components
1 x High Definition Multimedia Interface Cable
1 x Laser Module
1 x Cutting Pad
1 x x Axis Assembly
1 x y Axis Left Profile
1 x y Axis Right Profile
1 x Profile On The Base
1 x Under The Base Profile
3 x Foot Bracket
