Characteristic
1.Dual channel - channel bandwidth:100MHz
2.The volume exquisite and it is convenient for carrying
3.Use Colored TFT LCD, the waveform display is clearer and stable
4.The real time sampling rate is 500MSa/s
5.Memory depth of ADS1000C is 4K
6.Trigger Modes: Edge, Pulse, Video, Slope, Alternative and Delay trigger modes
7.Front and Back USB Host/Device, GPIB
8.Unique Digital Filter function and Waveform recorder function
9.Waveform recorder function
10.Pass/Fail function

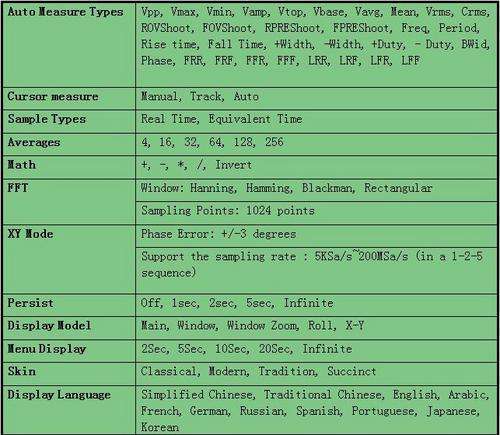

11.Thirty two parameters Auto measure function
12.Cursor measure covers Manual mode, Track mode and Auto mode
13.Channel waveform and it`s FFT waveform display on split screen
14.Pop-up Menu display pattern is more convenient for users using it
15.Multiple Language User Interface
16.Support multilingual online help
