ATTEN APS3005S-3D 30V 5AMP- POWER SUPPLY- Shop Soiled- free Shipping!!

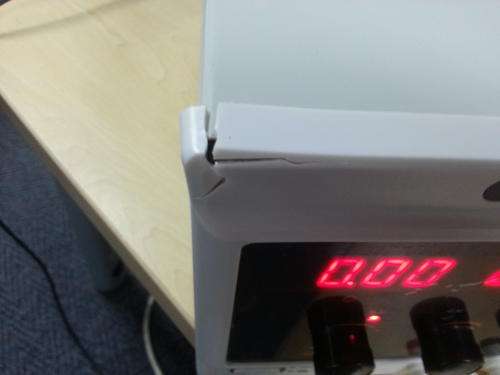

Shop-Soiled:  Please see pictures attached. This item was damaged during shipping (the front panel). The unit is 100% working. Just damaged on the front (Cosmetic) please see pictures attached. (Small crack on the top left corner)

QUICK OVERVIEW

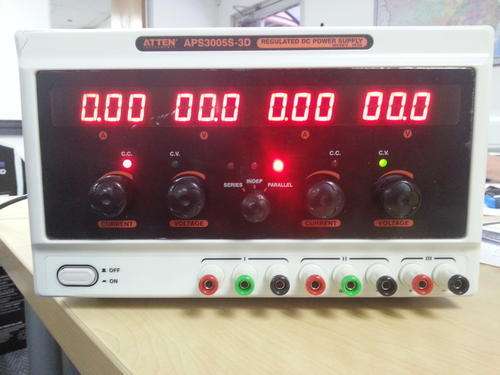

Atten APS3003S-3D is a high performance bench top DC Power Supply ideally suited for applications in Electronic Test, Production and Service, Educational Laboratories, where independent DC supplies are required and bench space is at a premium.

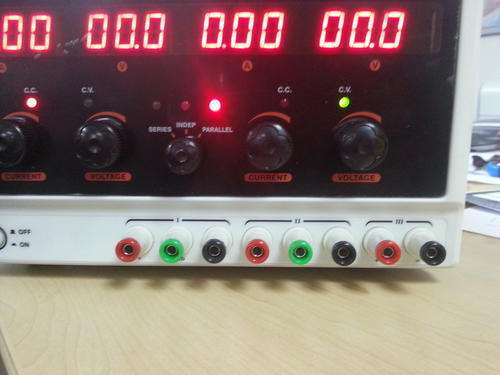

The unit comes with 3 outputs:
2 x 0~30V with 0~5Amp
1 x 5V
The unit can be set in series or parallel mode to get 1 channel of 0~60V with 0~5Amp or 0~30V with 0~10Amp.

PRODUCT DESCRIPTION

Ideal for Educational Laboratories. Safe for students to use
0.01% High Regulation
Constant Voltage and Constant Current Operation
Internal Select for Continuous or Dynamic Load
Low Ripple and Noise
Overload and Reverse Polarity protection
Customized design available

TECHNICAL SPECIFICATIONS

Rated Output Voltage 0-30V ( Adjustable )
Rated Output Current APS 3005S-3D : 0-5 A (Adjustable)
Rated Output Power 150W (on one channel) Total 300W
Voltage Accuracy ± 0.5% Rdg +2bit
Current Accuracy ± 0.5% Rdg +2bit
Ripple And Noise ≤ 3mvrms (Test Conditions 30V / 3A)
Load Stability ≤ 0.3% (Test Conditions 30V / 3A)
Digital Display Resolution Voltage 0.1V Current 0.01A
Protection Methods
Current Limited Lower Voltage
Short Circuit Protection
Over-Temperature Protection
High-pressure Test
Leakage Current ≤ 1ma (Test Conditions: Input-To-Ground 1700VAC/2s)
Insulation Resistance ≥ 7MΩ (Test Conditions: Input-To-Ground 500VDC/5s)

Work Method Constant-Current Constant-Voltage
Cooling Method Strong Wind Cooling
Working Environment 0-40  Relative Humidity <80%
Storage Temperature -20-80 Âƒ Relative Humidity <80%
Size 260 * 300* 160 (L * W * H)
