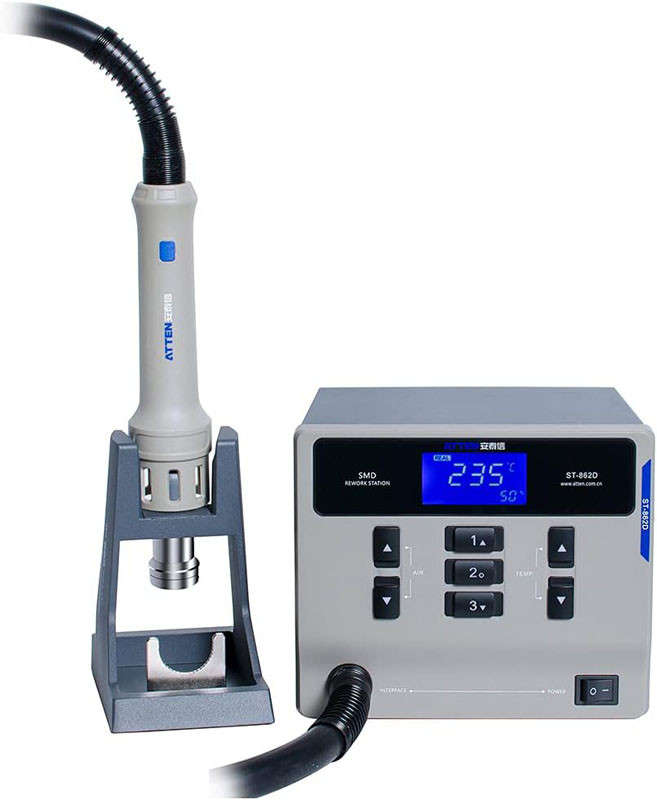

ATTEN ST-862D Hot Air Gun Rework Station

Product Description

ATTEN Intelligent Hot Aair Gun Soldering Rework Station with Digital Display For Phone PCB Chip Soldering Repair, 1000W Whirlwind ATTEN ST-862D Lead-Free Hot Air Gun Soldering Rework Station

Product Specification :

Input Voltage: 220V

Power: 1000W

Temperature Range: 100?~480?

Maximum Air Flow: 120L/min

Product Features :

- The LCD screen displays the operating temperature and status to achieve visual and human-machine interaction.

- Menu-style operation, three sets of fast temperature / air volume access keys to achieve common temperature fast switching, 100°C-480°C

- Strong airflow with brushless fans

- Plug-in heating chip replacement is fast

- Straight wind and spiral wind convertible

- Automatic sleep

- Temperature lock function, timed work function

- Software calibration temperature control function, temperature compensation, to achieve constant temperature work

Product Function :

1. Three regular channels are "1", "2" and "3". Each channel's parameters including temperature and airflow can be set.

2. Real time operation by the magnetic switch. It will Cooling status when the handle is placed on holder, When the temperature drops to 100 degrees Celsius into sleep mode.

3. Auto sleeping function. Parameters can be set in sleeping state.

4. Closed loop sensor. Temperature can be controlled by zero voltage triggering modes, and adjusted conveniently, accurate and stable, not affected by airflow.

5. Large power, rapid heating.

6. A multipurpose unit, having brushless whirlpool motor, wide range.

7. An automatic cooling system can prolong the life time of heating element and protect the handle.
