Crankshaft Timing Locking Tool for Ford & Jaguar

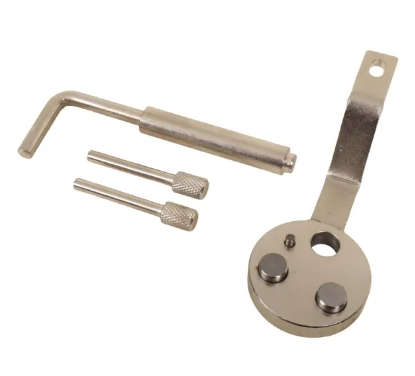

Front Crankshaft Timing Tool Overview

The Front Crankshaft Timing Tool is an essential tool for precise timing during repairs or maintenance of Ford and Jaguar models. This tool kit is designed to secure the crankshaft and cam sprocket in their exact timing positions, facilitating the accurate setting of the TDC (Top Dead Center) sensor position after disassembly. Its ideal for working on the cam chain drive system, ensuring efficient and reliable engine timing adjustments.

Key Features:

• Fitment Compatibility:

  • Ford Models: Suitable for Ford vehicles from 2006 to 2014.
  • Jaguar X-Type Models: Compatible with Jaguar X-Type models from 2005 to 2010.
  • Please ensure the tool is compatible with your specific model and engine code before purchasing to ensure a perfect fit.

• Secure Fixation:

  • Designed to lock the crankshaft and cam sprocket into their respective timing positions, ensuring precise engine timing during cam chain drive system repairs.
  • Ideal for setting the TDC sensor position after disassembly, eliminating timing issues during reassembly.

• Reliable Performance:

  • Adheres to original manufacturing standards for reliability and durability.
  • Manufactured to meet high-quality control standards for consistent performance.

• Engine Compatibility:

  • Works with the following engine codes:
    • 2.2: QJBA, BG, ID4
    • 2.2 TDCi: CVFF, CVR5, CYFF, CYF5, CYR5, DRF5, DRFF, DRR5, GBVAJPF, GBVAJQJ, PGFA, PGFB, P8FA, P8FB, QVFA, QWFA, SRFA, SRFB, SRFC, SRFD, SRFE, UHFA, UHR5
    • 2.2D TDCi Econetic: DRFC, DRFG, CYFC, CYFG
    • 2.2D TDCi HDT: UYR6, USR6
    • 3.2D TDCi: SAFA

Package Specifications:

• Package Weight: 0.50 kg
• Package Dimensions:
  • Length: 20.57 cm
  • Width: 10.67 cm
  • Height: 2.79 cm
