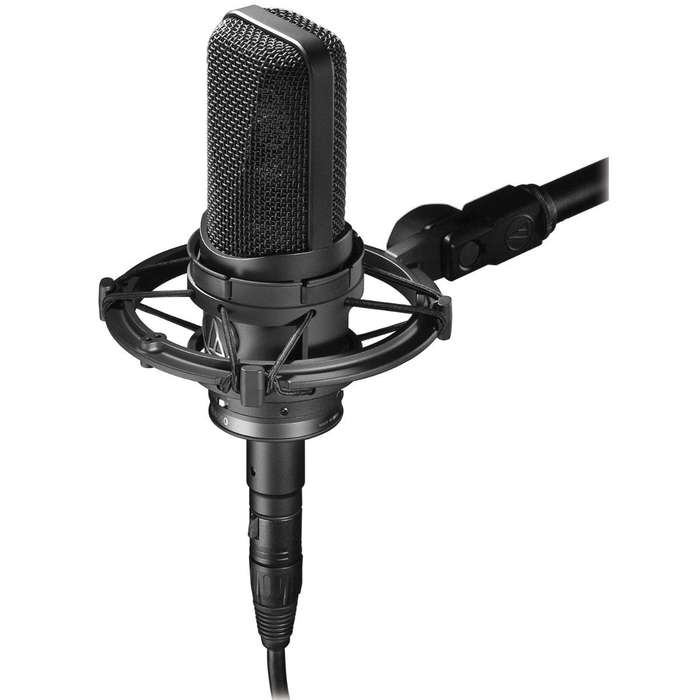

Meet the studio condenser that captures every nuance. With three switchable polar patterns, the large-diaphragm Audio-Technica AT4050 exhibits a remarkable combination of qualities: high-SPL capability with transparent and airy uppers/mids complemented by rich low-end qualities. Its dual large diaphragms are gold-vaporized and aged for consistent, outstanding performance. A precision-machined, nickel-plated brass acoustic element baffle provides rock-solid element stability and exceptional sensitivity.
Ideal for studio use and live sound productions with vocals, piano, strings, drum overheads, guitar amps, and more.
Audio-Technica's AT4050. For performance that legends are made of.
Features
- Transparent uppers/mids balanced by rich low-end qualities combine with advanced acoustic engineering for extensive performance capabilities and highest quality
- Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
- The 2-micron-thick, vapor-deposited gold diaphragms undergo a five-step aging process so that the optimum characteristics achieved remain constant over years of use
- Three switchable polar patterns: omni, cardioid, figure-of-eight
- Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
- State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards
- Switchable 80 Hz hi-pass filter and 10 dB pad
- Custom shock mount provides superior isolation
Specifications
| Microphones |
|---|
| Element | Externally-polarized (DC bias) condenser |
|---|
| Polar Pattern | Cardioid,
Omnidirectional,
Figure-of-eight |
|---|
| Frequency Response | 20-18,000 Hz |
|---|
| Low Frequency Roll Off | 80 Hz, 12 dB/octave |
|---|
| Open Circuit Sensitivity | -36 dB (15.8 mV), re 1V at 1 Pa |
|---|
| Maximum Input Sound Level | 149 dB SPL, 1 kHz at 1% T.H.D.;
159 dB SPL, with 10 dB pad (nominal) |
|---|
| Noise | 17 dB |
|---|
| Dynamic Range | 132 dB, 1 kHz at Max SPL |
|---|
| Signal-to-Noise Ratio | 77 dB, 1 kHz at 1 Pa |
|---|
| Phantom Power Requirements | 48V DC, 4.2 mA typical |
|---|
| Switches | Polar selection;
Flat, roll-off;
10 dB pad (nominal) |
|---|
| Weight | 18.0 oz (510 g) |
|---|
| Dimensions | 7.40" (188.0 mm) long,
2.10" (53.4 mm) maximum body diameter |
|---|
| Output Connectors | Integral 3-pin XLRM-type |
|---|
| Accessories Included | AT8449a shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case |
|---|
| Audio-Technica Case Style | R1 |
|---|
