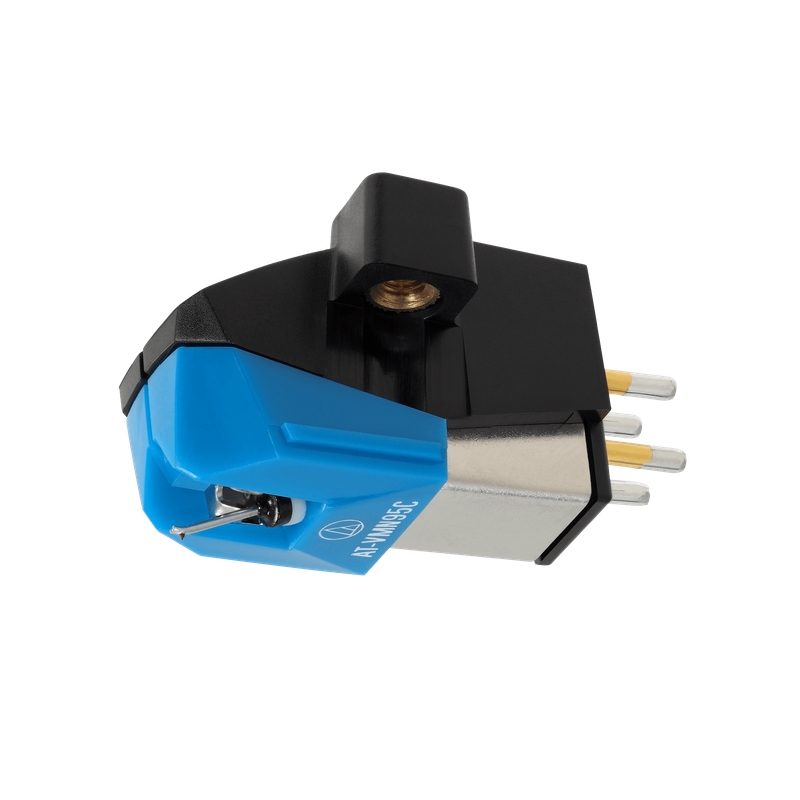

Audio-Technica AT-VM95C Dual Moving Magnet Cartridge

Audio-Technica AT-VM95C Dual Moving Magnet Cartridge

This VM95 Series cartridge with 0.6 mil conical stylus fits half-inch mount turntables. The cartridge's special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality.

The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.

SPECIFICATIONS
Cartridge & Stylus

Frequency Response 20 - 20,000 Hz
Channel Separation 18 dB (1 kHz)
Vertical Tracking Angle 23°
Vertical Tracking Force 1.8 to 2.2g (2.0g standard)
Stylus Construction Bonded Round Shank
Recommended Load Impedance 47,000
Coil Impedance 3.3 k (1 kHz)
DC Resistance 485
Coil Inductance 550 mH (1 kHz)
Output Voltage 4.0 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance 2.5 dB (1 kHz)
Stylus Shape Conical
Cantilever Aluminium Pipe
Static Compliance 17 x 10 6 cm / dyne
Dynamic Compliance 6.5 x 10 6 cm / dyne (100 Hz)
Mounting 1/2" centres
Cartridge Weight 6.1g
Dimensions 17.2 x 18.9 x 28.3 ( H x W x D mm)
Accessories Included Two 11 mm installation screws;
Two 8 mm installation screws;
Two washers
Model AT-VM95C
Recommended Load Capacitance 100-200 pF
Replacement Stylus AT-VMN95C
Stylus Size 0.6 mil
Type VM Stereo Dual Magnet
Wire Used for Coil T.P. Copper
