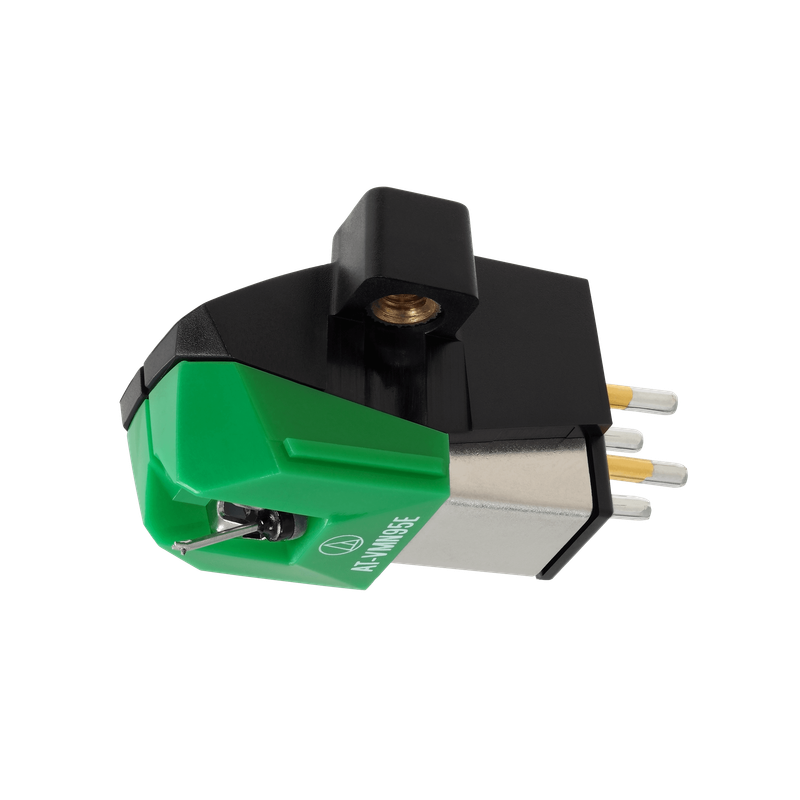

Audio-Technica AT-VM95E Dual Moving Magnet Cartridge

Audio-Technica AT-VM95E Dual Moving Magnet Cartridge

This VM95 Series cartridge with 0.3 x 0.7 mil elliptical stylus fits half-inch mount turntables. The cartridge's special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality.

The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.

Specifications
Cartridge & Stylus
Frequency Response 20 - 22,000 Hz
Channel Separation 20 dB (1 kHz)
Vertical Tracking Angle 23°
Vertical Tracking Force 1.8 to 2.2g (2.0g standard)
Stylus Construction Bonded Round Shank
Recommended Load Impedance 47,000
Coil Impedance 3.3 k (1 kHz)
DC Resistance 485
Coil Inductance 550 mH (1 kHz)
Output Voltage 4.0 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance 2.0 dB (1 kHz)
Stylus Shape Elliptical
Cantilever Aluminium Pipe
Static Compliance 17 x 10 6 cm / dyne
Dynamic Compliance 7 x 10 6 cm / dyne (100 Hz)
Mounting 1/2" centres
Cartridge Weight 6.1g
Dimensions 17.2 x 18.9 x 28.3 ( H x W x D mm)
Model AT-VM95E
Recommended Load Capacitance 100-200 pF
Replacement Stylus AT-VMN95E
Stylus Size 0.3 x 0.7 mil
Type VM Stereo Dual Magnet
Wire Used for Coil T.P. Copper
