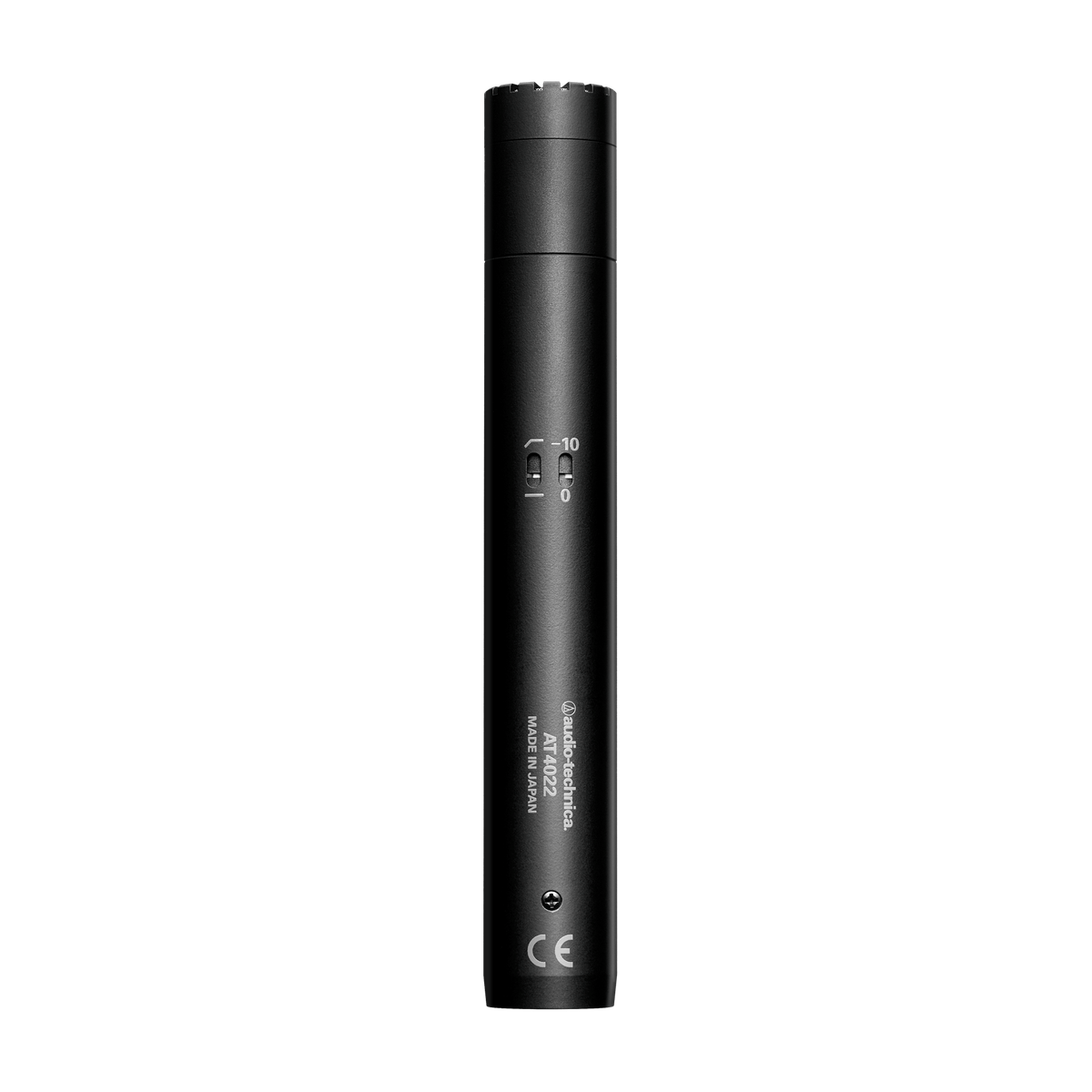

Audio-Technica AT4022 Omnidirectional Condenser Microphone

Audio-Technica AT4022 Omnidirectional Condenser Microphone

Overview:

The AT4022 is a low-profile omnidirectional condenser microphone designed for capturing the natural essence of acoustic instruments such as piano and acoustic guitar. Renowned for its outstanding performance and rugged construction, this microphone is well-suited for both studio and live applications where critical audio capture is essential.

Features:

Outstanding performance and rugged construction, suitable for critical studio and live applications

High SPL handling capability and wide dynamic range

Flat, extended frequency response for accurate sound reproduction

Features a switchable 80 Hz hi-pass filter and 10 dB pad for versatility in various recording environments

Omnidirectional polar pattern provides maximum ambient pickup, capturing the natural sound of the recording location

Low self-noise makes it perfectly suited for digital recording equipment

Exceptional reproduction of low-frequency sounds for rich, detailed recordings

Low-mass element ensures superb transient response, reducing handling and mechanical noise transfer

Specifications:

Element Fixed-charge back plate, permanently polarized condenser
Polar Pattern Omnidirectional
Frequency Response 20 20.000 Hz
Low Frequency Roll Off 80 Hz, 18 dB/octave
Open Circuit Sensitivity -34 dB (19.9 mV) re 1V at 1 Pa
Maximum Input Sound Level 146 dB SPL, 1 kHz at 1% T.H.D.; 156 dB SPL, with 10 dB pad (nominal)
Dynamic Range 133 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio 81 dB, 1 kHz at 1 Pa
Phantom Power Requirements 48V DC, 3.0 mA typical
Weight 124g
Dimensions 144.0 mm (5.67) long, 21.0 mm (0.83) maximum body diameter
Output Connector Integral 3-pin XLRM-type

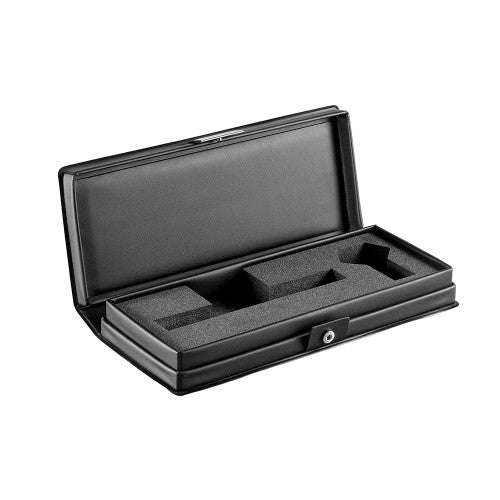

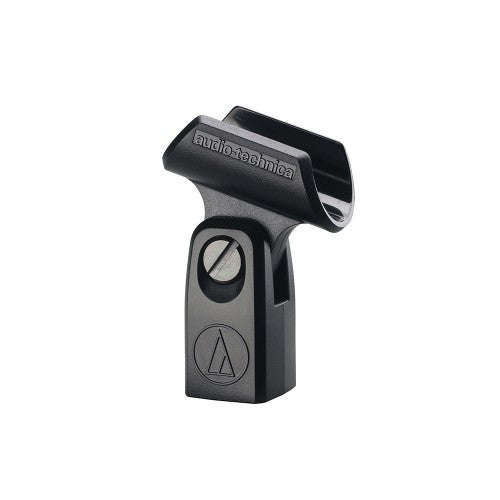

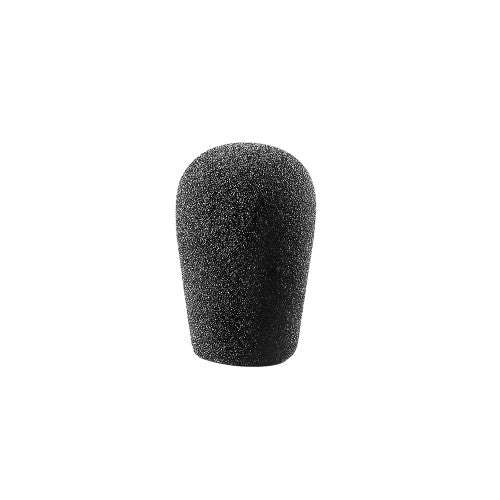

Accessories Included AT8405a stand clamp for 5/8-27 threaded stands; windscreen; protective carrying case
