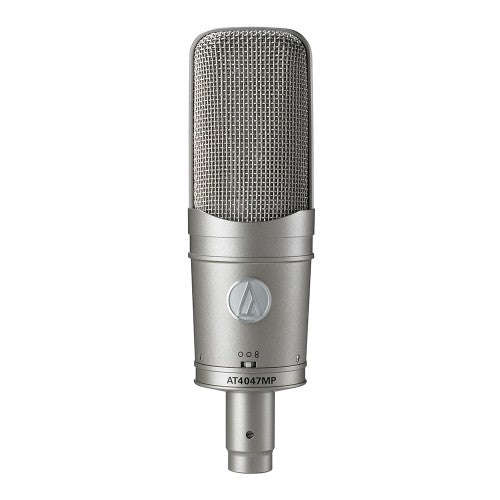

Audio-Technica AT4047MP Multi-pattern Condenser Microphone
Overview:
The AT4047MP from Audio-Technica embodies vintage sound within a modern multi-pattern microphone design. Featuring selectable omnidirectional, cardioid, and figure-of-eight polar patterns, this microphone delivers exceptional sonic performance reminiscent of early F.E.T. studio microphone designs. Engineered to meet the stringent requirements of professional recording, broadcast, and sound reinforcement applications, the AT4047MP offers versatility and high-quality sound reproduction across various scenarios. Its wide dynamic range, remarkably low self-noise, and high SPL capability make it suitable for capturing vocals, strings, acoustic guitar, instrument ensembles, small vocal groups, and voiceovers with precision and clarity.
Features:
Three switchable polar patterns: cardioid, omnidirectional, figure-of-eight
Specifically engineered for professional recording, broadcast, and sound reinforcement applications
Transformer-coupled output and specially tuned element deliver vintage F.E.T. studio microphone characteristics
Exceptionally low self-noise, wide dynamic range, and high SPL capability ensure superior audio capture

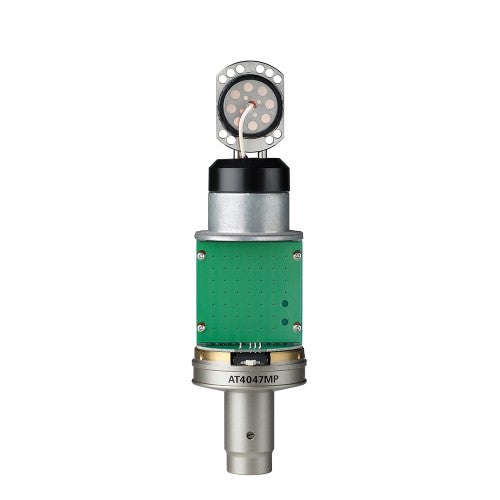

Dual-diaphragm capsule design maintains precise polar pattern definition across the microphone's frequency range
Precision-machined nickel-plated brass acoustic element baffle enhances stability and sensitivity
Vintage silver-matte finish on both the microphone and shock mount for aesthetic appeal
Symmetrical housing assembly minimizes unwanted internal reflections for an open acoustical environment

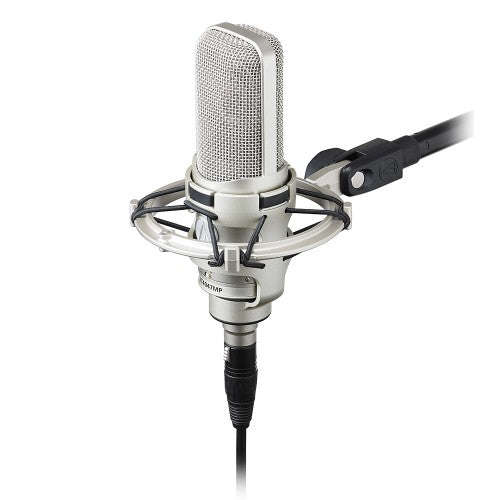

Custom shock mount provides superior isolation for reduced handling noise
Integral 80 Hz high-pass filter switch and 10 dB pad switch offer additional flexibility
Certified by the METAlliance (Music Engineering and Technology Alliance)
Specifications:
Element Externally-polarized (DC bias) condenser
Polar Pattern Cardioid, Omnidirectional, Figure-of-eight
Frequency Response 20-18,000 Hz
Low Frequency Roll Off 80 Hz, 12 dB/octave
Open Circuit Sensitivity -42 dB (7.9 mV), re 1V at 1 Pa
Maximum Input Sound Level 155 dB SPL, 1 kHz at 1% T.H.D.; 165 dB SPL, with 10 dB pad (nominal)
Noise 14 dB
Dynamic Range 141 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio 80 dB, 1 kHz at 1 Pa
Phantom Power Requirements 48V DC, 3.4 mA typical
Switches Polar selection; Flat, roll-off; 10 dB pad (nominal)
Weight 524 g (18.5 oz)
Dimensions 188.0 mm (7.40) long, 53.4 mm (2.10) maximum body diameter
Output Connector Integral 3-pin XLRM-type
Output Connectors Integral 3-pin XLRM-type

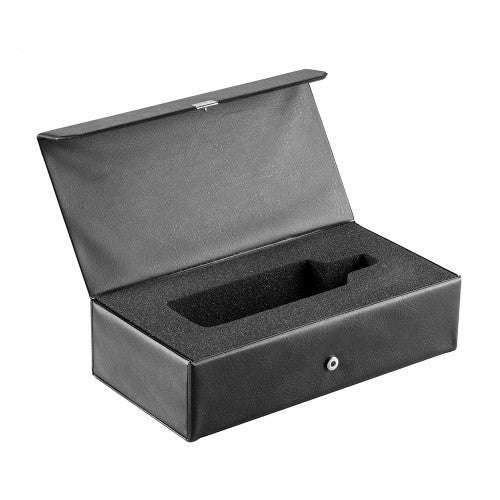

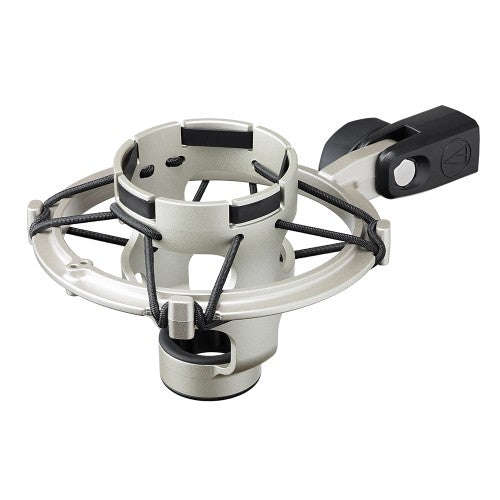

Accessories Included AT8449a/SV shock mount for 5/8-27 threaded stands; microphone dust cover; protective carrying case
Audio-Technica Case Style R1
