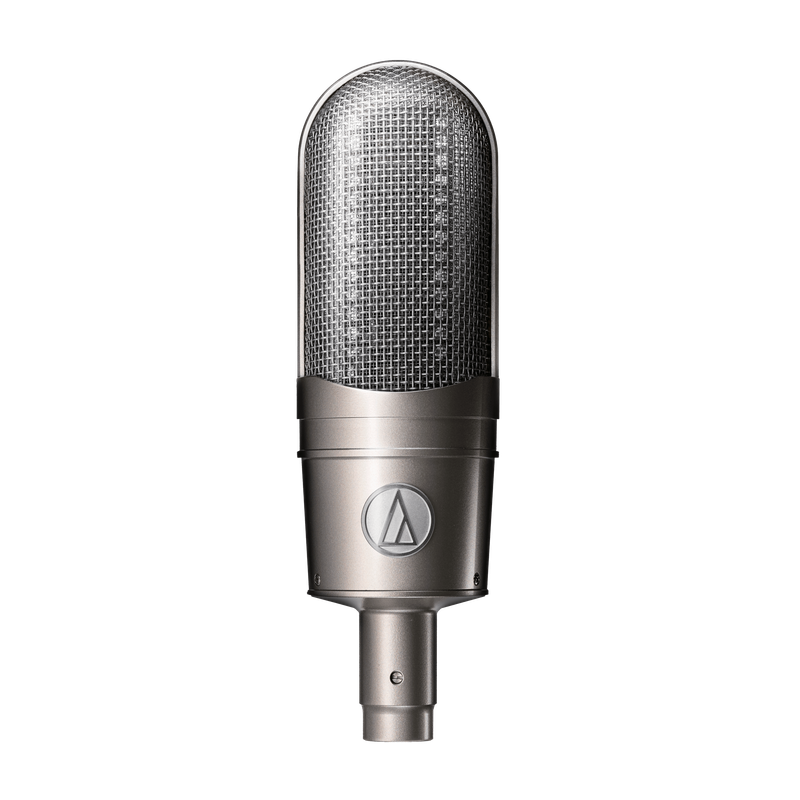

Audio-Technica AT4080 Phantom-powered Bidirectional Ribbon Microphone
Overview:
AT4080
Smooth, warm and natural high-fidelity sound for professional recording, broadcast and sound reinforcement
Proprietary MicroLinear ribbon imprint for superior durability

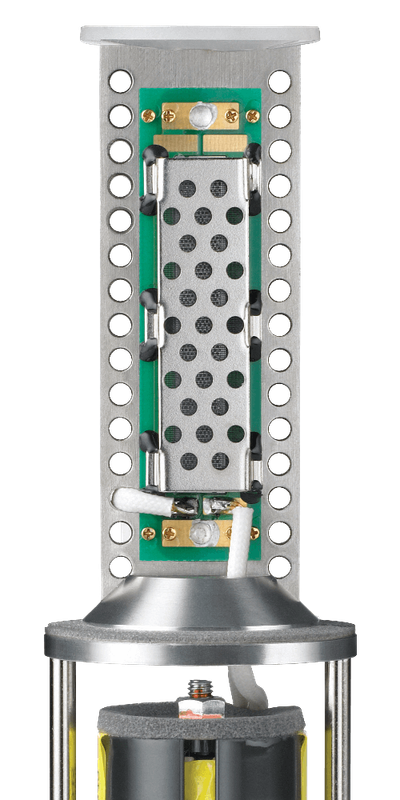

Innovative dual ribbon construction for increased sensitivity
Extremely powerful N50 rare earth magnets for high output level
Ultra-fine mesh helps protect against ribbon damage
Classic bidirectional (figure-of-eight) polar pattern picks up sounds equally from the front and back of the element
High-SPL capability and extended frequency response
Extended frequency response for natural audio reproduction
Acoustic baffle system and extra large output transformer provide natural low-frequency response and extended dynamic range
Handmade production including ribbon corrugation, imprint and assembly
Open acoustical environment of the housing assembly minimizes unwanted internal reflections
Phantom-powered active electronics provide stable impedance and higher output for maximum compatibility with microphone preamplifiers

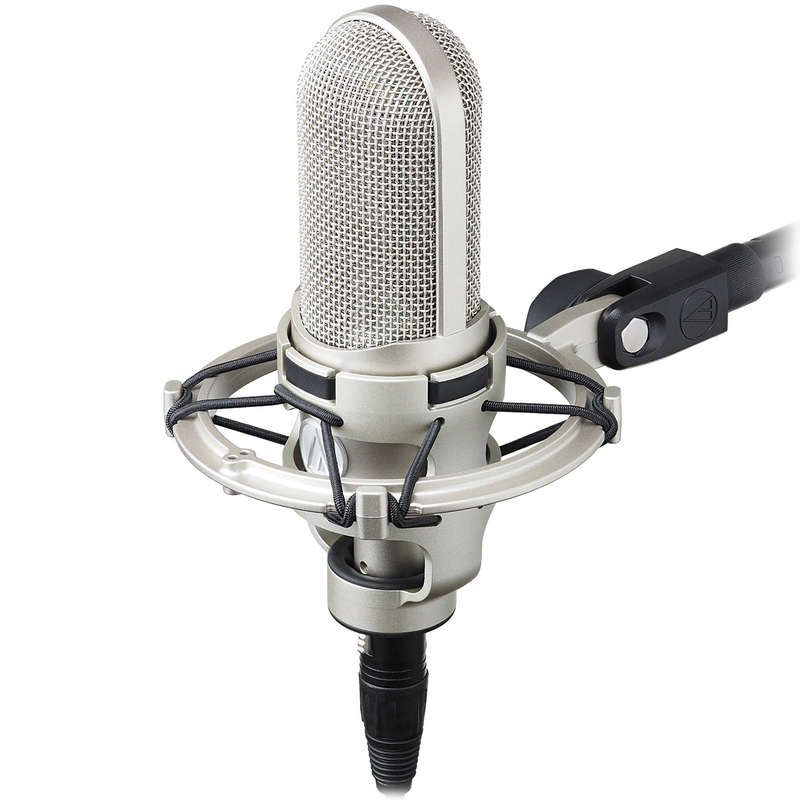

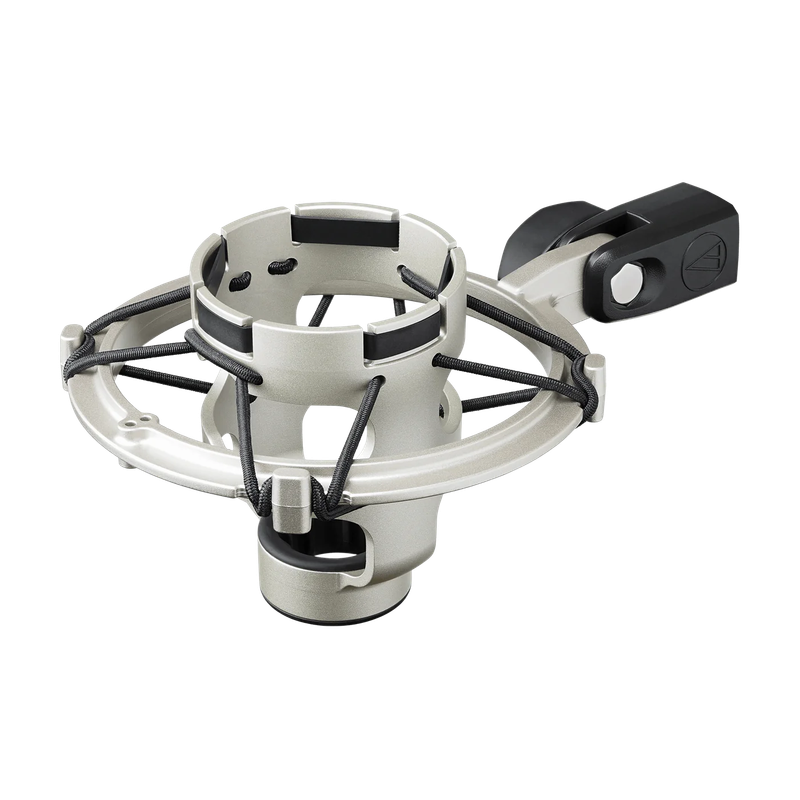

Custom shock mount provides superior isolation
Certified by the METAlliance (Music Engineering and Technology Alliance)
Features:
With the groundbreaking AT4080, Audio-Technica achieves the coveted ribbon microphone sound while solving the problems of fragility and low output that have historically plagued ribbon mics. Delivering the warm, smooth sound of a classic ribbon microphone, Audio-Technica's handcrafted AT4080 Ribbon Microphone offers a robust build for long-lasting, reliable performance and higher output for maximum compatibility with microphone preamplifiers. Equally at home in recording studios and live-sound settings, the microphone features Audio-Technica's innovative MicroLinear ribbon imprint, which protects the dual ribbons from lateral flexing and distortion. Utilizing six new patents*, Audio-Technica's innovative ribbon transducer advances the evolution of ribbon microphone design. Experience the difference.
Specifications:
Microphones
Element Ribbon
Polar Pattern Figure-of-eight
Frequency Response 20 - 18,000 Hz
Open Circuit Sensitivity -39 dB (11.2 mV) re 1V at 1 Pa
Maximum Input Sound Level 150 dB SPL, 1 kHz at 1% T.H.D.
Noise 22 dB SPL
Dynamic Range 128 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio 72 dB, 1 kHz at 1 Pa
Phantom Power Requirements 48V DC, 3.0 mA typical
Weight 474g
Dimensions 177.5 mm (6.99") long, 53.4 mm (2.10") maximum body diameter
Output Connector Integral 3-pin XLRM-type
Accessories Included AT8449aSV shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case
Audio-Technica Case Style R1
