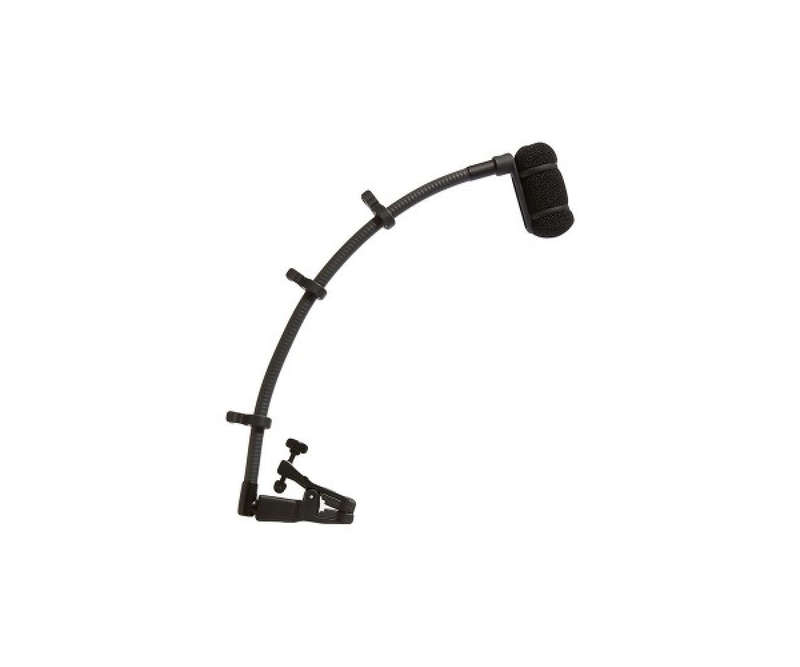

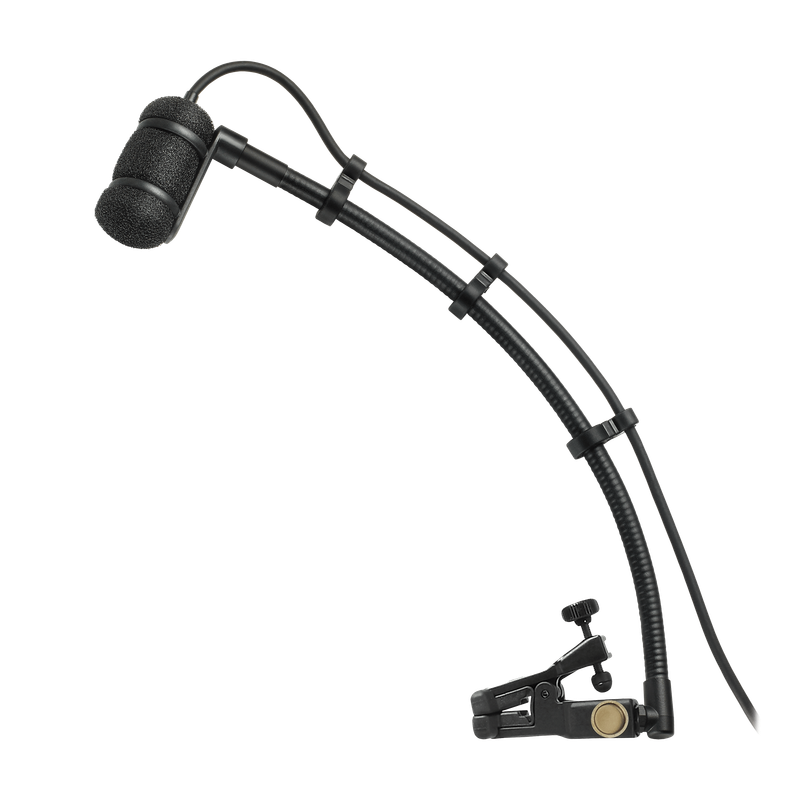

Audio-Technica ATM350UL Cardioid Condenser Instrument Microphone with Universal Clip-on Mounting System (9" Gooseneck)
Overview:
ATM350UL
Designed for use with brass, saxophone and other instruments, the ATM350UL UniMount® mounting system gives you the tools to perform with confidence. The system features the ATM350a cardioid condenser microphone, a high-SPL mic that provides a clear, well-balanced response from any instrument.

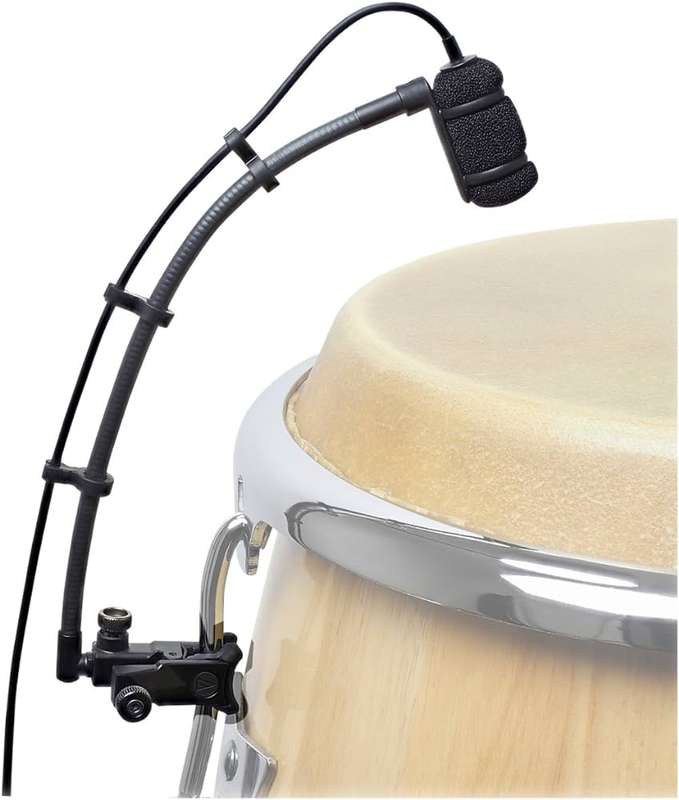

When teamed with the included AT8491U universal clip-on mount and strong, flexible AT8490L 9" gooseneck, the mic can be clipped securely to the bell of your instrument and positioned to stay where you want it the gooseneck won't flop around no matter how aggressively you move the instrument as you play. The microphone's cardioid polar pattern isolates the instrument by reducing side and rear pickup, and the switchable 80 Hz high-pass filter on the in-line power module helps control undesired low-frequency noise. The system also includes an AT8468 violin mount with hook-and-loop fastener and a protective carrying case.
Features:
Low-profile mic design for minimum visibility
Crisp, clear, well-balanced microphone response, even at high SPLs
Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source

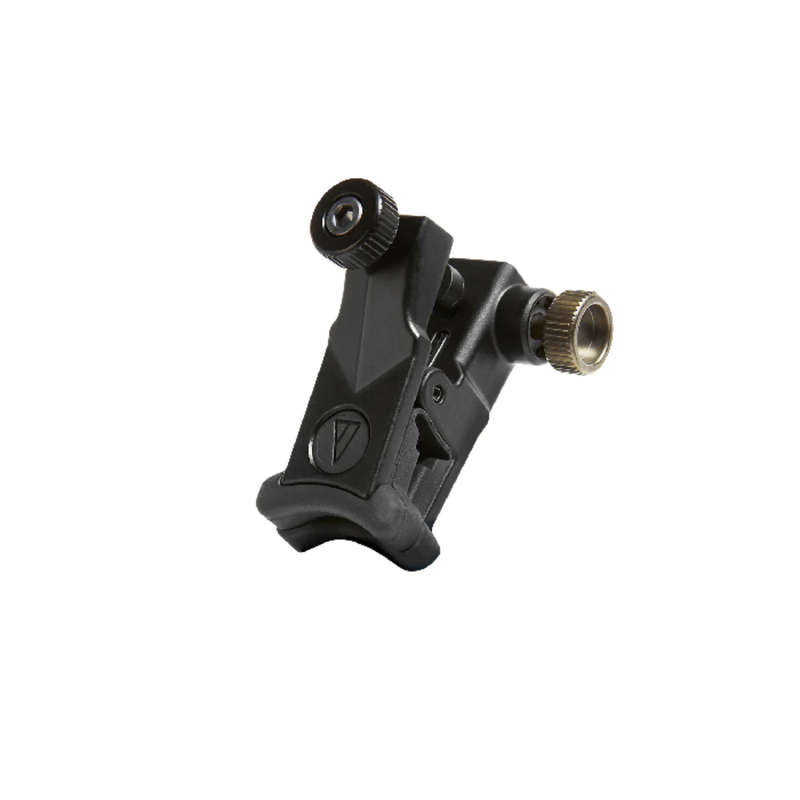

UniMount® universal clip-on mount attaches securely to instrument bell and provides excellent shock resistance for the microphone
Rugged UniMount® 9" gooseneck rigidly holds its shape, keeping microphone accurately positioned even during aggressive play
In-line power module is equipped with a switchable 80 Hz high-pass filter to control undesired ambient noise
Interchangeable elements available for hypercardioid and omnidirectional polar patterns
Included violin mount with hook-and-loop fastener provides an additional mounting option
Specifications:
Microphones
Element Fixed-charge back plate, permanently polarized condenser
Polar Pattern Cardioid
Frequency Response 40 20,000 Hz
Low Frequency Roll Off 80 Hz, 12 dB/octave
Open Circuit Sensitivity 49 dB (3.5 mV) re 1V at 1 Pa
Maximum Input Sound Level 159 dB SPL, 1 kHz at 1% T.H.D.
Dynamic Range 130 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio 65 dB, 1 kHz at 1 Pa
Phantom Power Requirements 11 52V DC, 3.5 mA typical
Switches Flat, roll-off
Weight Microphone:
14.5 g (0.5 oz)
Power Module:
90 g (3.2 oz)
Cable 4.0 m (13.1') long (permanently attached to microphone), 3.2 mm (0.13") diameter, 2-conductor shielded cable with HIROSE HR10-type connector
Dimensions Microphone:
37.8 mm (1.49'') long,
12.2 mm (0.48'') maximum body diameter
Power Module:
92 mm (3.62") long,
18.9 mm (0.74") diameter
Output Connector Power Module:
Integral 3-pin XLRM-type
Accessories Included ATM350a cardioid condenser microphone; AT8543 power module; AT8491U UniMount® universal clip-on mount; AT8490L UniMount® 9" gooseneck; AT8468 violin mount (hook-and-loop fastener); protective carrying case
