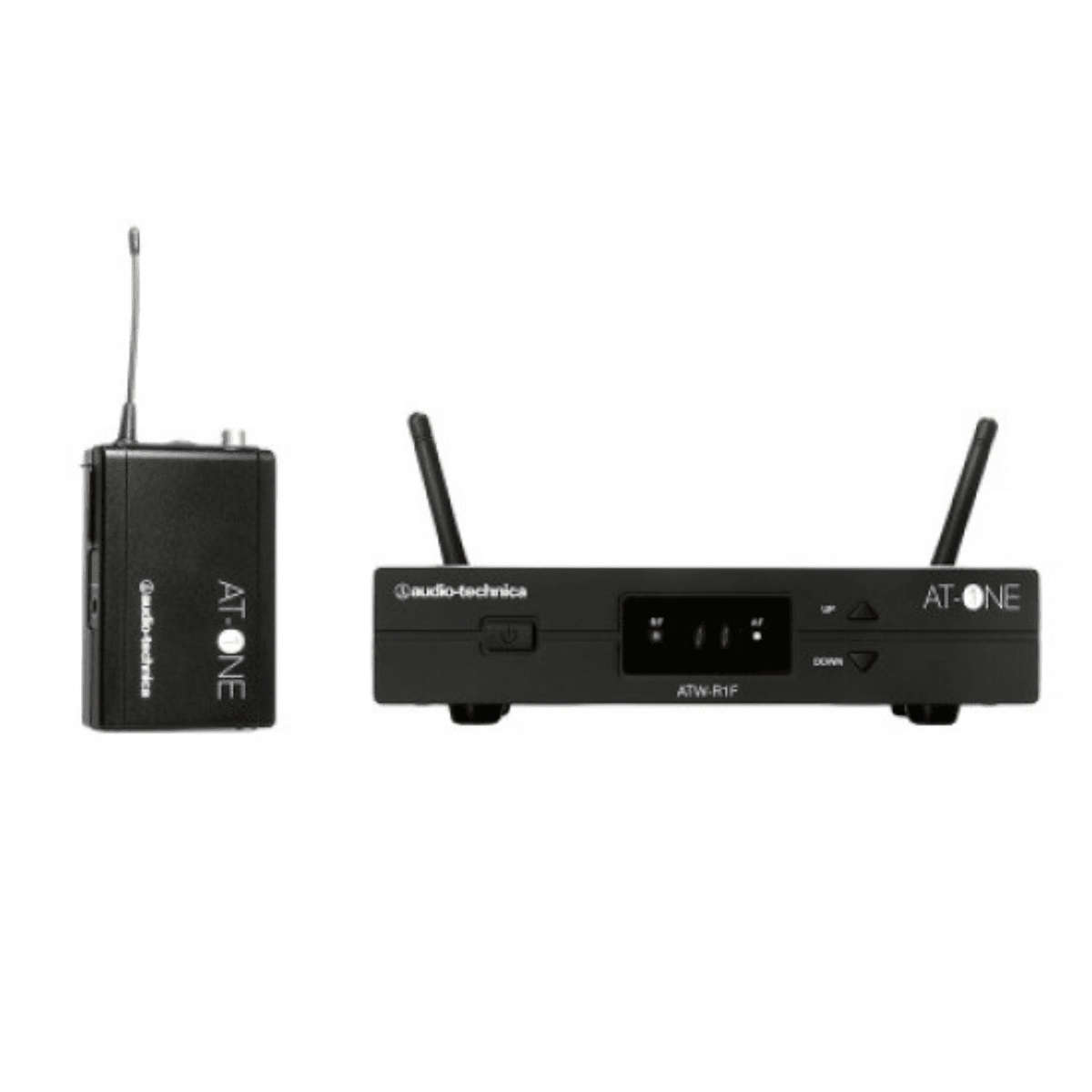

Audio Technica ATW-11DE3

AT-One, Audio-Technica's entry-level UHF wireless system. With a 2 x 4 channel frequency plan for enhanced flexibility, sturdy but stylish build quality and a simple user interface, AT-One is ready to become your perfect wireless companion.

AT-One is designed with simplicity and ease of use in mind. Equipped with a practical carrying case, rack-mount kit and detachable antennae, AT-One is the perfect balance of price and performance, ideal for those looking for accurate, reliable performance at an entry-level price. The AT-One's frequency plan is divided into two groups with 4 available channels in each group split between the Europe-wide license-free frequency range and the LTE duplex gap. Users can choose up to 4 channels within one group.

Available in three configurations, AT-One can be purchased with a belt pack or handheld transmitter. The ATW-11 comes equipped with a sturdy, discreetly designed belt pack, providing 10mW RF output power, a damping switch and a battery life of 10 hours.

Key Features

• Designed for quick and easy use
• Perfect balance between price and performance, the AT-One is ideal for those looking for reliable results at low prices
• The frequency plan of AT-One is divided into two groups with 4 channels available in each group, one in the range of authorized European frequencies and the other in the duplex Gap
• Users can choose up to 4 channels in a group
• The ATW-11 system is equipped with a discreet and robust pocket transmitter
• RF transmission power 10mW
• The bodypack transmitter has a 4-pin HRS connector, which is able to connect to all Audio-Technica wireless microphones
• Up to 10 hours of battery life with 2 x 1.5V AA batteries
• RF Indicator light
• Robust construction from high-quality components
• Delivered in a transport case with a rack mount kit and detachable antennas

General Specifications

• Operating Frequencies: DE3 Band: 482 - 512 MHz
• Number Of Channels: 2 x 4 frequencies
• Frequency Stability: +/- 0.005%, Phase lock loop frequency control
• Modulation Mode: FM
• Frequency Response: 60 Hz - 16 kHz
• Operating Range: 60m, typical

Receiver

• Receiving System: Antenna switching diversity
• Image Rejection: 55dB minimum
• Dynamic Range: HH: 108 dB, BP 103 dB (@ max deviation)
• Sensitivity: 10dBµV (S/N 60dB @ 20 kHz deviation)
• Total Harmonic Distortion: <1% - 20 kHz deviation @ 1 kHz
• Audio Output Unbalanced: -2dBV
• Audio Output Balanced: 4dBV
• Output Connectors (Microphone) Balanced: XLRM-type
• Output Connectors (Instrument) Unbalanced: 6.3 mm mono jack
• Maximum Output Level: Mic / Line (0 / -20dB)
• Antenna Input: BNC type, 50 - BIAS voltage 12V DC 100mA each
• Dimensions (WxDxH): 200mm x 122mm x 42mm
• Weight 418 g without accessories
• Accessories Included AC Adapter, Antennas, Rack mount adapter, protective carrying case

Belt Pack

• RF Power Output 10 mW
• Spurious Emissions Following national regulations
• Input Connections
  • Pin 1: GND
  • Pin 2: INST
  • Pin 3: Mic
  • Pin 4: DC Bias +10V
• Battery Type: Two 1.5V AA alkaline (not included)
• Battery Life: 10 hours - depending on battery type and use pattern
• Dimensions (WxDxH): 66mm x 22mm x 98
