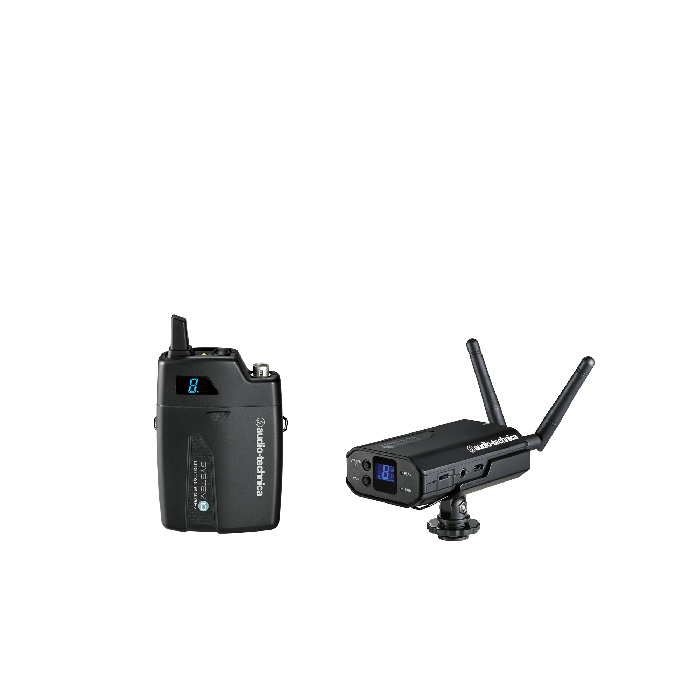

The ATW-1701 is a high-quality wireless microphone system that includes the ATW-R1700 receiver and ATW-T1001 body-pack transmitter. It operates within the 2.4 GHz ISM band, offering exceptional performance for various audio applications. Whether for live performances, presentations, or public speaking engagements, this wireless system provides reliable connectivity and clear sound reproduction
Complete wireless microphone system with receiver and body-pack transmitter
Operating frequencies in the 2.4 GHz ISM band (2400 to 2483.5 MHz)
Wide frequency response range of 20 Hz to 20 kHz (depending on microphone type)
Operating range of 30 m (100) radius, 60 m (200) diameter in typical open range environments
Diversity receiving system ensures reliable signal reception (frequency/time/space)
Body-pack transmitter with 10 mW RF power output for strong signal transmission
Compatible with microphones or cables featuring a cW-style locking 4-pin connector
Receiver features balanced and unbalanced output options for versatile connectivity
Internal rechargeable Li-ion battery in the receiver provides long-lasting performance
Body-pack transmitter operates on two 1.5V AA batteries (not included), offering over 7 hours of battery life
Accessories included: AT8456a Quiet-Flex stand clamp, antennas, camera shoe mount, AC adapter, USB cable, and stereo cable
| Overall System | |
|---|---|
| Operating Frequencies | 2.4 GHz ISM band (2400 to 2483.5 MHz) |
| Frequency Response | 20 Hz to 20 kHz Depending on microphone type |
| Operating Range | 30 m (100) radius, 60 m (200) diameter typical Open range environment with no interfering signals |
| Total Harmonic Distortion | <0.05% typical |
| Operating Temperature Range | 0 C to +40 C (32 F to 104 F) Battery performance may be reduced at very low temperatures |
| Audio Sampling | 24 bits / 48 kHz |
| Handheld Transmitter | |
|---|---|
| RF Power Output | 10 mW |
| Spurious Emissions | Following federal and national regulations |
| Battery Type | Two 1.5V AA not included |
| Battery Life | >7 hours (alkaline) Depending on battery type and use pattern |
| Dimensions | 254.8 mm (10.03) long, 50.0 mm (1.97) diameter |
| Net Weight | 280 grams (9.9 oz) without batteries |
| Accessories Included | AT8456a Quiet-Flex stand clamp |
| Body Pack | |
|---|---|
| RF Power Output | 10 mW |
| Battery Life | >7 hours (alkaline) Depending on battery type and use pattern |
| Battery Type | Two 1.5V AA not included |
| Dimensions | 70.2 mm (2.76) W x 107.0 mm (4.21) H x 24.9 mm (0.98) D |
| Input Connections | Four-pin Locking Connector Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V |
| Net Weight | 100 grams (3.5 oz) without batteries |
| Spurious Emissions | Following federal and national regulations |
| Receiver | |
|---|---|
| Receiving System | Diversity (frequency/time/space) |
| Maximum Output Level | 3.5 mm (1/8), TRS balanced: +6 dBV Dual mono, unbalanced: 0 dBV |
| Power Supply | 100-240V AC (50/60 Hz) to 5V DC 0.5A switched mode external USB-type external power supply |
| Operating Temperature Range | 40 F (4 C) to 110 F (43 C) |
| Dimensions | 56.0 mm (2.20) W x 91.4 mm (3.60) H x 27.8 mm (1.09) D |
| Weight | 105 grams (3.7 oz) |
| Accessories Included | Two antennas; camera shoe mount; AC adapter (USB-type); USB cable; 3.5 mm (1/8) stereo cable |
| Battery Current/Life | 12 hours Depending on environmental conditions Battery Charging Time: 4 hours 30 minutes Depending on environmental conditions Charging Temperature Range: 5 C to +35 C (41... |
