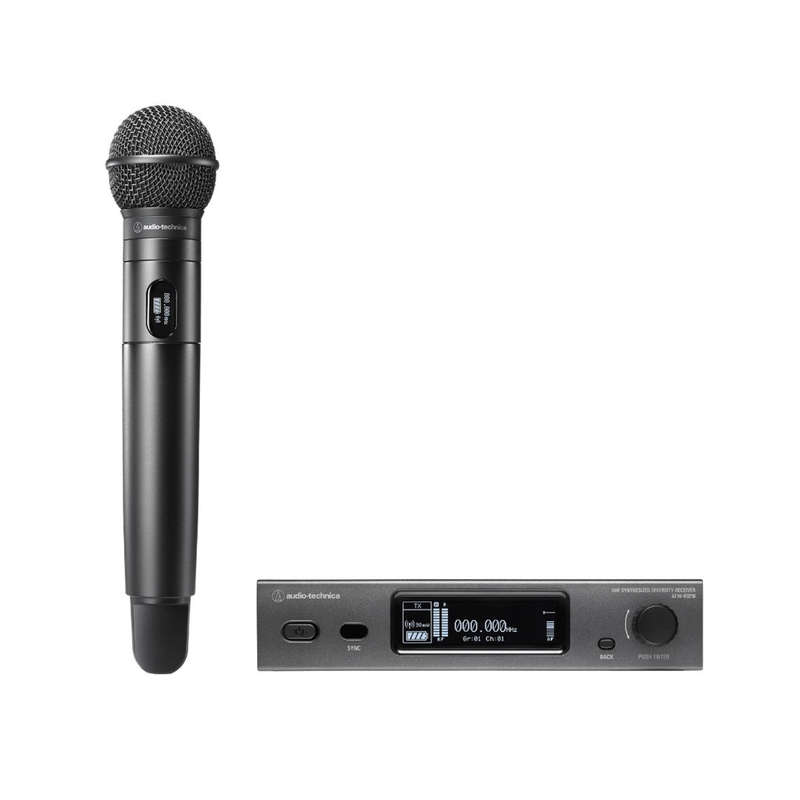

The Audio-Technica ATW-3212/C510 wireless microphone system features a true diversity receiver and an ATW-T3202 handheld transmitter with an ATW-C510 cardioid dynamic microphone capsule. It offers an extensive frequency range with 2395 frequencies in Band DE2 and 2400 frequencies in Band EE1, ensuring reliable performance in crowded environments. With a range of up to 100 meters and a battery life of up to 9 hours, this system provides exceptional audio quality and flexibility for live performances, presentations, and recordings.
Features:

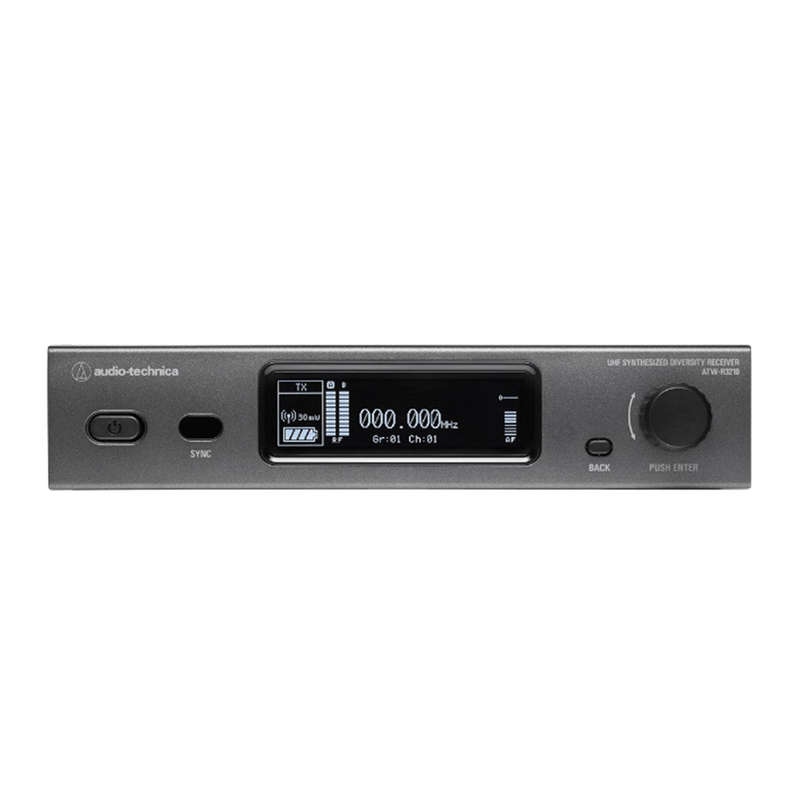

True Diversity Receiver: The Audio-Technica ATW-R3210 receiver utilizes a true diversity design that minimizes dropouts and enhances audio signal reliability. By continuously selecting the stronger of two receiver signals, it ensures consistent performance, even in challenging RF environments. This feature is essential for maintaining audio clarity during live performances.
Wide Frequency Range: The system operates across multiple frequency bands, offering an extensive range of frequencies. Band DE2 provides 2395 frequencies, while Band EE1 offers 2400 frequencies. This variety allows users to easily find an unobstructed channel, ensuring optimal performance in crowded venues or environments with high RF interference.
Interchangeable Microphone Capsule: The ATW-C510 cardioid dynamic microphone capsule is interchangeable, allowing users to tailor their audio setup according to specific needs. This versatility enables performers to switch capsules based on their vocal characteristics or the acoustic environment, optimizing sound quality for various applications.
Impressive Operating Range: With a reliable operating range of up to 100 meters (328 feet), the ATW-3212/C510 provides freedom of movement during performances. This extensive range is particularly beneficial for presenters and performers who require mobility without compromising audio quality.

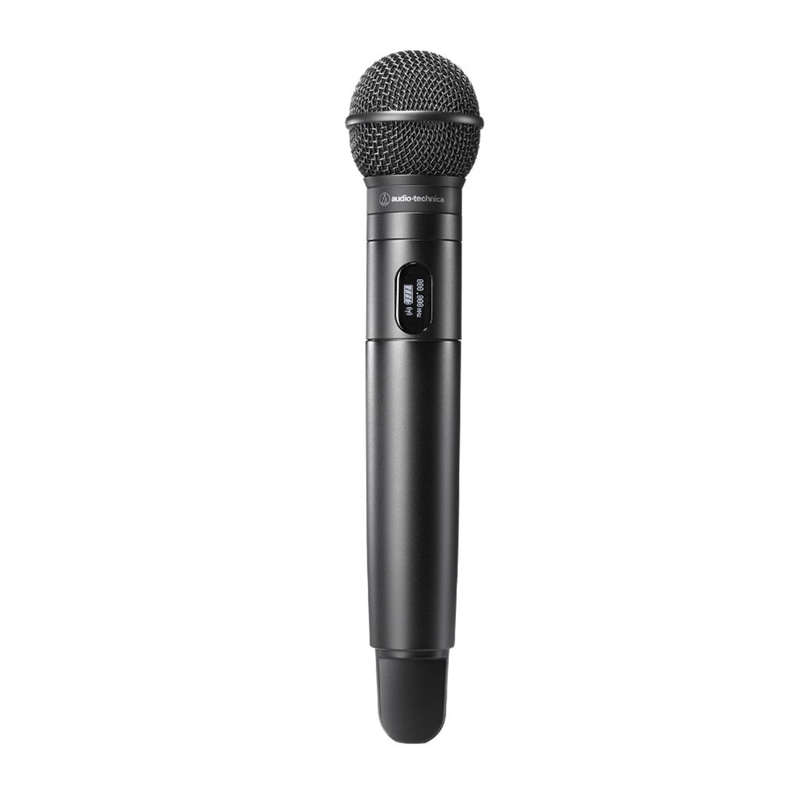

Robust Battery Life: The ATW-T3202 handheld transmitter is powered by two AA batteries, delivering impressive battery life. Under optimal conditions, it offers up to 9 hours of continuous operation, ensuring that users can perform without worrying about power interruptions.
Flexible Antenna Design: Equipped with flexible UHF antennas, the ATW-3212/C510 enhances signal reception. This design helps mitigate interference and ensures consistent performance, regardless of the venue's layout or audience dynamics.
Durable Operating Conditions: Designed to withstand a variety of environments, the system operates effectively in temperatures ranging from -5° C to +45° C (23° F to 113° F). This durability makes it suitable for outdoor events as well as indoor performances, providing versatility for different settings.
Specifications:
- Overall System:
- Operating Frequencies: Band DE2: 470.125 to 529.975 MHz (2395 frequencies); Band EE1: 530.000 to 589.975 MHz (2400 frequencies)
- Minimum Frequency Step: 25 kHz
- Modulation Mode: FM
- Maximum Deviation: ATW-T3201: ±38 kHz; ATW-T3202: ±36 kHz
- Frequency Response: ATW-T3201: 31 Hz to 15,500 Hz; ATW-T3202: 25 Hz to 16,700 Hz
- Operating Range: 100 m (328)
- Total Harmonic Distortion: <1.0%
- Operating Temperature Range: -5° C to +45° C
- Simultaneous Use: 40 Channels per band (dependent on region)
- Handheld Transmitter:
- RF Power Output: High: 30 mW; Low: 10 mW
- Microphone Capsule: Interchangeable industry standard thread
- Battery Type: Two 1.5V AA (not included)
- Battery Life: High: 8.0 hours (alkaline); Low: 9.0 hours (alkaline)
- Receiver:
- Receiving System: True Diversity
- Image Rejection: 60 dB nominal
- RF Sensitivity: 20 dBuV at 60 dBA S/N ratio
- Maximum Output Level: XLR balanced: +14 dBV
