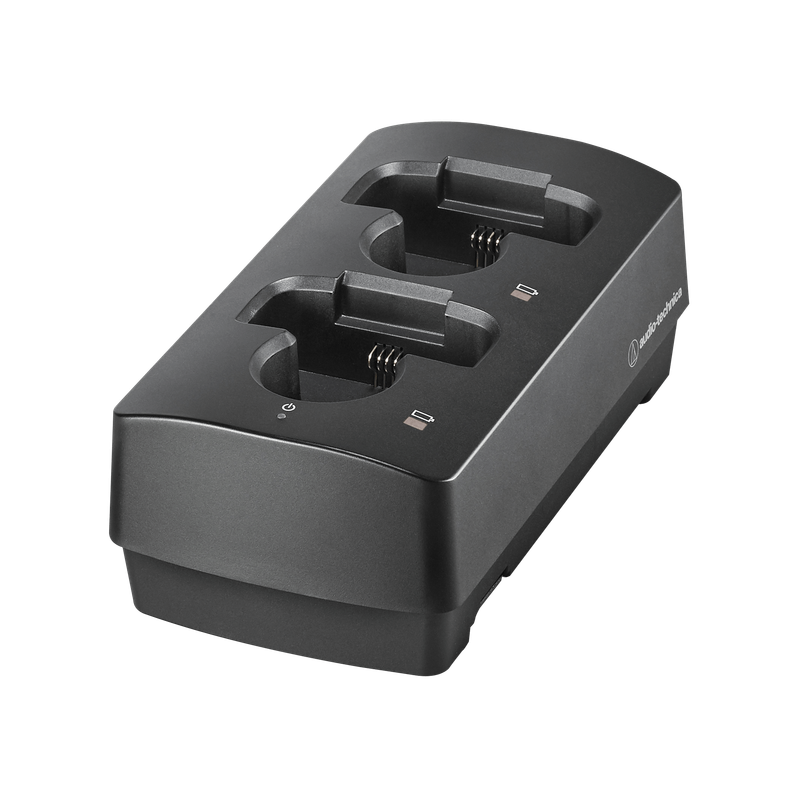

Audio-Technica ATW-CHG3 Body Pack Two-Bay Charging Station (3000 Series)

Audio-Technica ATW-CHG3 Body Pack Two-Bay Charging Station (3000 Series)

Overview:

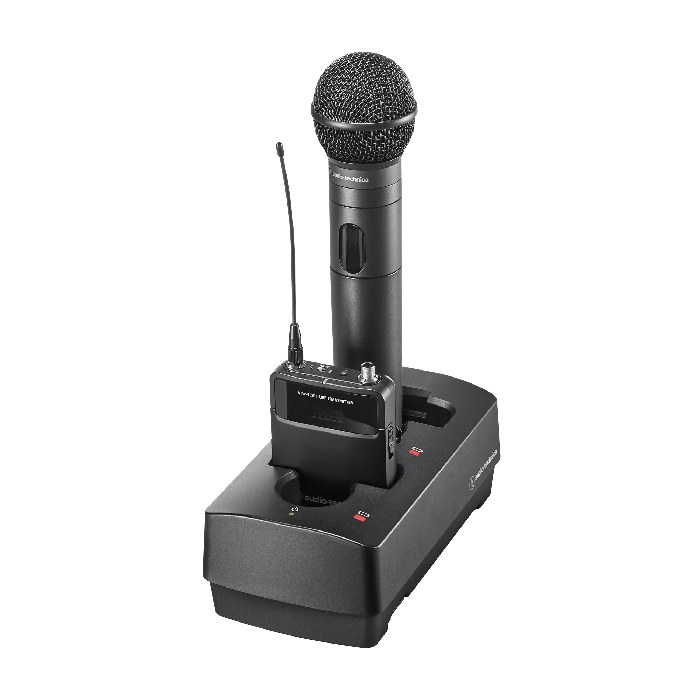

Two-bay charging station for use with 3000 Series (fourth generation) handheld (ATW-T3202) and body-pack (ATW-T3201) transmitters
Charges NiMH batteries while they are housed within a transmitter
Automatically shuts off if alkaline or damaged batteries are detected
Indicator LEDs for easy monitoring of power and charging status
Up to five ATW-CHG3 charging stations can be linked and powered by a single power supply (using AT8687 link kit and AD-SA1230XA AC adapter, sold separately)
Transmitters power off automatically when placed in the charging station and power on automatically when removed

Features:

The ATW-CHG3 is a two-bay charging station for use with 3000 Series (fourth generation) handheld (ATW-T3202) and body-pack (ATW-T3201) transmitters. The station charges NiMH batteries (not included) while they are housed within a transmitter. It will automatically shut off if alkaline or damaged batteries are detected. Once fully charged, a maintenance charging function ensures that batteries retain their full power for as long as the transmitter remains in the charging station. The ATW-CHG3 is equipped with power and charging status indicator LEDs for easy monitoring. Using the AT8687 link kit and AD-SA1230XA AC adapter, up to five ATW-CHG3 charging stations can be linked and powered by a single power supply. The AT8687 and AD-SA1230XA may be purchased separately or bundled with an ATW-CHG3 charging station: ATW-CHG3EXP (charger and link kit), ATW-CHG3AD (charger and AC adapter). Specifications: Power Requirements: 12V DC 3.0 A Charging Output: 3.6V DC 500 mA (x2) Power Consumption: 4.9 W (when 2 transmitters are charging) 27.4 W (when 5 units are connected and 10 transmitters are charging) Charging Time: Approx. 6.5 hours (1,900 mAh rechargeable battery) Depending on battery type and use pattern. Operating Temperature Range: 0° C to 40° C (32° F to 104° F) Dimensions: 185 mm (7.28") x 99 mm (3.90") x 68.5 mm (2.70") (W x D x H) Net Weight: 400 g (14.1 oz)

Specifications:

Charging Unit
Power Supply DC12V 3.0A
Power Consumption 4.9W (when 2 transmitters are charging)
27.4W (CHG3×5) (5 units are connected and 10 transmitters are charging)
Charging Time Approx. 6.5 hours (1,900 mAh rechargeable battery)*
Weight 400 g
Accessories Separately available - AC adapter (AD-SA1230XA), ATW-CHG3 Link kit (AT8687)
