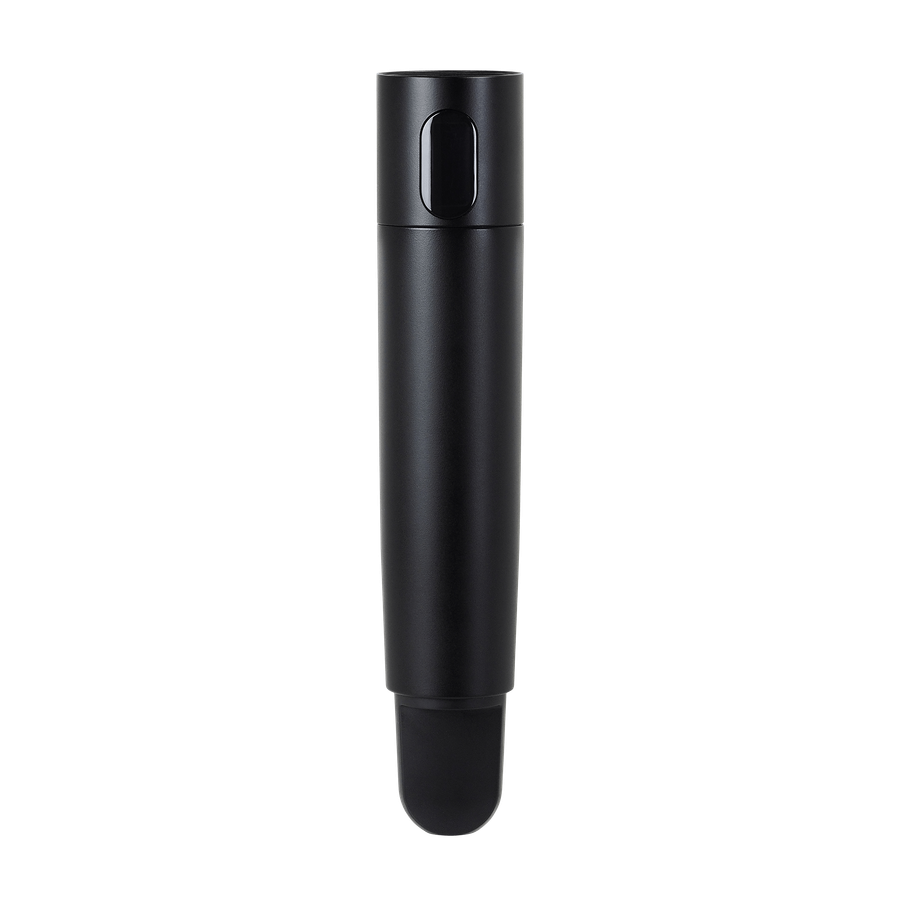

Audio-Technica ATW-DT3102 3000 Digital Series Handheld Transmitter
Overview:
Audio-Technica's ATW-DT3102 is part of the 3000 Digital Series. This audio transmitter offers extremely low handling noise and the system is equipped with a newly developed original codec designed for high-quality audio. The ATW-DT3102 comes with a protective carrying case for easy and convenient transport.

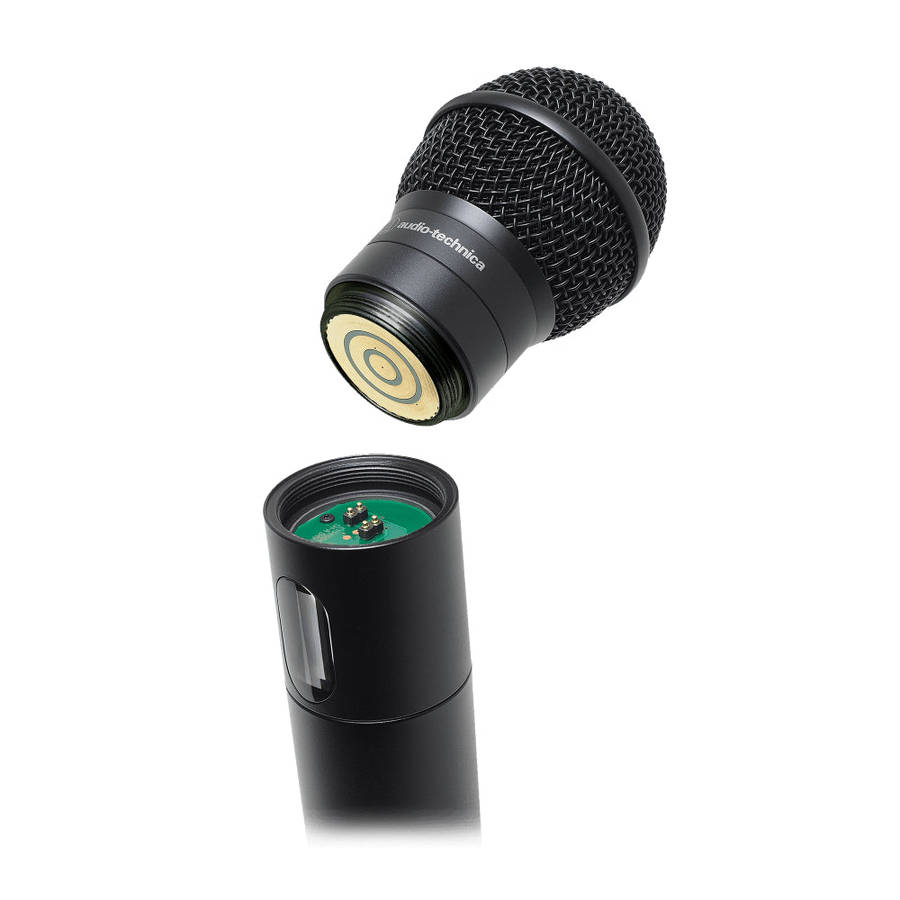

Interchangeable Microphone Capsules

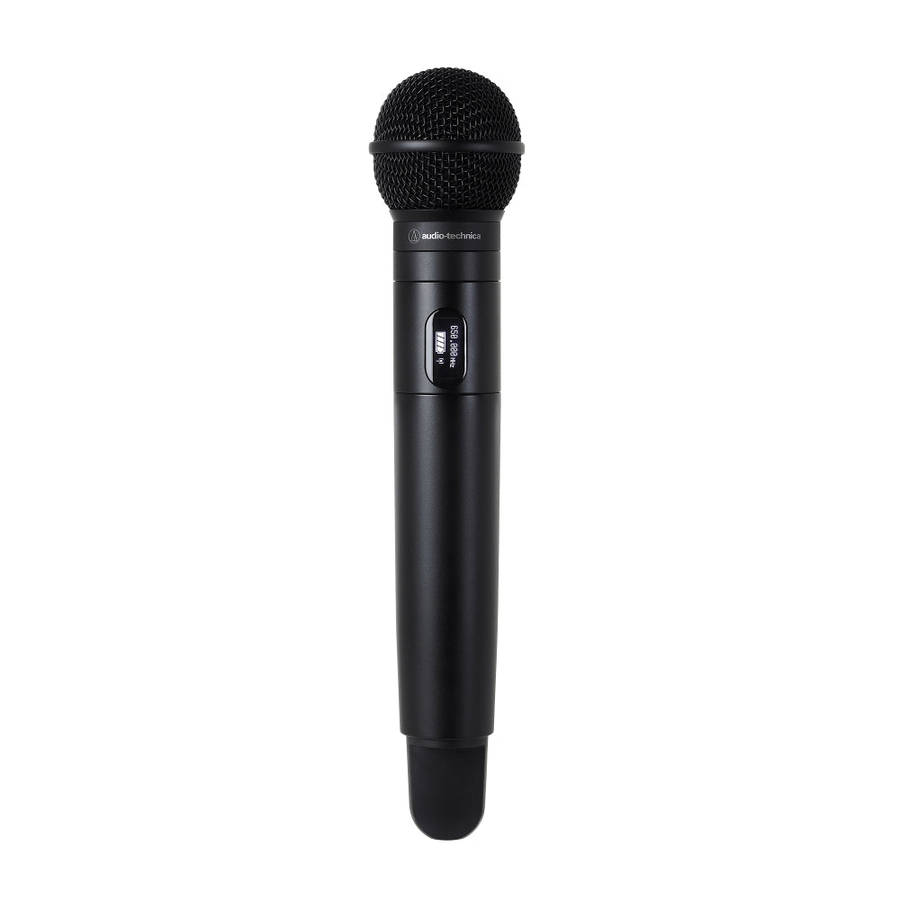

The ATW-DT3102 can be used with Audio-Technica's interchangeable cardioid and hypercardioid microphone capsules, as well as various other compatible capsules. The ATW-DT3102 is currently compatible with the standard models ATW-C510 and ATW-C710, as well as the flagship model Artist Elite series interchangeable microphone capsules.
Secure Transmission
The ATW-DT3102 utilises a 4-digit code as a common encryption to ensure that only the set microphone and receiver can communicate. Enhanced security settings also protect audio signals from eavesdropping and leakage so you can have total confidence in your sound system.
Eliminate Interference With Ease
The ATW-DT3102 audio transmitter utilises a unique multifunction button that can be used to switch to a backup frequency should any interference occur. This can be applied to both the transmitter and receiver to ensure a comfortable audio experience without interruptions.
Wireless Manager
Monitor your system's performance with ease thanks to the free of charge software, which allows you to monitor frequency coordination, equipment status, log display and charging status information. Conduct a walk test within the field environment to provide real-time information about your wireless system coverage.
Smart Charging Technology
The ATW-DT3102 3000 Digital Series handheld transmitter utilises an eco-friendly and safe design to ensure efficient battery life and a smooth charging experience.
The transmitter can be fully charged in about 6.5 hours, with the ability to charge up to two transmitters in one charging unit at the same time with a NiMH battery.
Easy & Sustainable Powering
The ATW-DT3102 handheld transmitter can be powered by AA batteries, so you'll never be left powerless. If your performance goes on for longer than expected or you forget to charge your equipment, simply insert two AA alkaline batteries and the show will go on! Of course, we always recommend using rechargeable batteries for a more efficient and eco-friendly experience.
Features:
High-quality sound transmitter compatible with microphone capsules that can be selected according to the application.
Equipped with Audio-Technica's original codec designed for high sound quality.
Achieves a latency of 2.5ms.
Low handling noise and includes an industry-standard thread mount for use with interchangeable A-T microphone capsules, as well as other compatible capsules.
Unique multifunction button can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered.
-10 to 20 dB can be changed in 2 dB steps.
Charging terminals work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries.
Specifications:
Handheld Transmitter
RF Power Output High: 20 mW, Mid: 10 mW, Low: 2 mW
Battery Type Two alkaline or nickel-metal hydride 1.5 V AA batteries
Battery Life When using nickel-metal hydride 1.5 V AA batteries: Approx. 7 hours (1900 mAh High), approx. 9 hours (2500 mAh High) When using alkaline 1.5 V AA batteries: Approx. 6 hours (High)
High-pass filter (low-freq. roll-off) 80 Hz, 120 Hz, 160 Hz, 12 dB/octave
Operating Temperature Range 5°C to +40°C (23°F to 104°F)
Dimensions 193 mm (7.60") × 37 mm (1.46") (without microphone capsule)
Net Weight Approx. 205 g (7.23 oz)
Accessories Included Carrying case, AT8456a Quiet-Flex microphone stand clamp
