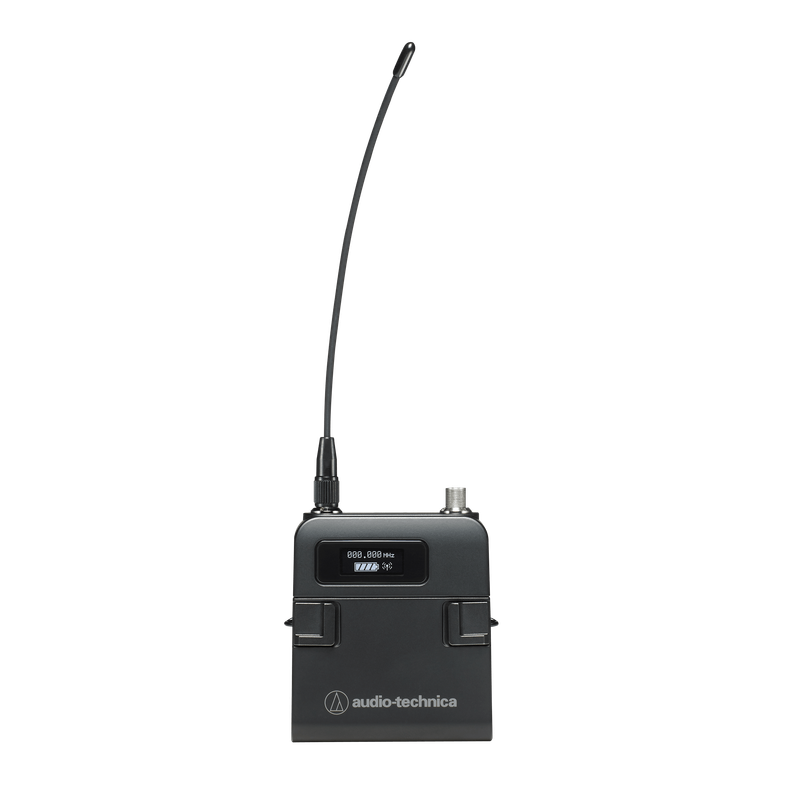

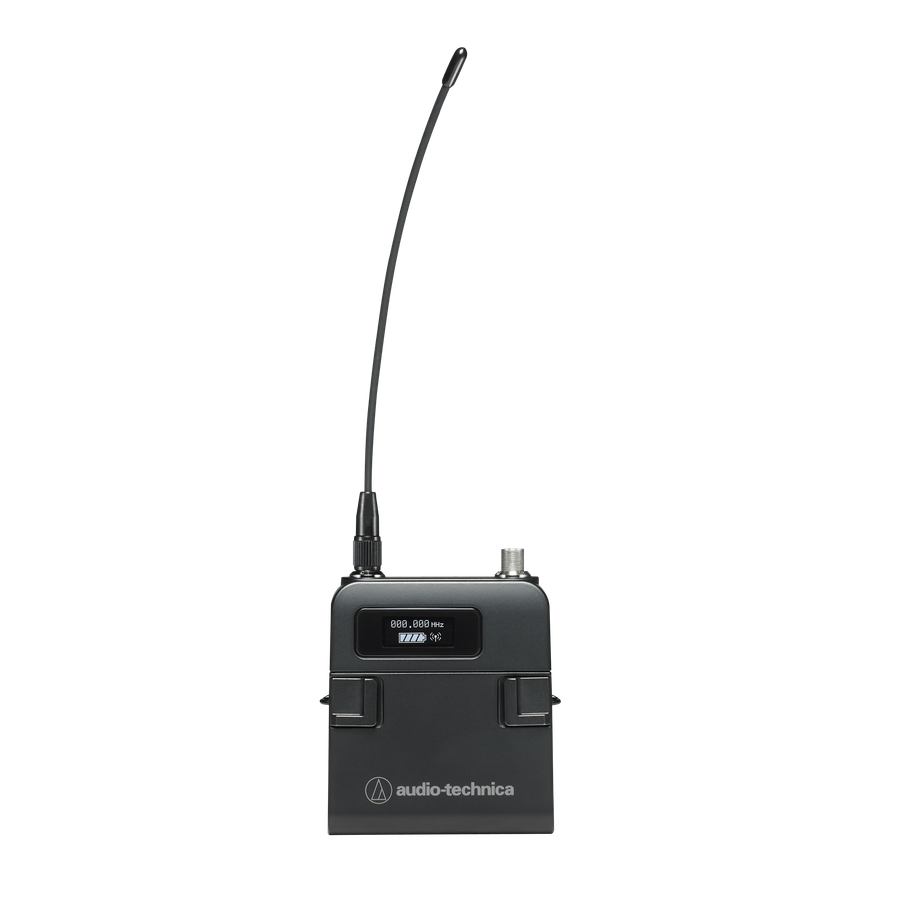

Audio-Technica ATW-T5201 5000 Series body-pack transmitter with cH-style screw-down 4-pin connector

Audio-Technica ATW-T5201 5000 Series body-pack transmitter with cH-style screw-down 4-pin connector

Overview:

5000 Series body-pack transmitter with cH-style screw-down 4-pin connector.

Select a microphone or cable with a cH-style screw-down 4-pin connector to use with the ATW-T5201 body-pack transmitter.

Features:

Unique multifunction button can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
Rugged, ergonomic metal body, highly visible OLED displays, programmable features, soft-touch controls, and switchable 2/10/50 mW RF power
Rugged cH-style connector provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector

Specifications:

Overall System
Operating Frequencies Band DE1: 470.125 to 590.000 MHz
Band EG1: 580.000 to 699.875 MHz
Band GH1: 700.125 to 819.875 MHz
Note that some frequency bands might not be available in country or region in which you live, or could come with a
Minimum Frequency Step 25 kHz
Modulation Mode FM
Maximum Deviation ±40 kHz (THD:10%)
Frequency Response 23 to 16,300 Hz Depending on attached microphone element.
Operating Range 100 m (328') Open range environment with no interfering signals.
Dynamic Range Mic input: 120 dB or higher (A-weighted), typical Inst input: 107 dB or higher (A-weighted), typical
Total Harmonic Distortion 1.0 % or less (at 1 kHz, ±17.5 kHz deviation)
Operating Temperature Range -5°C to +45°C
Body Pack
RF Power Output High: 50 mW, Mid: 10 mW, Low: 2 mW (switchable), at 50 ohms May differ depending on the country or region in which you live.
Battery Life High: 7 hours, Mid: 9 hours, Low: 10.5 hours (alkaline) Depending on battery type, usage and environmental conditions.
Battery Type Two 1.5V AA, not included
Dimensions 64 mm × 70 mm × 17 mm (W × D × H)
Input Connections Pin 1: GND
Pin 3: MIC INPUT
Pin 2: INST INPUT
Pin 4: DC BIAS +10 V
Net Weight Approx. 92 g
Spurious Emissions Following federal and national regulations
