Audio-Technica ES947C/FM3 Cardioid Condenser Boundary Microphone with 3-Pin XLR Output and Local Muting
Overview:
ES947C/FM3
This phantom-powered cardioid condenser boundary microphone features a 3-pin XLR output connector with a capacitive touch switch that enables local muting of the microphone.
Designed for clear, highly intelligible conferencing, recording, monitoring and other demanding sound pickup applications, the ES947C/FM3 mounts unobtrusively in tabletops or panels, but includes a highly visible two-state RGB LED ring (7 selectable colors + OFF) to indicate mute status.
The microphone's cardioid polar pattern provides a 120° pickup angle. A rugged all-metal case with a two-layer steel mesh grille protects the microphone element, while our UniGuard® RFI-shielding technology provides outstanding rejection of radio frequency interference (RFI).

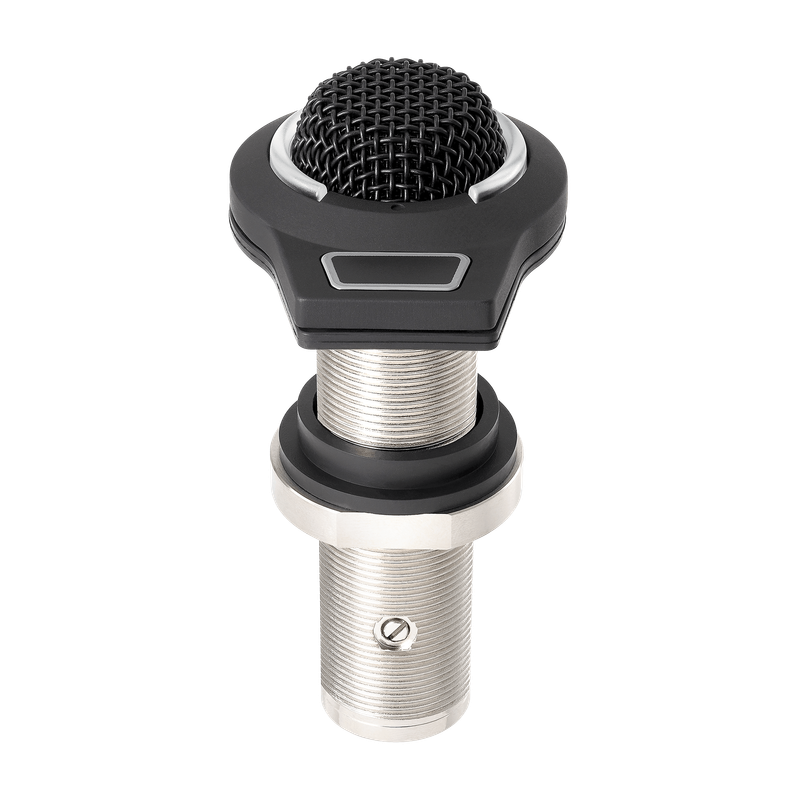

The ES947C/FM3 is equipped with a self-contained power module, eliminating the need for an external one, and comes with a pair of rubber isolators for optional mechanical isolation from the mounting surface.
Features:
Designed for surface-mount applications such as conferencing, recording, monitoring and other demanding sound pickup applications
Capacitive touch switch enables local muting of the microphone

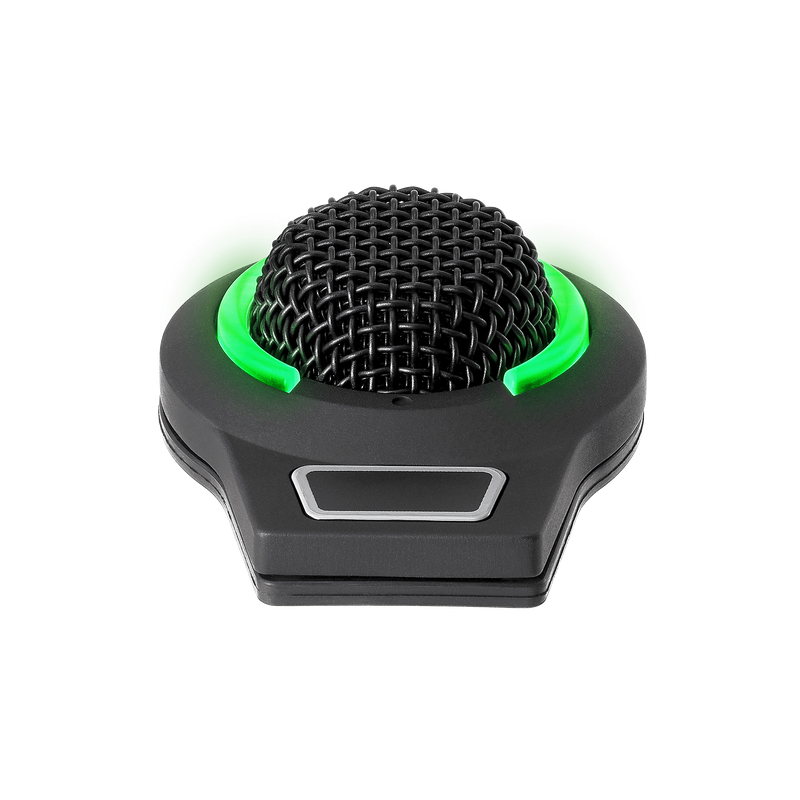

Highly visible two-state RGB LED ring (7 selectable colors + OFF) indicates mute status
Low-profile element provides uniform cardioid polar pattern with 120° acceptance angle
Mounts unobtrusively in tabletops and panels
Self-contained power module with 3-pin XLR output connector
Rugged all-metal case with a two-layer steel mesh grille
Rubber Isolators provide mechanical dampening of mounting-surface vibration
Requires 11V to 52V DC phantom power
UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
RoHS compliantfree from all substances specified in the EU directive on hazardous substances
Specification:
Microphone
Element Fixed-charge back plate, permanently polarized condenser
Polar Pattern Cardioid
Frequency Response 70-15,000 Hz
Open Circuit Sensitivity -37 dB (0 dB = 1V/Pa, 1 kHz)
Output Impedance 60 ohms
Maximum Input Sound Level 134 dB SPL (1 kHz at 1% THD)
Dynamic Range (typical) 110 dB (1 kHz at max SPL)
Signal-to-Noise Ratio 70 dB (1 kHz at 1 Pa, A-weighted)
Phantom Power Requirements 11-52V DC, 7.5 mA
Weight 59 g (2.1 oz)
Dimensions 38.0 mm (1.50") W x 48.0 mm (1.89") D x 84.8 mm (3.34") H
Output Connector 3-pin XLRM-type
Accessories Included Rubber isolators (two types), nut
