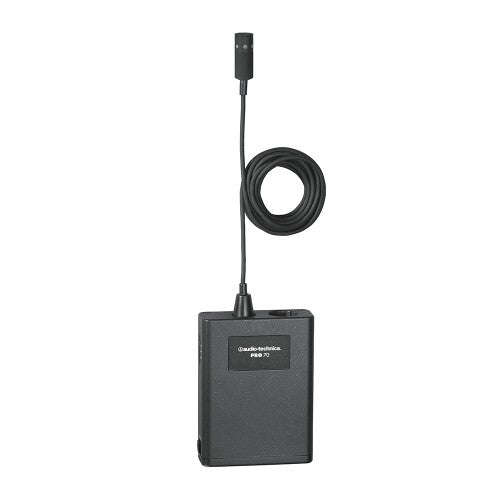

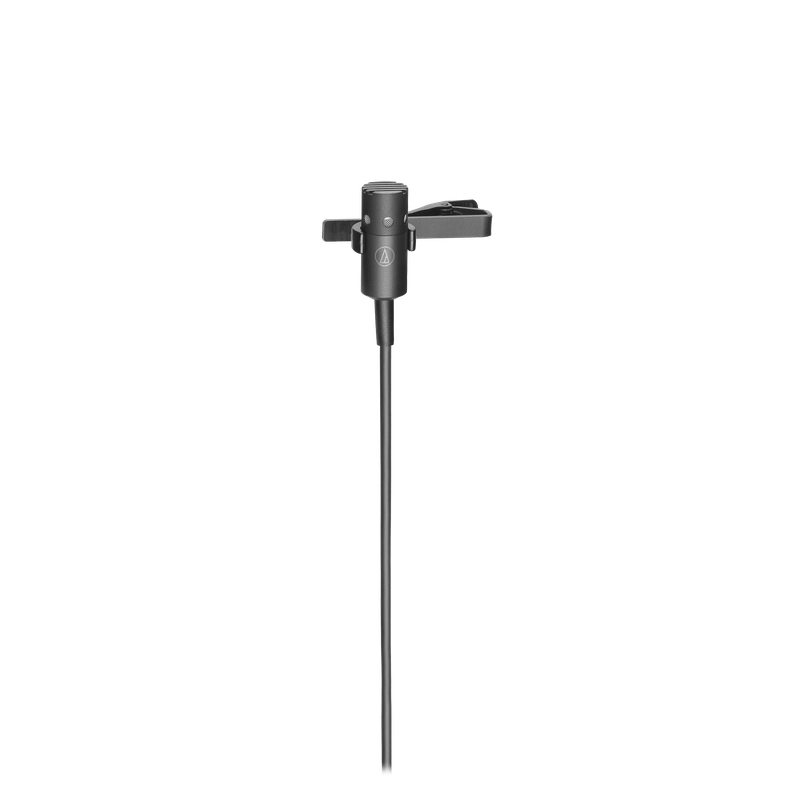

Audio-Technica PRO70 Cardioid Condenser Lavalier/Instrument Microphone
Overview:
This miniature condenser microphone achieves full-sounding pickup and is known for outstanding consistency and dependable performance. Supplied with both a clothing clip and guitar mount, it provides natural and articulate vocal reproduction when used as a clip-on lavalier and excels in pickup of acoustic guitar. The PRO 70 is designed to make music and speech clearly and comfortably audible, yet never draw attention to itself or its operation. The microphone is equipped with a low-frequency roll-off switch that allows for reduced pickup of room noise. The versatile PRO 70 may be powered by either battery or phantom power. Its cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of the desired sound source.
Features:
Miniature condenser microphone is ideal for both vocal and acoustic guitar applications
Natural and articulate vocal reproduction when used as a clip-on lavalierclothing clip included

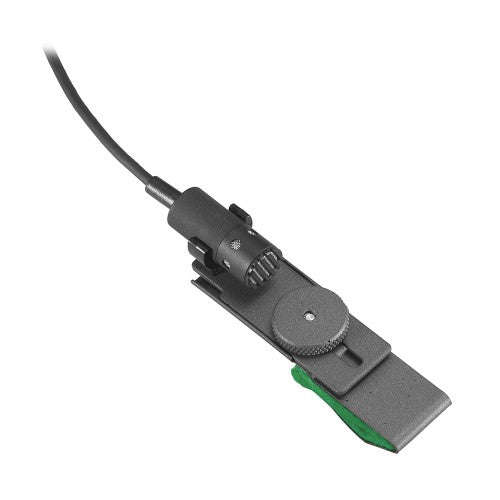

Excels in pickup of acoustic guitar with included instrument adapter
Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
Switchable low-frequency roll-off
Corrosion-resistant contacts from gold-plated XLRM-type connector
Operates on battery or phantom power
6' (1.8 m) cable permanently attached between microphone and power module
Specifications:
Microphones
Element Fixed-charge back plate, permanently polarized condenser
Polar Pattern Cardioid
Frequency Response 100-14,000 Hz
Low Frequency Roll Off 80 Hz, 18 dB/octave
Open Circuit Sensitivity Phantom: -45 dB (5.6 mV) re 1V at 1 Pa Battery: -45 dB (5.6 mV) re 1V at 1 Pa
Maximum Input Sound Level Phantom: 123 dB SPL, 1 kHz at 1% T.H.D. Battery: 123 dB SPL, 1 kHz at 1% T.H.D.
Dynamic Range Phantom: 96 dB, 1 kHz at Max SPL Battery: 96 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio 67 dB, 1 kHz at 1 Pa
Phantom Power Requirements 11-52V DC, 2 mA typical
Battery Type 1.5V AA/UM3
Battery Current/Life 0.4 mA / 1200 hours typical (alkaline)
Switches Off, on-flat, on-roll-off
Weight (microphone) 0.3 oz (8 g)
Weight (power module) 4.7 oz (134 g)
Cable Integral 6' (1.8 m), permanently attached between microphone and power module
Dimensions (power module) 3.27" (83.0 mm) H x 2.48" (63.0 mm) W x 0.87" (22.0 mm) D
Dimensions (microphone) 0.98" (25.0 mm) long, 0.40" (10.2 mm) diameter
Output Connector Integral 3-pin XLRM-type

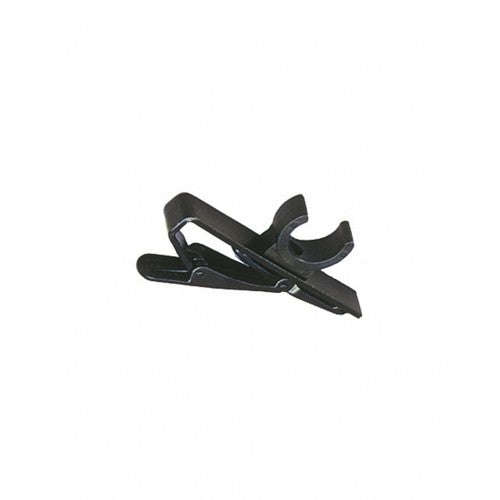

Accessories Included AT8411 clothing clip; AT8444 instrument adapter; power module; windscreen; battery; soft protective pouch
Audio-Technica Case Style M1
