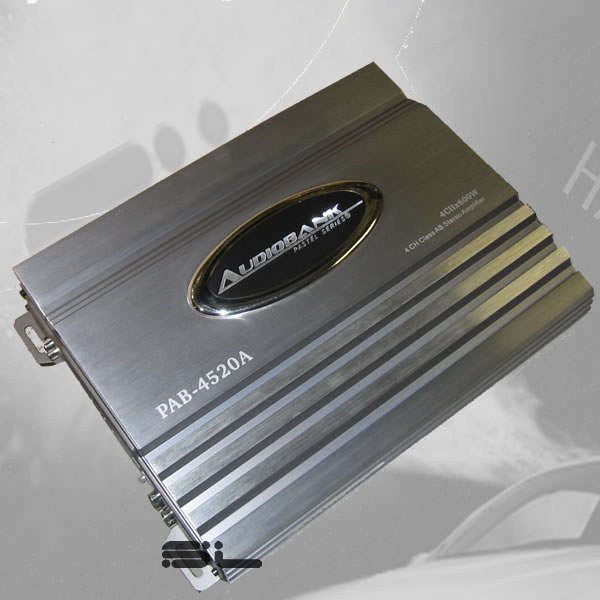

Audiobank Pastel series 4ch Class AB Amplifier
Amplifiers provide high-performance sound reinforcement for your mobile audio
equiptment, It's versatility enables compatibility with optional equilizers, frequency dividing network crossovers, and other audio processors in a customized system. The multi-mode bridging capabilities allow flexibility in
hosting several different speaker configurations.
Full Mosfet power supply
PWM circuitry
Full selectable crossover Hi/Low/Full
3 way protection circuit
2ohm stable stereo
Tri-mode capable
Variable Low pass 40hz - 250hz
Variable Hi pass 40-250hz
Variable 18db Bass Boost @ 40hz
Frequency responce: 10hz-30khz
S/N Ratio: 98db
THD: 0.02%
System distress indicator
4ga Power/ground connections
Platinum plated RCA Connectors
Line output
High/Low level inputs with floating ground
Max Power 2400w @ 2ohm
RMS @ 4ohms: 100w x 4
RMS @ 2ohms: 150w x 4
Mono RMS: 600w
Damping factor: >200
Input sensitivity: 0.2 - 6v
Crossover slope: 12db
Subwoofer Eq: 0 - 18db
Subwoofer eq Frequency: 40 - 120hz
Dimensions (inches) l x h x w: 14.2 x 2.4 x 10.4
Model: PAB-4520A
