OVERVIEW

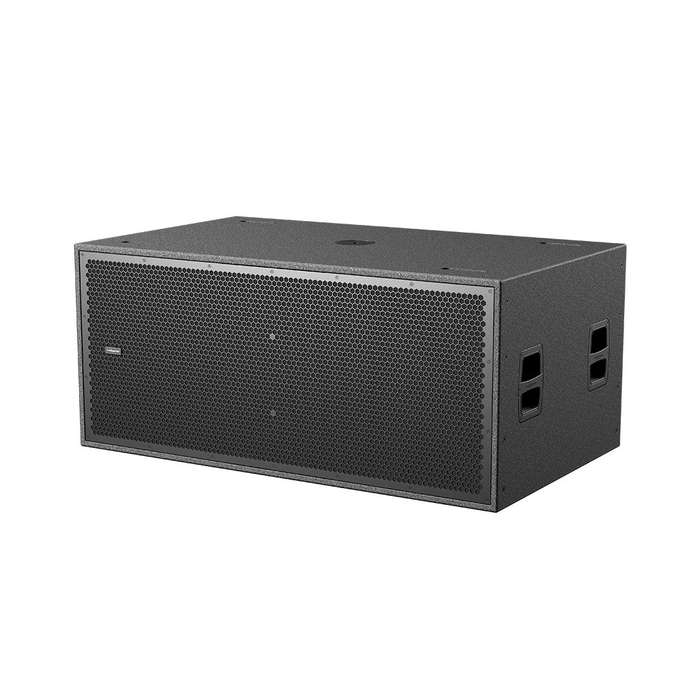

The AVANDA 218A is an active subwoofer specifically designed for mobile applications, rental companies and fixed installations; wherever exceptional sound quality is needed.
It features two custom-designed 18-inch neodymium drivers with a 4-inch voice coil.
The AVANDA 218A seamlessly complements Audiocenter's full-range loudspeakers, expanding the frequency response range. They deliver powerful, impactful low-end reinforcement.
With its modular design, the AVANDA 218A offers high flexibility, allowing a cardioid subwoofer pattern and large-scale speaker array configurations. It allows for suspension of up to 12 speakers, providing sound engineers with great convenience and flexibility for installation.
FEATURES
Long Excursion
High power handling
Low distortion
3 presets
High end DSP, with 96kHz signal sampling frequency
Enters sleep mode automatically if without signal input for 45mins
Class D amplifier
Advanced cooling system in the driver
Multilayer baltic birch plywood
Durable polyurea coating
Support hanging installation
SPECFICATIONS
Type: Active DSP-controlled Compact Subwoofer
Frequency Response (-10dB): 27Hz-110Hz
Maximum Calculated SPL/1M (Continuous/Peak): 138dB/144dB
LF Driver: Customized 2×18" Neodymium driver, 4.0" voice coil
DSP
Processor: 96kHz signal sampling frequency
Presets : 80Hz, 100Hz, Cardioid
AMPLIFIER
Amplifier Circuitry: Class D
Power (RMS standards: 4000W
Peak Power: 8000W
Frequency Response (1W 8 2ch): 20Hz-20kHz(±1dB)
Intermodulation Distortion: 0.1%
Total Harmonic Distortion: 0.1%
Cooling System: Cooling with fans, air convection
Protection: DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection
Signal Input: Female XLR
Signal Output: Male XLR
Power Input: Power connector
Working Voltage: 100-130V~/220-240V~(±10%,50/60Hz)
Power consumption (1/8 output power): 500W
CABINET
Cabinet Material: Multilayer baltic birch plywood
Coating: Durable Polyurea Coating
Cabinet Colour: Black
Grille: Iron mesh
Handles: 4 side
Pole Mount: M20 base 35mm
Speaker Dimension (W×H×D): 1252x556x749mm
Carton Dimension (W×H×D): 1348x655x845mm
Net Weight: 99.0kg
Shipping Weight: 107.0kg
