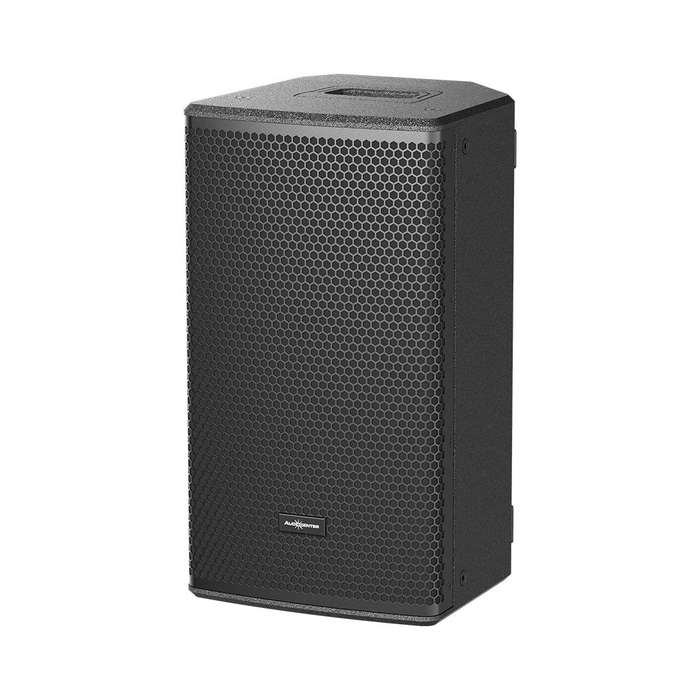

The SA310+ speaker is a versatile all-in-one solution, supporting both XLR and 6.35mm jack inputs for microphone and line-level balanced signals, as well as featuring an AUX input and wireless Bluetooth connectivity for easy hookup with various portable audio sources. Independent gain control and master volume adjustment allow users to tweak the sound quality with ease. The internal mixing and balanced output design are perfect for setting up multi-speaker systems.
SA310+ offers flexible installation options, with both ceiling suspension and pole mount, adapting to various environments. With its exceptional sound quality and user-friendly operations, the SA310+ meets the demands of both professional and home users for a high-quality audio experience.
Type: Active DSP-controlled full range loudspeaker
Frequency Response(-10dB): 52Hz-20kHz
Horizontal Coverage: 80°
Vertical Coverage: 50°
Maximum Calculated SPL/1M (Continuous/Peak): 124dB/130dB
HF Driver: Customized driver, 1.75" voice coil and 1.0" exit
LF Driver: Customized 10" driver, 2.0" voice coil
DSP
Processor: 48kHz signal sampling frequency
Presets: MUSICFLATSPEECHW/SUB
AMPLIFIER
Amplifier Circuitry: Class D
Power (RMS standards): 1000W
Peak Power: 2000W
Frequency Response (1W 8 2ch): 20Hz-20kHz(±0.5dB)
Intermodulation Distortion: 0.05%
Total Harmonic Distortion: 0.05%
Cooling System: Air convection
Protection: DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection
Signal Input: Female XLR (Mono jack 6.35), 3.5mm Jack Input, Wireless Bluetooth
Signal Output: Male XLR Balanced Output
Power Input: IEC power connector
Working Voltage: 100-240V~ (±10%,50/60Hz
Power consumption (1/8 output power): 49W
CABINET
Cabinet Material: CNC machined plywood
Coating: Durable Polyurea Coating
Cabinet Colour: Black is the default colour. Contact Audiocenter for customization
Grille: Iron mesh
Handles: 1 top
Monitor Angle : 45° monitoring Angle
Hanging Hardware: M8 screw
Pole Mount: Base hole 35 mm
Speaker Dimension (W×H×D): 302x548x325 mm
Carton Dimension (W×H×D): 365×605×389 mm
Net Weight: 14.0 kg
Shipping Weight: 16.0 kg
