Description

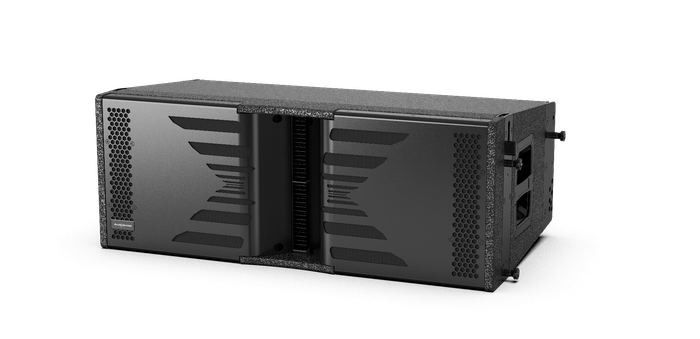

The XLA102-DSP is an active line array system. A newly designed horn and acoustic load provide high efficiency in the mid-frequency range and 90 degrees uniform horizontal coverage. Its excellent sound performance, compact size and light weight make it ideal for demanding touring events and fixed installations.

The XLA102-DSP features two customised 1.75" HF drivers with composite diaphragms and two customised 10" LF drivers (with 2.5" voice coils).

XLA102-DSP system can be used as a main PA system with a maximum of 16 cabinets per array.

User selectable three presets (Linear, HFX, W/SUB) in XLA102-DSP are available for users to choose according to their needs.

The XLA102-DSP can be suspended vertically. Built-in hardware with innovative quick-release mechanism with high-strength 10mm pins makes installation easy, safe and quick. The system can be sized according to the required vertical coverage angle to meet the different requirements of different applications. For venues where the system cannot be flown, customised frames are available for ground stacking (maximum of 4 cabinets).
