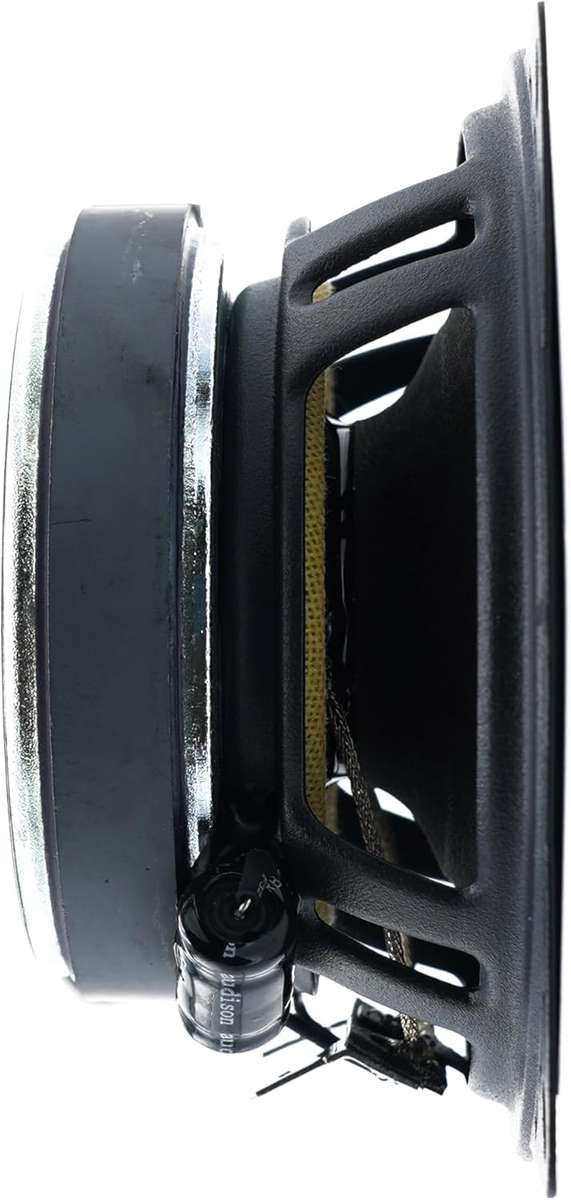

Name: Audison APX 4 Prima Series 120 Watts 4 inch 2-Way Coaxial Speakers
SKU: audapx4
Price: 2065.00 ZAR
Availability: InStock

Audison APX 4 Prima Series 120 Watts 4 inch 2-Way Coaxial Speakers

New

1 available

Only 1 left – grab it before it’s gone!

R2,065.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Allis Auto Sound18

100.00 % Positive ratings

Get it now, pay later

Condition

New

Location

South Africa

Product code

audapx4

Bob Shop ID

667227649

APX 4 features a concentric coaxial tweeter: with one single point of sound emission it is possible to obtain a consistent in-phase response, with consequent reconstruction of the acoustic scene comparable to a system of separate woofer + tweeter.The 4Â³ cones surround features the exclusive shallow Triple Wave profile, for maximum excursion linearity.

Technical Specs LF

Woofer Size	100 mm
Impedance	4 Ohm
Power Handling - Peak	120 W
Power Handling - Continuous	40 W
Sensitivity	91 dB
Frequency Response	80 ÷ 23k
Voice Coil Diameter	32 mm (0.59 in)
Magnet Size	75 x 40 x 10
Xmax	1.3 mm (1.26 in)

Technical Specs HF

Tweeter Size	24 mm (0.94 in)
Voice Coil Diameter	15 mm (0.59 in)

Electric-acoustic Specs

Re	3.1 Ohm
Fs	125 Hz
Mms	5.3 g (0.19 oz)
Cms	0.3
Bl	3.2
Qms	8
Qes	1,2
Qts	1
Vas	1.5 l (0.05 ft)
LE	0.04 mH

General

Weight

0.49 kg

Features

Concentric Coaxial Tweeter: tweeter is mounted within the
woofer with one single point of emission providing consistent
phase response, with an accurate recreation of the sound stage
comparable to that of a component system.
Tweeter features an acoustic lens specifically designed to
ensure an extremely linear frequency response, even in off-axis
placement, typical of in-door installations.
32 mm pure copper voice coil, for high power handling and
outstanding low frequency control.
Overall mounting depth optimized for OEM Integration thanks
to the concentric tweeter and the low profile basket.
Water-repellent treated paper cone, featuring a profile developed
with FEM (Finite Element Method) simulation technology and
optimized with the Klippel Scan Vibrometer.
TPU (thermoplastic polyurethane) suspension with unique "triple wave" profile for maximum linearity of excursion.
Compact basket, protected by abrasion-resistant and scratchproof coating, the motor affixed with damping epoxy adhesive.
High current fast-on terminal with double contact on positive
and negative poles for high flexibility and quick connection. The
terminal features a temperature resistant plastic cover,
protecting it against accidental short circuits.
Developed with the KLIPPEL suite.
