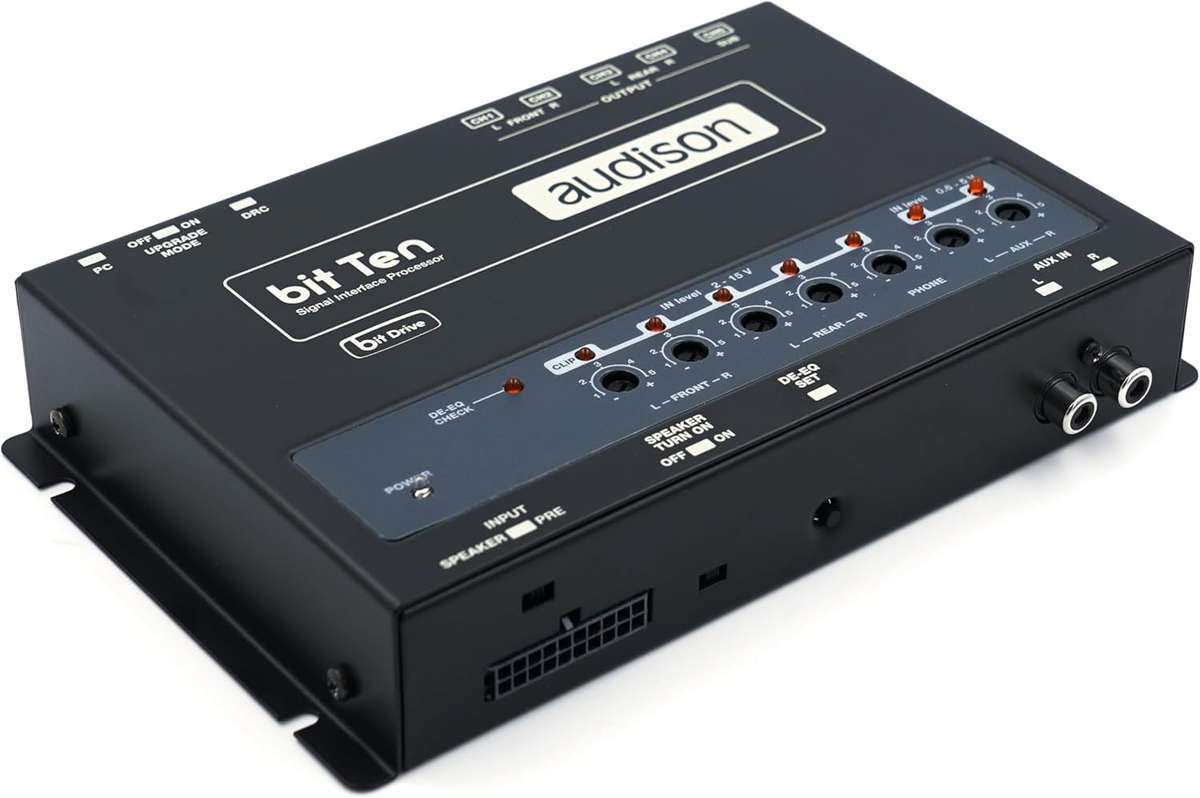

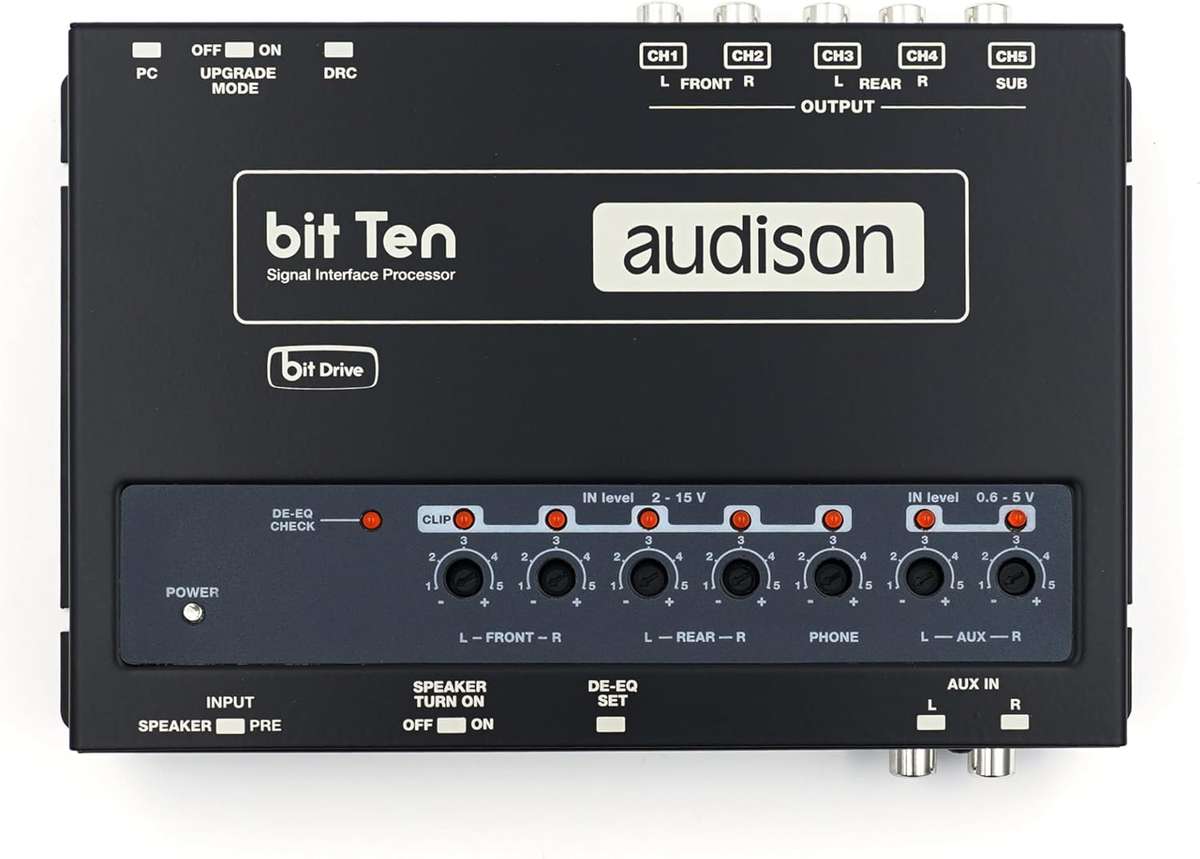

This device allows you to connect original or aftermarket audio sources, providing complete control over every aspect of the sound through an intuitive and advanced user interface. The Bit Ten offers the ability to adjust equalization parameters, crossover filters, and time delay management, allowing for sound optimization according to the specific needs of the user and the vehicle.
Installing the Bit Ten is simple and flexible, designed to easily integrate with a wide range of car audio systems, whether existing or new. Thanks to its compact size and versatility, the Bit Ten can be installed in various locations within the cabin without taking up excessive space.
The Bit Ten stands out for its ability to significantly improve the audio quality of the vehicle's system, turning every trip into a superior listening experience. This digital processor is the ideal choice for those who want to customize and perfect their audio system, ensuring clear, powerful, and high-fidelity sound in any situation.
| Nominal power supply voltage / Fuse | 11 ÷ 15 VDC |
| Channels | 5 |
| Sample Rate | 24 bit / 48 kHz |
| Hi Level Inputs | 4 |
| Low Level Inputs | 4 |
| Digital Inputs | 0 |
| Processing Method | Fixed point |
| Idling current | 0.4 A |
| Switched off without DRC MP | 2.5 mA |
| Switched off with DRC MP | 4 mA |
| Remote IN | 7 ÷ 15 VDC (1.3 mA) |
| Remote OUT | 12 VDC (130 mA) |
| Distortion - THD @ 1 kHz, 1 VRMS Output | 0.005 % |
| Bandwidth @ -3 dB | 10 ÷ 22k Hz |
| S/N ratio @ A weighted, 4 V Output, 2 V MASTER input | 96 dBA |
| S/N ratio @ A weighted, 4 V Output, OPTICAL IN1/IN2 input | 95 dBA |
| Channel Separation @ 1 kHz | 85 dB |
| Input sensitivity AUX | 0.6 ÷ 5 V RMS |
| Input impedance Pre In | 15 k |
| Input impedance Speaker In / AUX | 2,2 k |
| Max Output Level 0.1% THD | 4 V RMS |
| Low level (Pre) | AUX IN |
| High Level (Speaker In) | FL - FR - RL - RR - PHONE IN |
| Low level (Pre) | FRONT L/R, REAR L/R, SUB |
| From / To Personal Computer | 1 x USB / B (1.1/2.0) |
| Filter type | Full / High Pass/ Low Pass/ Band Pass |
| Filter mode and slope | Linkwitz @ 12/24 dB Butterworth @ 6/12/18/24 dB |
| Crossover Frequency | 68 steps @ 20 ÷20k Hz |
| Phase control | 0° ÷ 180° |
| Distance | 0 ÷ 510 cm / 0 ÷ 200.8 in. |
| Delay | 0 ÷ 15 ms |
| Step | 0,08 ms; 2,8 cm / 1.1 in. |
