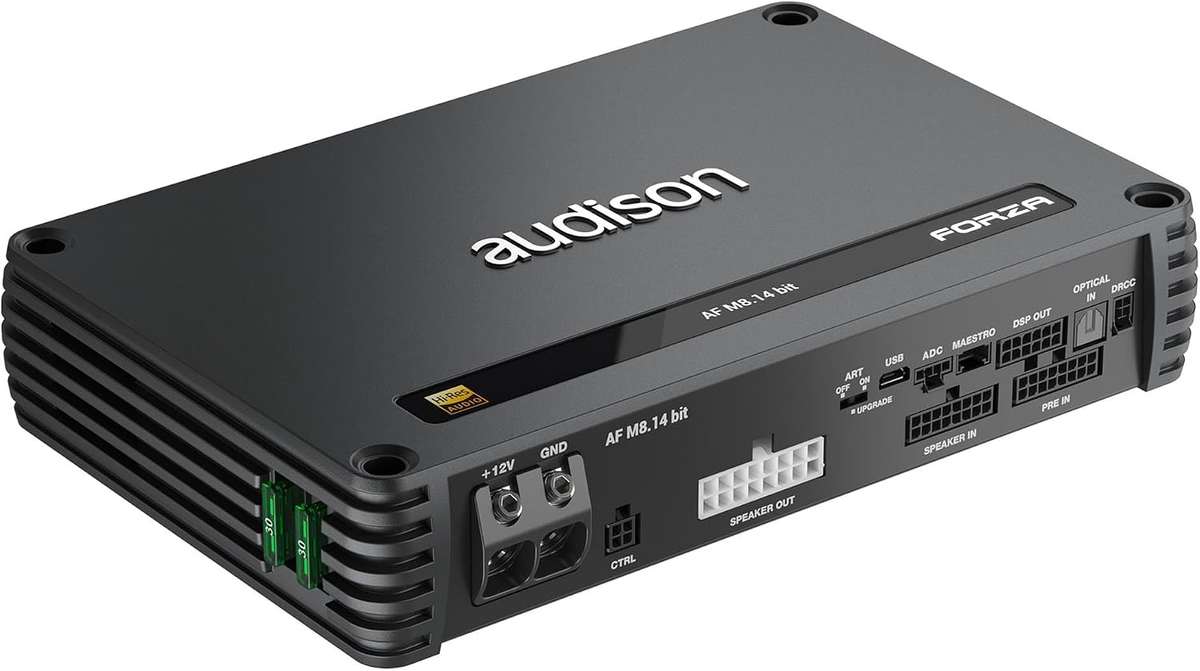

AF M8.14 bit boasts eight high-fidelity amplified channels 90W x 8 @4, 140W x 8 @2* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D in an amazingly compact package! This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification. Bridging channel pairs results in 280W x 4 @4*, guaranteeing flexible and powerful performance. Support for the Audison B-CON's Absolute Volume function guarantees maximum bit depth, even with wireless connections!*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.
NEXT-GENERATION TUNING CAPABILITIES FOR MAXIMUM CONTROL
Audison's completely-new bit Drive PC software can analyze, route, and correct the signal in completely new ways now you can measure, mix, and finally tune the sound with one powerful tool! The new Graphical User Interface simplifies every control and function, integrating acoustic measurement, and ensuring efficient tuning and great sound! The Acoustic RTA is integrated into the equalizer graph, and is compatible with your USB microphone or sound card. The Final EQ function allows final equalization without damaging the delicate left/right frequency relationships. The six processed preamp outputs are in addition to the eight amplified channels, allowing Forza's DSP section to manage a larger system easily.
AMPLIFIER TECH DATA
- Channels 8
- Class D-Class
- Power supply voltage / fuse 11 ÷ 15 VDC / 2 x 30A
- Operating power supply voltage 6.5 ÷ 17.5 VDC
- Idling current 1.5 A
- Standby Current Draw 1.7 mA
- Consumption @ 14.4 VDC, 2, Max Musical Power 55 A
- Remote IN 4 ÷15 VDC (1 mA)
- Remote OUT 6.5 ÷15 VDC (150 mA)
- ART Automatic Remote Turn on/ off from OUTPUT BTL speakers 1.5 VDC
- Efficiency Rated Power 82%
AMPLIFIER STAGE
- Distortion THD @ 1 kHz, 4, 70% Rated Power 0.05%
- Bandwidth @ -1.5 dB 10 Hz ÷ 42 kHz
- Damping factor @ 1 kHz, 4, 2 VRMS 100
- S/N ratio (A weighted @ 1 V Input) Master Input 98.5 dBA
- S/N ratio (A weighted @ 1 V Input) Optical Input 105
- Total Power RMS 1120 W
- Minimum load impedance 8Ch: 2 | 4Ch (Bridge 1/2; 3/4; 5/6; 7/8): 4
- Output Continuous Power (RMS) @14.4 VDC, 1% THD 8 Ch @ 4: 90 W x 8, 8 Ch @ 2: 140 W x 8, 4Ch (Bridge 1/2; 3/4; 5/6; 7/8) @ 4: 280 W x 4
- Adjustable Crossover Yes
CEA SPECIFICATIONS
- Output power @ 4, 1% THD+N, 14.4 V 90 W x 8
- SN ratio (ref. 1 W output) 80 dB

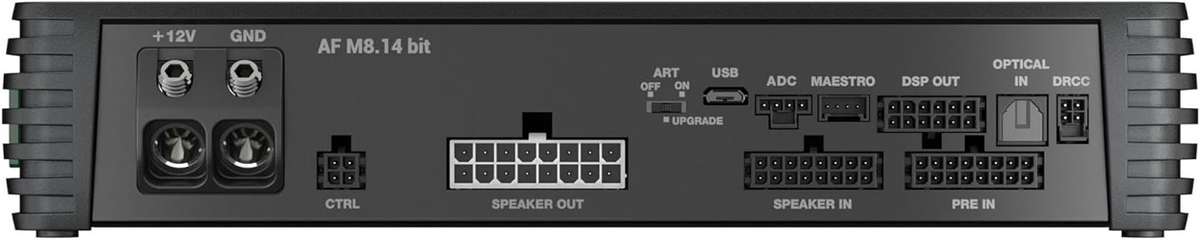

INPUTS / OUTPUTS
- Pre-In Inputs 0.6 ÷ 6 VRMS (15 k Imp.)
- Digital Input Yes
- Pre Outputs 6
- Hi Level Inputs 8
- Low Level Inputs 8
- Speaker-In Inputs 2.2 ÷ 22 VRMS (5 Imp.)
- Digital IN 1 x Optical S/PDIF; Max 192kHz/24bit + 1 x Optical/Coaxial S/PDIF; Max 96kHz/24 bit with optional F2O card
- Sub Out (RCA Pre Out) 5V RMS
DIGITAL SIGNAL PROCESSOR
- Audio DSP Converter Analog Devices ADAU1467 automotive qualified audio processor. Processing @ 96 kHz.Analog Devices 3 x ADAU1978 (4ch) and ADAU1966A (16ch) A/D and D/A converters (24 bit/192 kHz) providing very high level performance
- Filter type Full / High-Pass / Low-Pass / Band-Pass
- Filter mode and slope Linkwitz-Riley @ 12/24/36/48 dB/Oct. Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct. Bessel @ 6/12/18/24/30/36/42/48 dB/Oct. Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct. QLP @ 6 dB/Oct.
- Crossover frequency 20 Hz ÷ 20 kHz
- Phase control 0° / 180°, All-Pass filters
- Analog Input Equalizer (20 ÷ 20k Hz) 12 Biquad + Delay
- Output Equalizer Parametric/Graphic Biquad: 15 poles, 20 Hz ÷ 20 kHz
- Time Alignment Distance 0 ÷ 510 cm / 0 ÷ 200.8 inches
- Time Alignment Delay 0 ÷ 15 ms
- Input Output Real Time Audio Monitor RTA
CONTROL CONNECTIONS
- DRC Port Input for DRCC remote control (Optional)
- ADC Port Manage other Audison devices that support this standard
- 1 Wire Customizable functions (+ 12 V activated)
- 2 Wire Customizable functions (+ 12 V activated)
GENERAL REQUIREMENTS
- PC connections Micro USB 1.1 / 2.0 / 3.0 Compatible
- Software/PC requirements Windows 10, Windows 11 (min. res. 1024 x 768)
- Ambient operating temperature range 0 °C to 55 °C (32 °F to 131 °F)
- Size 240 x 47 x 156 / 9.44 x 1.85 x 6.14
- Weight 2.04 kg
