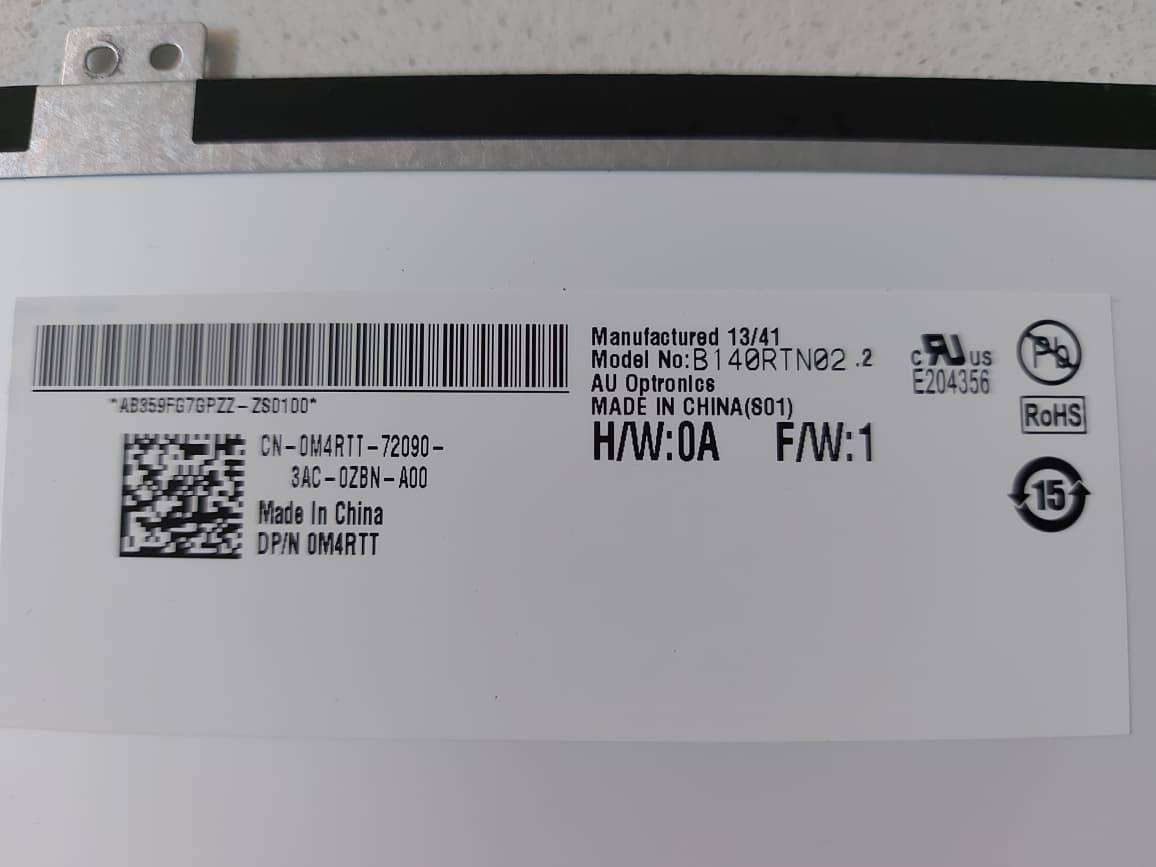

AUO B140RTN02.2:
Brand: AUO
Model P/N: B140RTN02.2
Diagonal Size: 14.0"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 1600 × 900 (HD+)
Pixel Density: 131 PPI
Pixel Format: RGB Vertical Stripe
Active Area: 309.6 (W) × 174.15 (H) mm
Bezel Opening:
Outline Dimensions: 320.4 × 205.1 × 3.6 mm (H × V × D)
Surface Treatment: Antiglare, Hard coating (3H)
Luminance: 300 cd/m² (typ.)
Contrast Ratio: 400:1 (typ.)
Viewing Angle:
Left / Right: 45° / 45°
Up / Down: 15° / 35° (CR 10)
Response Time: 8 ms (typ., Tr+Td)
Best View Direction: 6 oclock
Operating Mode: TN, Normally White, Transmissive
Color Depth: 262K (45% NTSC)
Backlight: WLED, 15K hours, with LED driver
Form Factor: Flat (PCBA Flat, T 3.44.0 mm)
Designed For: Laptop
Refresh Rate: 60 Hz
Touchscreen: Without
Signal Interface: LVDS (2 ch, 6-bit), 40-pin connector
Power Supply: 3.3V (typ.)
Operating Temperature: 0 ~ 50 °C
Storage Temperature: 20 ~ 60 °C
