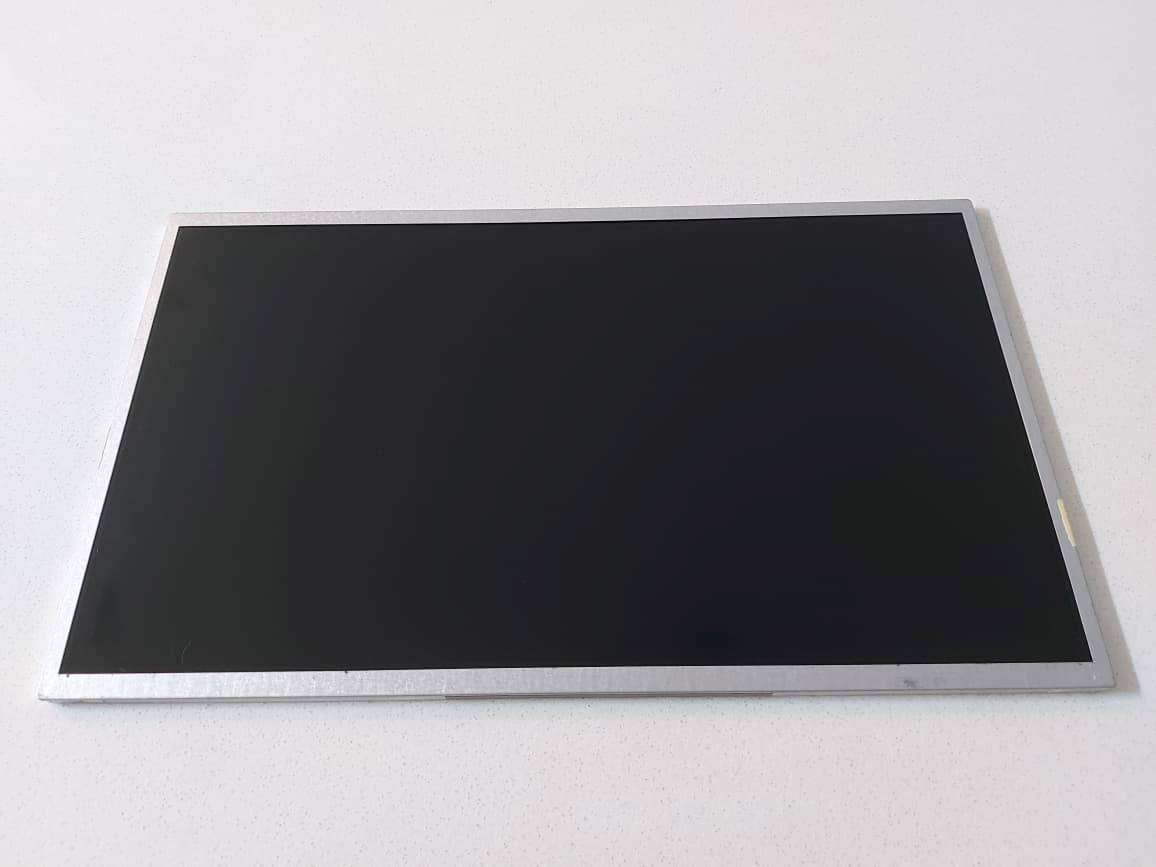

AUO B140RW03 V1 panel:
Brand: AUO
Model P/N: B140RW03 V1
Diagonal Size: 14.0"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 1600×900 (HD+), 131 PPI
Pixel Format: RGB Vertical Stripe
Active Area: 309.6 × 174.15 mm
Bezel Opening: 313.0 × 177.5 mm
Outline Dimensions: 323.5 × 192.5 × 5.2 mm (W×H×D)
Brightness: 300 cd/m² (Typ.)
Contrast Ratio: 400:1 (Typ.)
Viewing Angle: 45/45/15/35° (Left/Right/Up/Down, CR10)
Best View at: 6 oclock
Color Depth: 262K (45% NTSC)
Surface Treatment: Antiglare, Hard coating (3H)
Display Mode: TN, Normally White, Transmissive
Response Time: 8 ms (Typ.) (Tr+Td)
Backlight: WLED, 10K hours, with LED Driver
Outline Shape: Wedge (PCBA Bent, T5.2mm)
Application: Laptop
Touchscreen: Without
Refresh Rate: 60Hz
Supported Families:
IPS Family: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich
VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
Signal Interface: LVDS (2 ch, 6-bit), 40-pin connector
Voltage Supply: 3.3V (Typ.)
Operating Temperature: 0 ~ 50 °C
Storage Temperature: -20 ~ 60 °C
AUO B140RW03 V1 compatible models:
B140RW03 V0
B140RW03 V1
LP140WD1-TLM1
N140O6-L01
