Original Autel MaxiIM IM508 Advanced Immo & Key Programming Diagnostic Tool With XP200

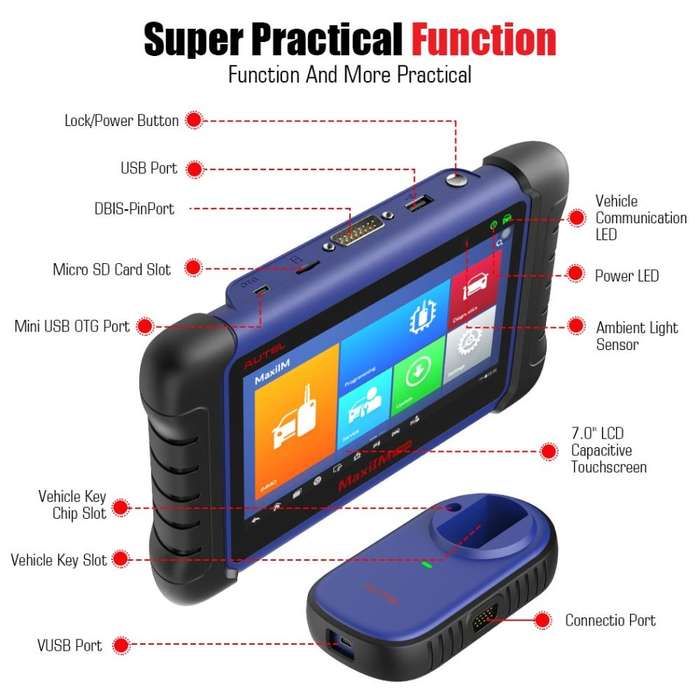

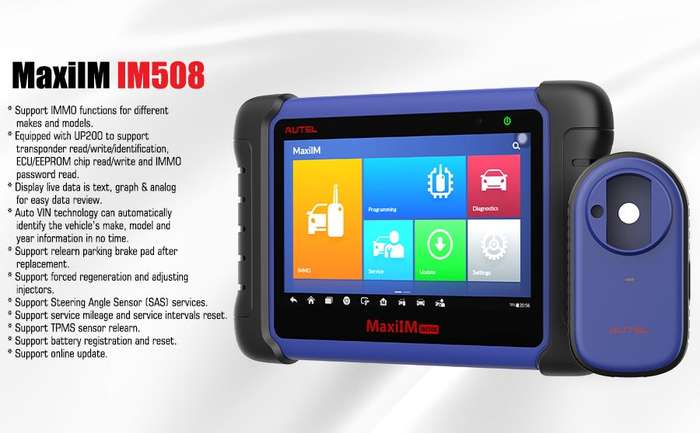

MaxiIM IM508 is a fast, easy-to-use, and ultraportable immobilizer and key programming device. The Android-based touchscreen tablet features powerful quad-core processor, intuitive design and straight-forward interface. Equipped with the XP200 key programmer, IM508 is capable of providing extraordinary service functions for the immobilizer system. Together with the ability to quickly diagnose all modules of the majority of makes and models on the market, IM508 provides you with superior special functions. IM508 is the perfect solution for shops and technicians who demand affordable and powerful IMMO and diagnostic services.

Highlights:

1. Powerful Cortex-A9 processor
2. 71024x600 LCD capacitive touchscreen
3. Internal reliable 32GB Memory
4. Android Operating System for fast boot-up and multitasking
5. Powerful combination of key programming/all system diagnostics/advanced maintenance services
6. Smart Mode for guided and automated key learning
7. Expert Mode for advanced key learning
8. Read PIN/CS (all key lost) key generation, key learning, remote learning
9. IMMO ECU reset/adaptation, refresh/coding
10. Transponder read/write, EEPROM/MCU read/write
11. Powerful OE level diagnostics for more than 80 US, Asian and European makes and models

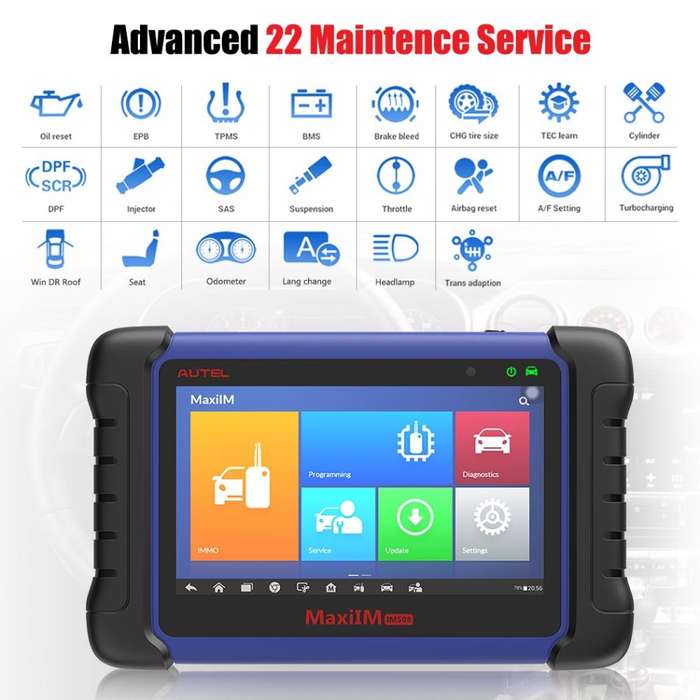

12. Advanced maintenance services including EPB, DPF, SAS, Oil reset, BMS and TPMS sensor ID relearn

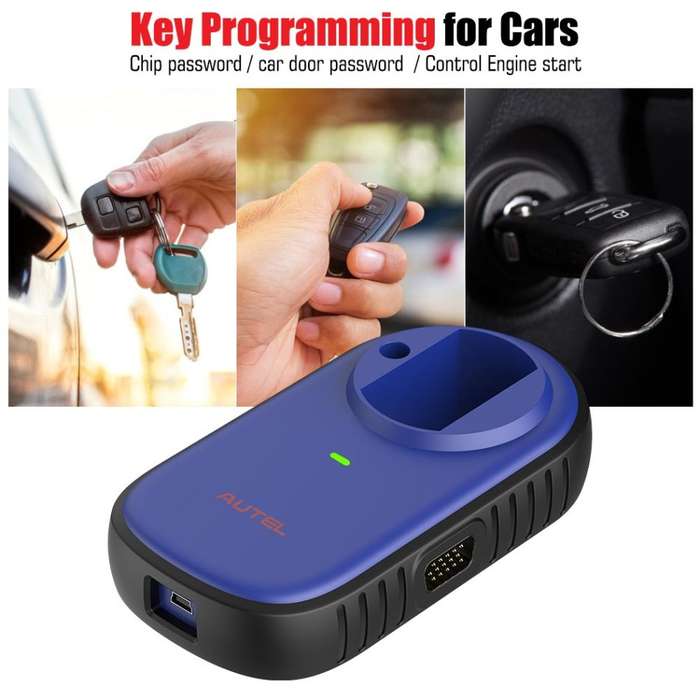

IMMO & Key Programming :

1. Read PIN/CS (AII key Lost)
2. Key Generation
3. Key Learning/Remote Learning
4. Backup/Restore IMMO Data
5. IMMO ECU Reset / Adaptation, Refresh / Coding.

Supported Automotive Protocols:

ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW,SAE-J1850 PWM, ISO11898 (Highspeed, Middle speed, Low speed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

Specifications:

• Operating System: Android 4.4.4, KitKat
• Processor : Cortex-A9 processor(1.6 GHz)
• Memory: 32GB
• Display: 7-inch LCD capacitive touchscreen with 1024x600 resolution
• Connectivity: Mini USB 2.0; USB2.0 Wi-Fi; Micro SD card slot(supports up to 32GB)
• Sensors: Ambient light sensor for brightness auto changing
• Power and Battery: 3.7 V/5000 mAh lithium-polymer battery; Charges via 5 VDC power supply
• Tested Battery Life: Around 4.5 hours of continuous use
• Battery Charging Input: 5V/1.5A
• Power Consumption: 500 mA (LCD on with default brightness, Wi-Fi on)@3.7 V
• Operating Temp: 0 to 50°C (32 to 122°F)
• Storage Temp: -20 to 60°C (-4 to 140°F)
• Operating Humidity: 5%-95% non-condensing
• Net Weight: 885g(2.31|b.)

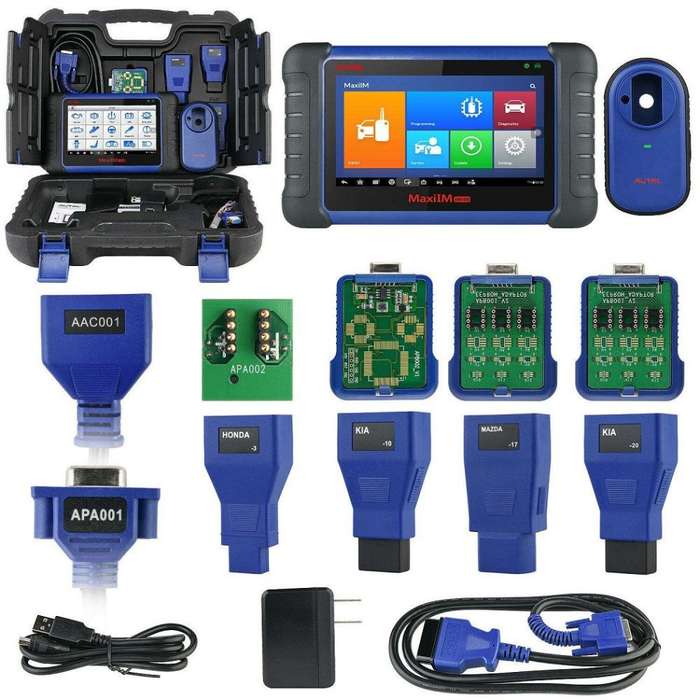

Package includes:

• 1PC x MaxiIM IM508 Tablet
• 1PC x XP200 Key Programmer
• 1PC x Main Cable
• 1PC x AAC001 MED17 Cable
• 1PC x KIA-20 Adaptor
• 1PC x Mazda-17 Adaptor
• 1PC x Honda-3 Adaptor
• 1PC x KIA-10 Adaptor
• 1PC x USB External Power Adapter
• 1PC x Mini USB Cable
• 1PC x Carrying Case
• 1PC x Quick guide.
