Autel MaxiScan MS509 Diagnostic Scanner

***Demo Unit***

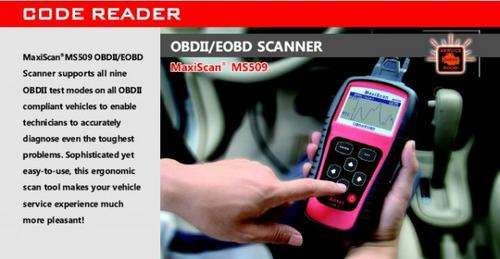

Autel MaxiScan MS509 Diagnostic Scanner

The MaxiScan MS509 OBDII/EOBD Scanner supports all nine OBDII test modes on most OBDII compliant vehicles to enable technicians to accurately diagnose even the toughest problems. Sophisticated yet easy-to-use, this ergonomic scan tool makes your vehicle service experience much more pleasant!

Product Features & Functions:
Works on most 1996 and later OBDII compliant US, European and Asian vehicles
Easily determines the cause of the "Check Engine Light ( MIL)"
Retrieves generic (P0, P2, P3, and U0) and manufacturer specific (P1, P3, and U1) codes
Turns off Check Engine Light (MIL), clears codes and resets monitors
Displays DTC definitions on unit screen
Views freeze frame data
Displays monitor and I/M readiness status (emissions)
Identifies pending codes
Reads live PCM datastream
Displays live O2 sensor test data
Graphs data (1996 and newer)
Reads, stores & playbacks live sensor data
Memory/battery backup for off-vehicle data review and analysis
Multilingual menu and DTC definitions --- English, Spanish, French,
German and etc
Performs modules present test
Retrieves vehicle information (VIN, CIN and CVN)
Supports CAN (Controller Area Network) and most other current
OBD-II protocols
Built-in OBD-II DTC lookup library
Large easy-to-read backlit LCD screen
Software upgradeable via internet

Specifications:
Display: Backlit, 128x64 pixel display with contrast adjustment
Operating Temperature: 0 C to 50°C
Storage Temperature: -20°C to 70°C
External Power: 8.0 to 15.0V power provided via vehicle battery
Internal Power: 9V cell battery
Dimensions: Length 178mm
Width 95mm
Height 35mm
NW: 0.70kg
GW: 1.0kg

***Demo Unit***
