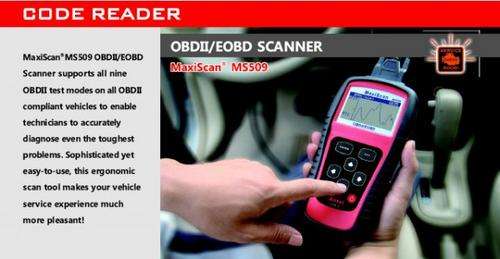

Autel MaxiScan® MS509 Diagnostic Scanner

Autel MaxiScan® MS509 Diagnostic Scanner

Autel MaxiScan® MS509 Diagnostic Scanner

The MaxiScan® MS509 OBDII/EOBD Scanner supports all nine OBDII test modes on most OBDII compliant vehicles to enable technicians to accurately diagnose even the toughest problems. Sophisticated yet easy-to-use, this ergonomic scan tool makes your vehicle service experience much more pleasant!

Product Features & Functions:
●　Works on most 1996 and later OBDII compliant US, European and Asian vehicles
●　Easily determines the cause of the “Check Engine Light ( MIL)”
●　Retrieves generic (P0, P2, P3, and U0) and manufacturer specific (P1, P3, and U1) codes
●　Turns off Check Engine Light (MIL), clears codes and resets monitors
●　Displays DTC definitions on unit screen
●　Views freeze frame data
●　Displays monitor and I/M readiness status (emissions)
●　Identifies pending codes
●　Reads live PCM datastream
●　Displays live O2 sensor test data
●　Graphs data – (1996 and newer)
●　Reads, stores & playbacks live sensor data
●　Memory/battery backup for off-vehicle data review and analysis
●　Multilingual menu and DTC definitions --- English, Spanish, French,
　　German and etc
●　Performs modules present test
●　Retrieves vehicle information (VIN, CIN and CVN)
●　Supports CAN (Controller Area Network) and most other current
　　OBD-II protocols
●　Built-in OBD-II DTC lookup library
●　Large easy-to-read backlit LCD screen
●　Software upgradeable via internet

Specifications:
Display: Backlit, 128x64 pixel display with contrast adjustment
Operating Temperature: 0 C to 50°C
Storage Temperature: -20°C to 70°C
External Power: 8.0 to 15.0V power provided via vehicle battery
Internal Power: 9V cell battery
Dimensions: Length 178mm
Width 95mm
Height 35mm
NW: 0.70kg
GW: 1.0kg
