Overview

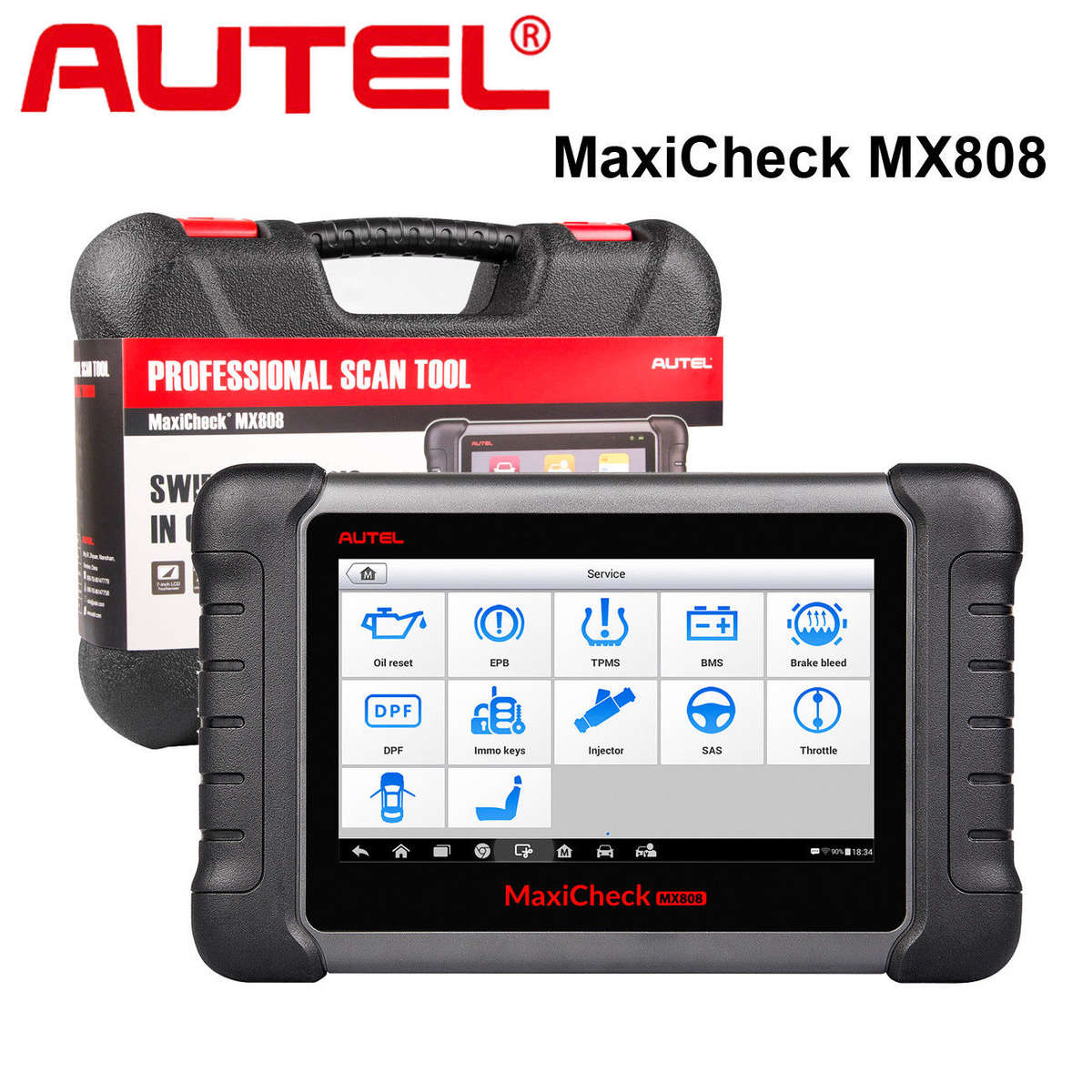

The Autel MaxiCheck MX808S (2025 Edition) is a full-system diagnostic tablet designed for workshops, mobile mechanics, and auto technicians needing reliable performance, deep functionality, and wide vehicle coverage all backed by modern hardware.
It runs on Android11 with 4GB RAM and 64GB storage, delivering fast diagnostics, Auto VIN, bi-directional control, and 36+ advanced service functions. It supports over 80 global makes, including the most common petrol and diesel models in South Africa like Toyota, VW, BMW, Isuzu, Hyundai, Ford, and Nissan.
Includes 2 years of free software updates from activation. Updates remain optional thereafter.
Key Features
Full-System Diagnostics
- Complete access to Engine, Transmission, ABS, Airbag, TPMS, Body, Chassis & more
- Read & clear DTCs, view live data, freeze frames, and ECU info
- Health scan across all available control modules
AutoScan & Reporting
- One-touch Auto VIN & AutoScan
- Generates full health reports with fault definitions
- Reports can be saved, printed, or shared digitally
Bi-Directional Control (Active Tests)
- Test components like fuel pumps, fans, door locks, windows, EGR, A/C clutches
- Validate part performance directly from the scanner no guesswork
- Speeds up accurate fault isolation and verification
36+ Advanced Service Functions
- Routine maintenance: Oil Reset, EPB, TPMS, SAS Calibration, Battery Reset
- Advanced: DPF Regen, ABS Bleeding, Throttle Adaptation, Injector Coding
- Additional support for:
- Gear Learning, Crankshaft Relearn
- Headlamp & Suspension Adaptation
- Seat & Mirror Initialization, Airbag Resets
- Window & Door System Calibrations
Extensive South African Vehicle Coverage (99%)
- Supports 80+ global brands and 10,000+ models
- Compatible with all OBD2-compliant petrol and diesel vehicles from 1996 onwards
- Optimized for South African market Toyota, VW, Isuzu, Hyundai, Kia, Ford, Nissan, BMW, etc.
OEM Gateway Access
- Some newer models (2020+) from brands like VW, Renault, and FCA Group include security gateways that block access to functions such as EPB reset or injector coding.
- The MX808S gives you the option to unlock these functions per brand, directly through the tablet, with an activation fee based on either a per-use token or an annual license, depending on the OEM
- Many scanners don't offer this capability at all leaving you locked out of key functions.
- Importantly, most service functions and vehicles still work without any activation, especially on models before 2020 or where gateway restrictions do not apply.

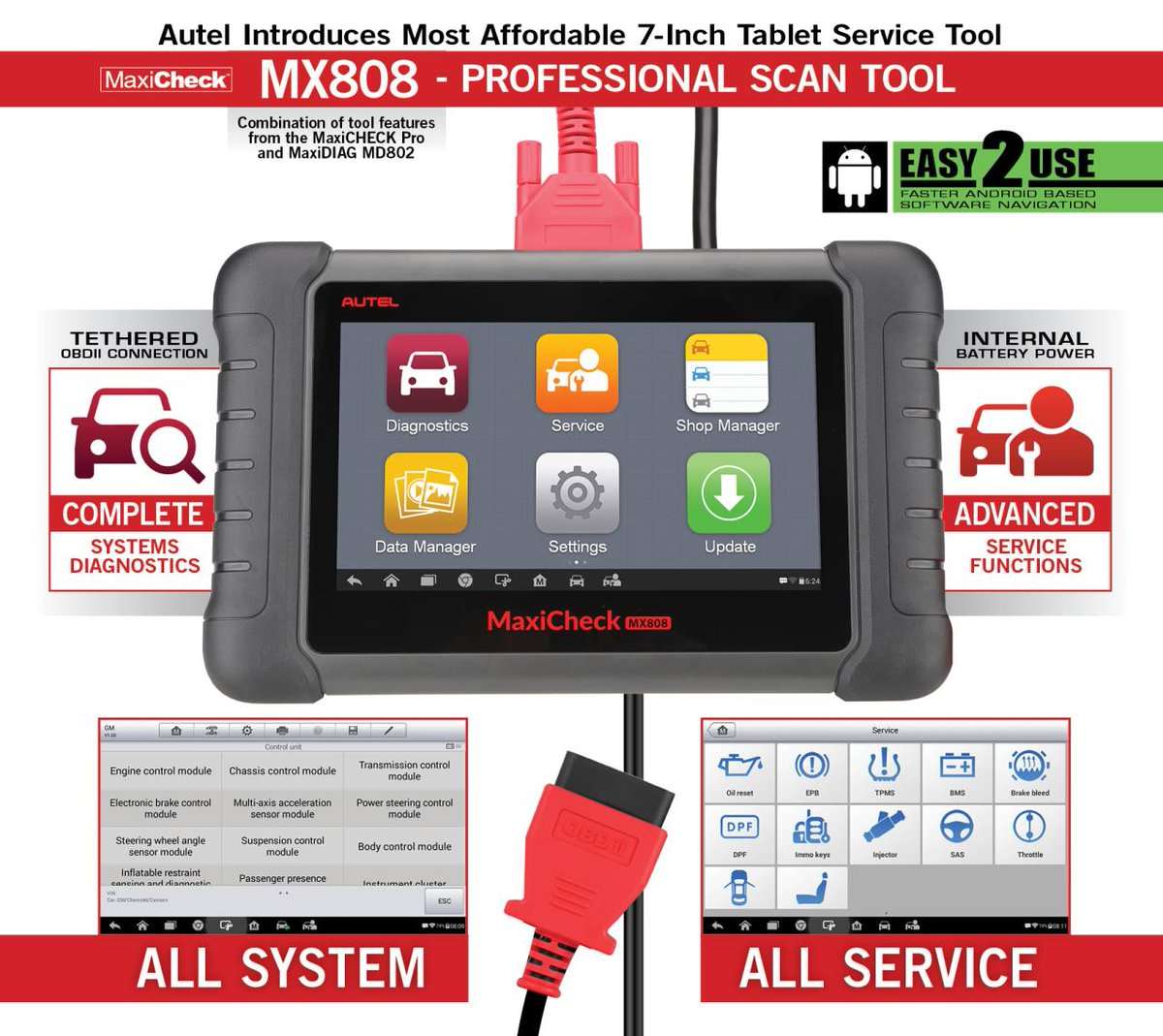

Easy-to-Use Android Tablet for Workshop Diagnostics
- Smooth 7 touchscreen with an intuitive Android 11 interface
- Built-in WiFi for quick updates and cloud-based features
- Compact, rugged design built for tough workshop conditions
- Wired OBD2 connection stable, no pairing or battery issues
Update Policy
Includes 2 years of free software updates from the date of activation.
- After this period, updates are optional and available via Autel's platform for approx. R2,500/year.
- The tool remains fully usable with the last installed data even if not renewed.
- Note: OEM gateway activations are separate and not part of this update package
Technical Specifications
- Display: 7 LCD touchscreen (1024×600 resolution)
- OS: Android11
- Processor: RK3566 Quad-core 1.8GHz
- Memory: 4GB RAM / 64GB Storage
- Battery: 5000mAh, up to 7 hours use
- Connectivity: WiFi (2.4GHz & 5GHz), USB 2.0, Mini USB
- Protocols: OBD2, EOBD, CAN, ISO9141, KWP2000, J1850
- Dimensions: 370mm × 120mm × 300mm
- Weight: ~2.5kg
What's in the Box
- 1 × Autel MX808S Diagnostic Tablet
- 1 × OBD2 Cable
- 1 × USB Cable
- 1 × Power Adapter
- 1 × Quick Guide / User Manual
- 1 × Carry Case
Why Choose Autel
- One of the most trusted global brands in automotive diagnostics
- Backed by 1,000+ engineers and deep vehicle system integration
- OEM partnerships ensure better coverage and accuracy
- Reliable, secure, and frequently updated software platform
Why Buy From Us
- Official Autel Partner avoid grey imports and locked software
- Local South African Support setup, training, and aftersales help
- 12-Month Full Replacement Warranty Local replacements and repairs with no delays
- Fast National Shipping Dispatched daily from our Johannesburg warehouse
- Trusted by Workshops Nationwide Used by 1000s of SA mechanics, resellers & fleets
