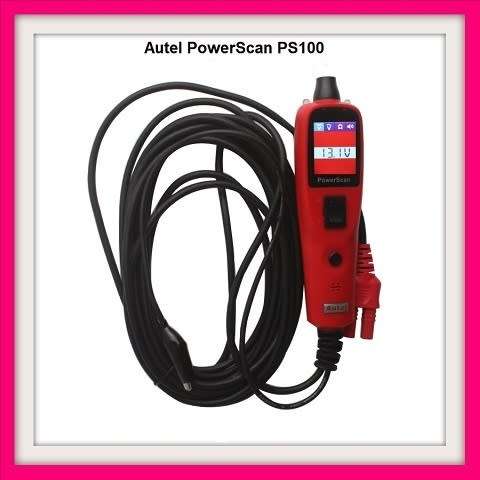

Autel PowerScan PS100 Electrical System Diagnostic Tool

 Autel PowerScan PS100 Handheld Electrical System Diagnostic Tool

SHIPPING 5 TO 10 WORKING DAYS

Autel PowerScan PS100 multi-functional circuit tester is the most revolutionary circuit tester to date, provide fast and accurate solution to electrical system diagnostics. PowerScan handheld Electrical Tester work stand-alone, is truly the ultimate in power and affordability, allowing users to check circuitry in one single step.

PowerScan PS100 Highlights:

1. Handheld tester, work alone, no PC and other items need, easy to use
2. Built-in Flashlight enables you to work in the dark
3. Easy to read AVO meter allows you to read voltage, current and resistance at the fingertip
4. 100% original Autel make with high quality
5. Autel PS100 Tester User Manual.

PowerScan PS100 Features:

Performs every type of service including power injection, measurement, ground testing, polarity checks, continuity testing and components activation
Easy to read AVOmeter allows you to read voltage, current and resistance at the fingertip
With a flip of the power switch, you have an instant hot/ground lead for powering up electrical components like cooling fans, relays, etc.
Simultaneously uses the hot lead and the ground lead to activate components right in your hand
Instantly identifies positive, negative and open circuits
Tests for bad ground contacts instantly, allowing you to follow and locate shorts fast without wasting fuses
Instantly checks continuity of switches, relays and diodes
Circuit breaker protected
Built-in Flashlight enables you to work in the dark
Audio tone indicator allows for no-look menu scrolling once users are familiar with menu tone assignment
20ft (extendable) cable provides excellent accessibility to test along the vehicle
Extremely easy to use and highly reliable.

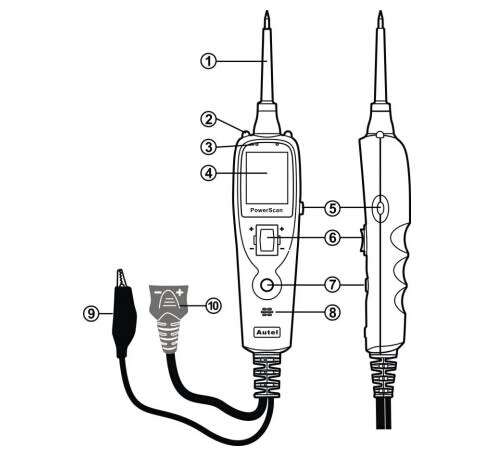

PowerScan PS100 Display:

1. Probe Tip – Contacts the circuit or component to be tested.
2. Head Lights – Illuminates dark work areas or work areas at night.
3. Red/Green Polarity Indicator – Identifies positive, negative or open circuits. The RED Indicator lights when the Probe Tip is 3 contacting a positive circuit. The GREEN Indicator lights when the Probe Tip is contacting a negative circuit.
4. LCD Display –Indicates test results.
5. Circuit Breaker Reset – Resets the tool when the Circuit Breaker is tripped
6. Power Switch – Allows you to conduct a positive or negative battery current to the tip for activating and testing the function of electrical components.
7. Mode Button – Selects the work mode: AC voltage, DC voltage, resistance, tone.
8. Speaker – When the audio tone is turned on, a beep will be heard.
9. Auxiliary Ground Lead – Assists test as a ground lead.
10. Adaptor – Connects to the battery.

Autel PowerScan PS100 Specifications:

Display: TFT color display (160 x 128 dpi)
Operating Temperature: 0 to 60°C (32 to 140°F)
External Power: 12.0 or 24.0 V power provided via vehicle battery

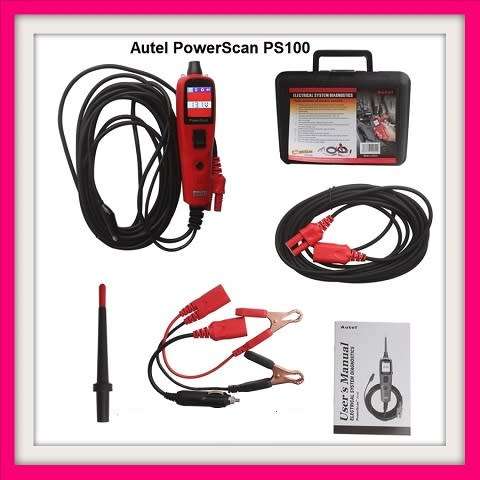

Autel PowerScan PS100 Package List:

PowerScan PS100

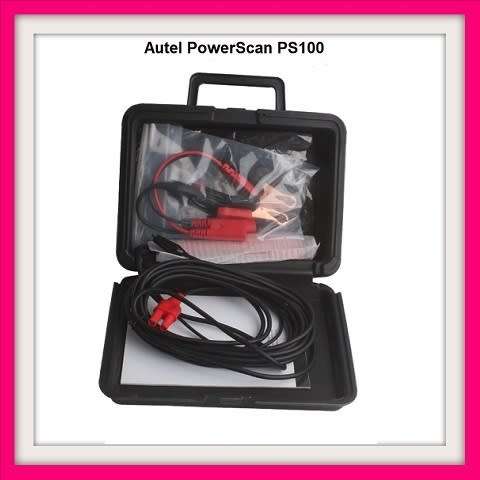

Rugged blow molded case

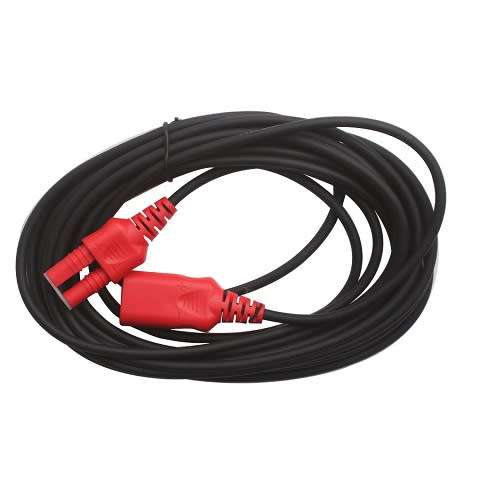

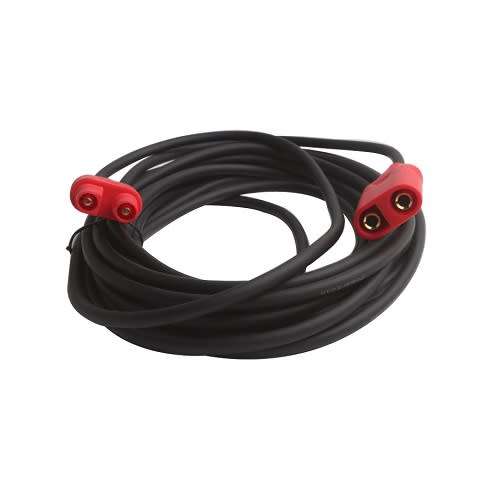

20ft. extension cable

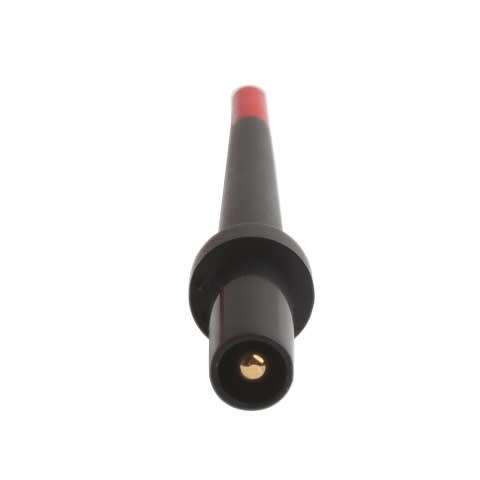

Probe tip

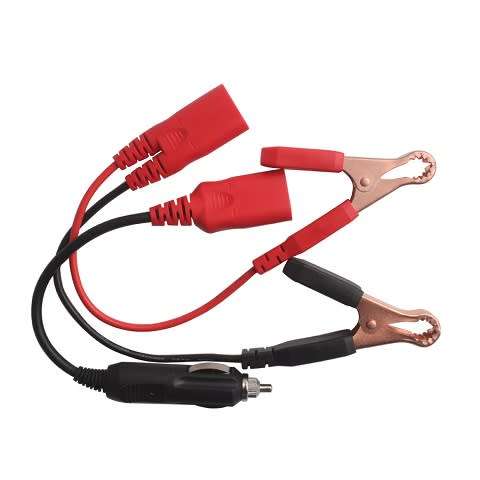

Battery hookup clips
Cigarette lighter adapter
User Manual
