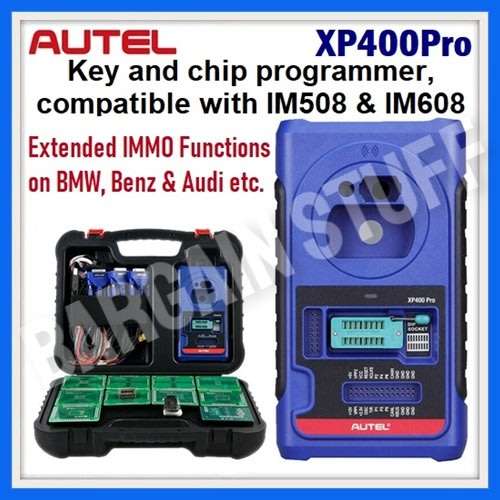

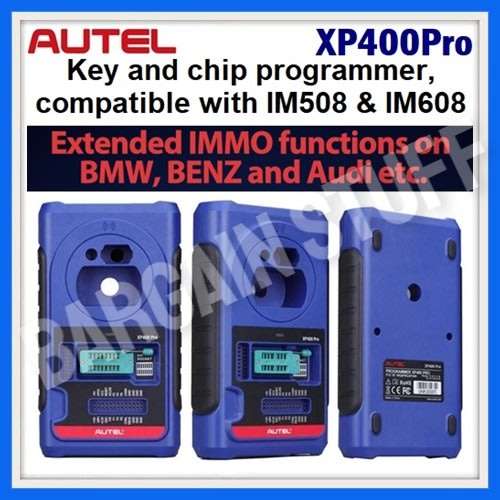

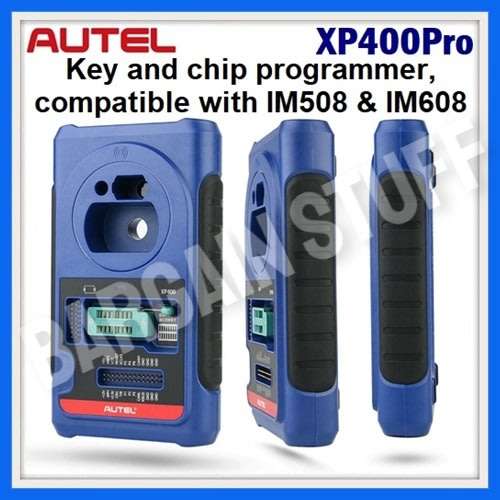

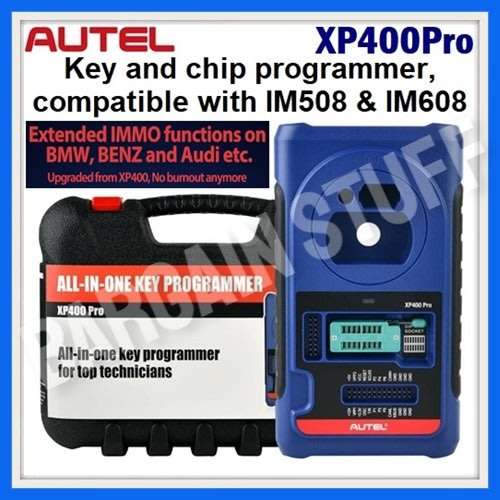

Autel XP400 Pro IMMO Key and Chip Programmer for Autel IM508 and Autel IM608

The XP400Pro key and chip programmer, compatible with the IM508 and IM608, reads/writes and learns keys to the vehicle. The XP400Pro enables programming of infrared keys for Mercedes vehicles and IC Chip keys on late model Hyundai KIA vehicles. The XP400 also performs EEPROM-data functions needed for European vehicles. The XP400Pro supports Data Read/Write of 3,000 Plus Chip Types.

The XP400 Pro is an upgraded version of XP400. It adds more functionality for BMW, Mercedes-Benz, as well as EEPROM reading. With the new protocols, the end-user will be able to read over 2000 (chips, components, devices) types including EEPROM and MCU Read, additional Odometer Read/Write and more. Also, added functions for EWS3, W209, NEC, and more.

Main Features:

• XP400PRO Advanced All-in-One Key Programmer.
• XP400Pro Key and Chip Programmer Reads/Writes and Learns Keys to the Vehicle.
• Performs EEPROM-data Functions Needed for European Vehicles.
• Enables Programming of Infrared Keys for Mercedes Vehicles and IC Chip Keys on Late Model Hyundai Kia Vehicles.
• Supports Data Read/Write of 3,000 Plus Chip Types (inc. EEPROM, engine *, MCU, IMMO *)
• Compatible with the IM508 and IM608.

NOTE: XP400 Pro has been updated, it's fixed XP400s problem that it can NOT be connected to the vehicle OBD connector for that may cause burnout to XP400 mainboard. Please always be noted that XP400 Pro can perform IMMO functions only when connected with scanner and adapters such as APA104, APA105 etc.

NOTE: The functions are not universal compatible, please send VIN to check before purchase.

Features:

• Expanded EEPROM functions for more component access.
• Upgraded From XP400, No Burnout Anymore.
• Extended IMMO Function on BMW, Benz and Audi etc.
• Read / Write EEPROM 445 Different Chip Types newly added support of AM29FXXX series, MB29FXXX series.
• Read / Write Engine ECU 41 Chip types added write support for SIMTEC76(AM29F800BB) Write.
• Read / Write MCU 2067 Chip types.
• Read / Write Immobilizer ECU 181 Chip types.
• Read / Write Odometer 171 Types.
• Read / Write Airbags 5 Types.

XP400 Pro Adds Support For Following Chips:

• EEPROM-->>AMD-->>AM29FXXX series chip.
• EEPROM-->> FUJITSU-->> MB29FXXX series chip.
• EEPROM-->> ST-->> M29FXXX series chip.
• Engine control module-->> ST-->> M29FXXX series chip.
• IMMO-->> BENZ-->> ESL_W209_W906(Motorola) read / write / erase function.
• IMMO-->> BMW-->>EWS3 module read/write function.
• REMOTE_RENEW (renew key) -->> NEC-->> V51 and V5 chip read / write / erase.

XP400 Pro Specifications:

• Operating Temperature: -10 ~ 70 (14 ~ 158)
• Storage Temperature: -20 ~ 85 (-4 ~ 185)
• Port Type: B-USB, DB26, DC12.
• Input Voltage: 5 VDC, 12VDC.
• Operating Current: < 500 mA.
• Maximum Consumption: 2.5 W.

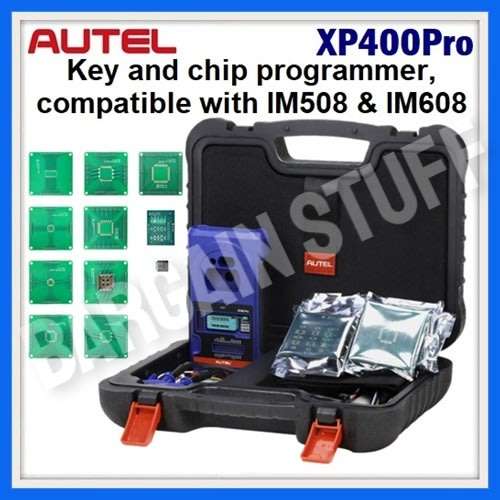

Package List:

• XP400 Pro Main Unit.
• 1 x APB129 EEPROM Adapter.
• 1 x APA002 EEPROM Socket.
• 1 x APB125 Mercedes Infrared Collector.
• 1 x APB103 MCU_PLCC52 Adapter.
• 1 x APB104 MCU_FQFP64 Adapter.
• 1 x APB105 MCU_FQFP80 Adapter.
• 1 x APB106 MCU_FQFP112 Adapter.
• 1 x APB107 MCU_FQFP144 Adapter.
• 1 x APB108 MCU_FQFP176 Adapter.
• 1 x APB109 MCU_FQFP32 Adapter.
• 1 x APB110 MCU_FQFP48 Adapter.
• 1 x APB111 MCU_SO28 Adapter.
• 1 x APA101 Spare Signal Cable.
• 1 x APC101 USB Cable (Standard USB Type B USB)
• 1 x APA103 EEPROM Clamp.
• 1 x APA107 ECU Cable.
• 1 x APA108 MCU Cable.
• 1 x APA109 MC9S12 Cable.
• 1 x Dupont Line.
