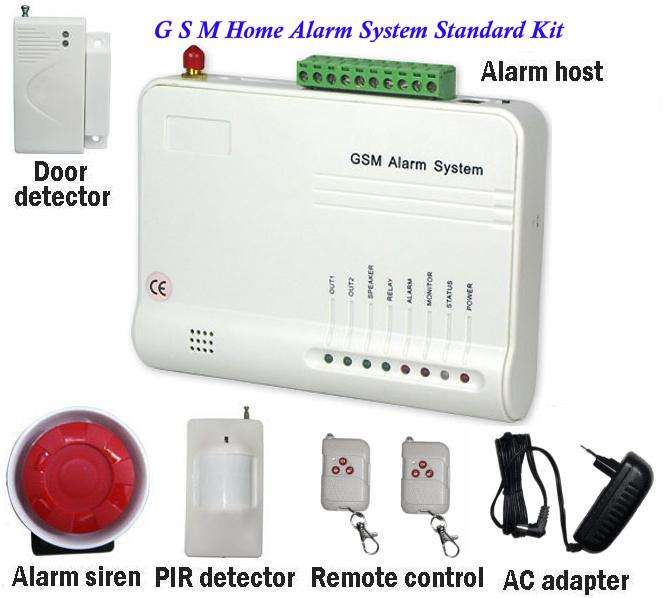

AUTO-DIAL /ANTI-THEFT GSM ALARM SYSTEM FOR HOME SECURITY

Wireless installation, Easy-to-operated. International famous chipset 2262 coding, advanced beaverboard, automatization producing pipelining, so the control panel is so stable with strong compatible function. It is integrated with home, business store, public plaza security and so on intelligent home function. Widely used for signal home, residential area, school, factory, electric power Dept. Oil Dept, railway Dept. City planning Dept. Police Dept. All industrial security  and protection system.


User Manual X1.

1.6 wireless defend zones and 6 wired defend zones

2. Long-distance monitoring and alarm protected zone recheck

3.8LED to indicate the alarm zone.

4. To program 6 phone number

5. Multi-armed mode: Delay armed, armed without auto-dial up

6. Prompt sound for each alarm

7. With keyboard to program each function

. Wireless frequency: Two option: 433MHz or 315MHz

2. An adaptor: Option: Input electricity from 110 ACV ~240 AC, customized.

Adaptor choosing: Two round pins, two flat pins, three pins customized

3. Wireless receiving distance in open place: >250m

(depend on the surrounding environment and wireless interference)

4. Standby current: < 15mA

5. Alarm volume: Internal: 95dB, external siren: 110~120 dB

6. One control panel with one internal siren: Working voltage: +9 DCV, 200mA.

7. Two wireless remote controllers: Four button: Disarm/arm/panic/PIR detector

8. One wireless magnetic door sensor: 12 DCV

9. One wireless infrared detector: 10m*120 degree horizontal+60degree vertical
